Shphe Plate Heat Exchanger / Evaporator

1. Introduction of Plate Heat Exchanger Why plate heat exchanger?High heat transfer coefficientCompact structure with less foot printConvenient for maintenance and cleaningLow fouling factorSmall end-approach temperature Light weightParameters:

Technical Feature

Shanghai, China

1000 Pieces/Year

L/C, T/T

CE, ISO, ASME U Stamp

Heater, Cooler, Vaporizer, Condenser

Regenerative Heat Exchanger

Send Standard Inquiry

Add Inquiry List

$10~100

PRIMARY PARAMETERS

Model NO.

F10

Trademark

SHPHE

Transport Package

Wood

Specification

DN32-DN500

Origin

China

HS Code

84195000

DETAIL DESCRIPTION

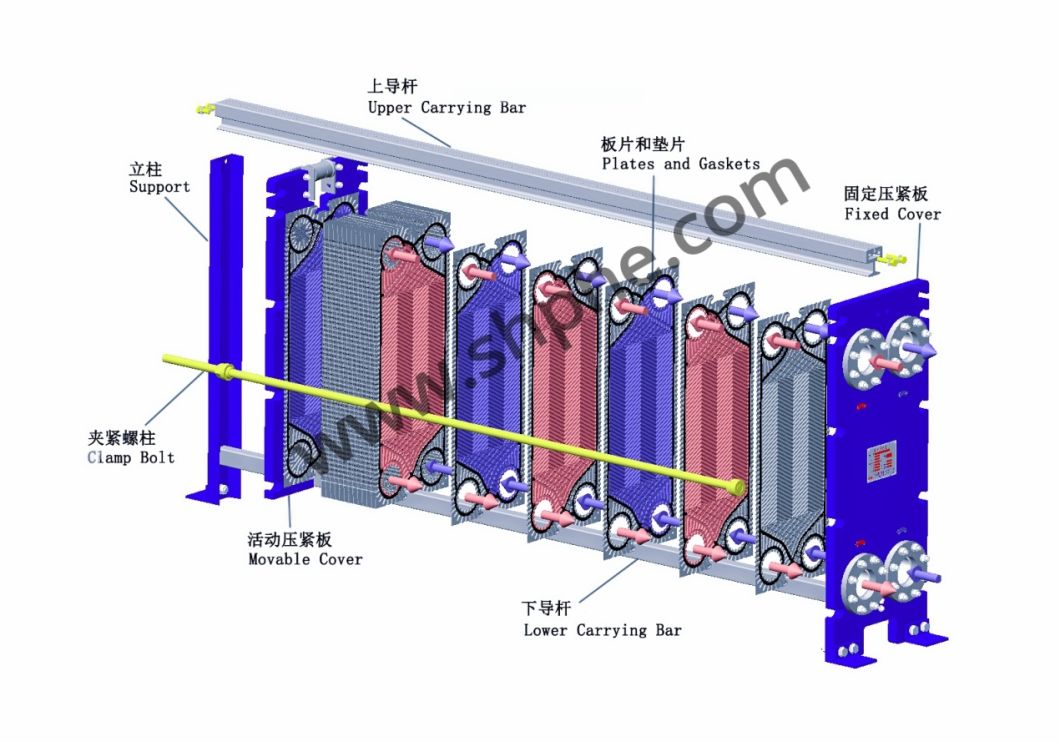

1. Introduction of Plate Heat Exchanger

Why plate heat exchanger?

High heat transfer coefficient
Compact structure with less foot print
Convenient for maintenance and cleaning
Low fouling factor
Small end-approach temperature
Light weight

Parameters:

Nominal dia.	DN32~DN500mm
Plate thickness	0.4~1.0mm
Max. design pressure	3.6MPa
Max. design temp.	210ºC
Max. surface area	4000m2

Plate Material:
Austenitic stainless steel (SS304, SS304L, SS316L,254SMO etc.)
Titanium and titanium alloy ( Ti GR.1)
Nickel and nickel alloy (Ni6, Ni201)
Duplex steel

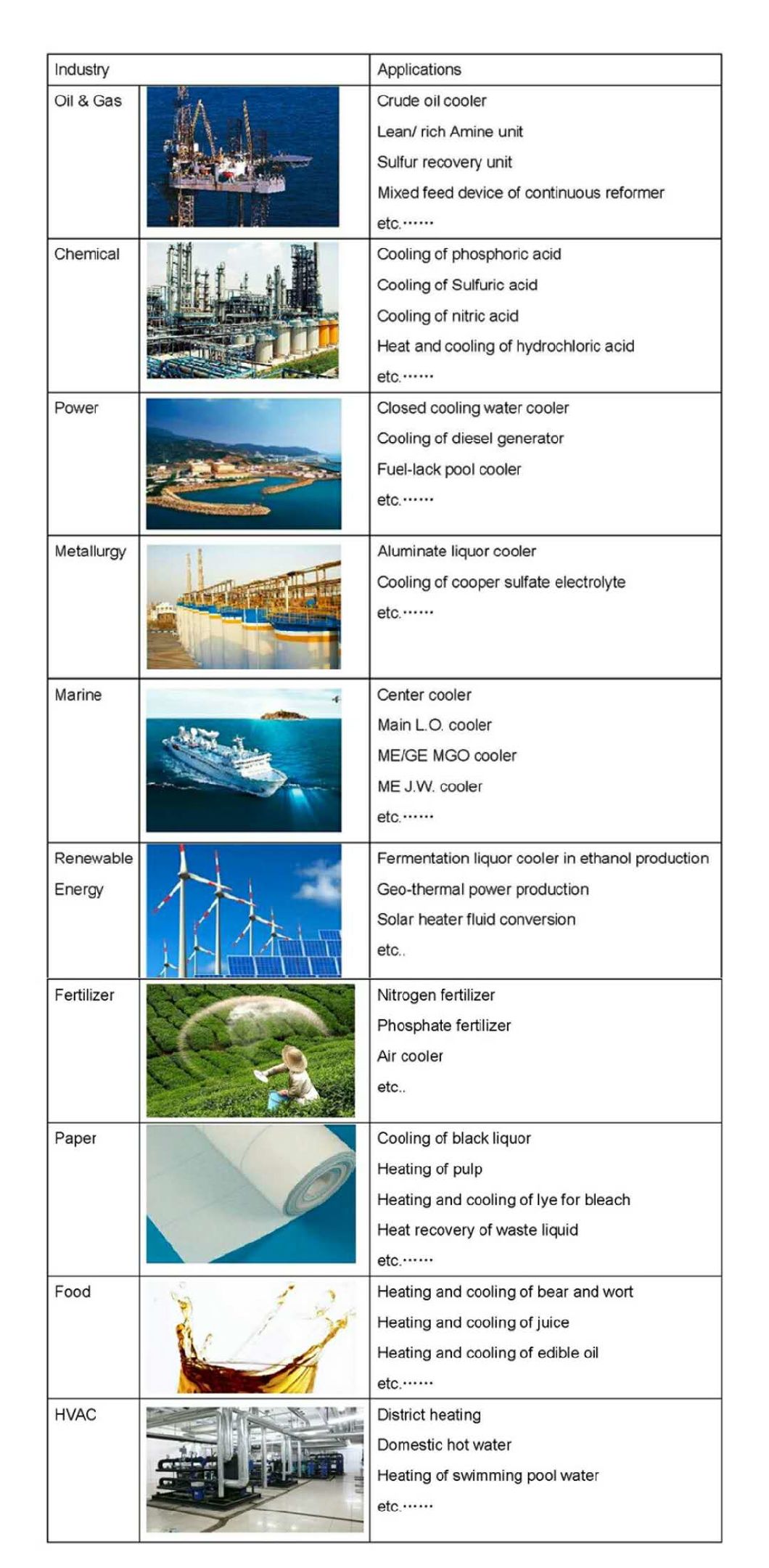

2. Application
