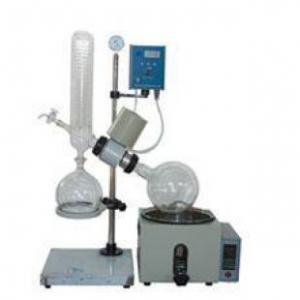

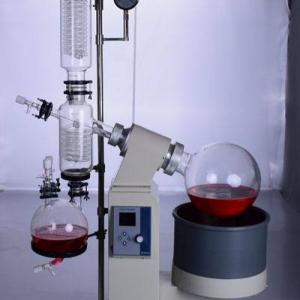

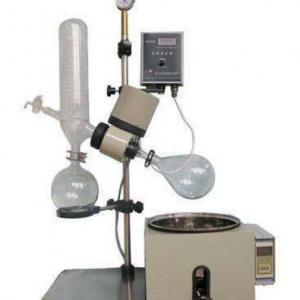

Laboratory Plate Vacuum Rotary Evaporator

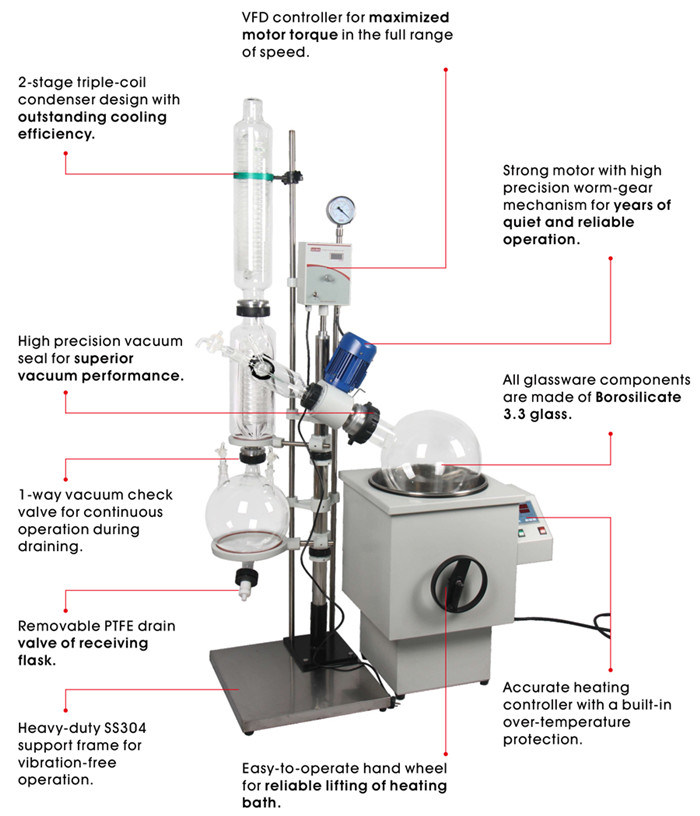

1.Feature of the Laboratory Plate Vacuum Rotary Evaporator (50L, 20L, 10L):
- Built-in vacuum controller, High vacuum performance
- PTFE sealing
- Anti-explosion desigh to secure the experiment
- Flexibly adjust the ascending or descending of Water/ Oil bath by hand lift
- Digital display and control, easy to read and set
- Easy assembling design: to be assembled within 30 minutes.
- Double layer cooling coils for improved condenser performance.
- High quality borosilicate glass 3.3 with excellent physical and chemical properties
- Large selection of customized volumes from 0.25L to 50L
- Cost-saving modular design and can be customized by clients' requirements
♦We are professional lab equipment manufacturer and we can produce customized anti-explosion rotary evaporator as per clients' required specification & quantity and deliver goods within required production time.
2.General Specification of the the EXRE series
Laboratory Plate Vacuum Rotary Evaporator(50L, 20L, 10L):
Model | YRE-2010 | YRE-2020 | YRE-2050 |
Rotary flask(L) | 10 | 20 | 50 |
Collection flask(L) | 5 | 10 | 20 |
Motor power(W) | 120 | 120 | 180 |
Rotating speed (rpm) | 0~110 | ||
Evaporating Rate (L/hr) | ›6 | ›10 | ›18 |
Water bath power(kw) | 3 | 4 | 4 |
Power supply | 220V 50HZ | ||
Sealing | PTFE sealing | ||
Bath temp control range(°C) | RT-180 | RT-99 | |
Vacuum degree | -0.098(20 mbar) |

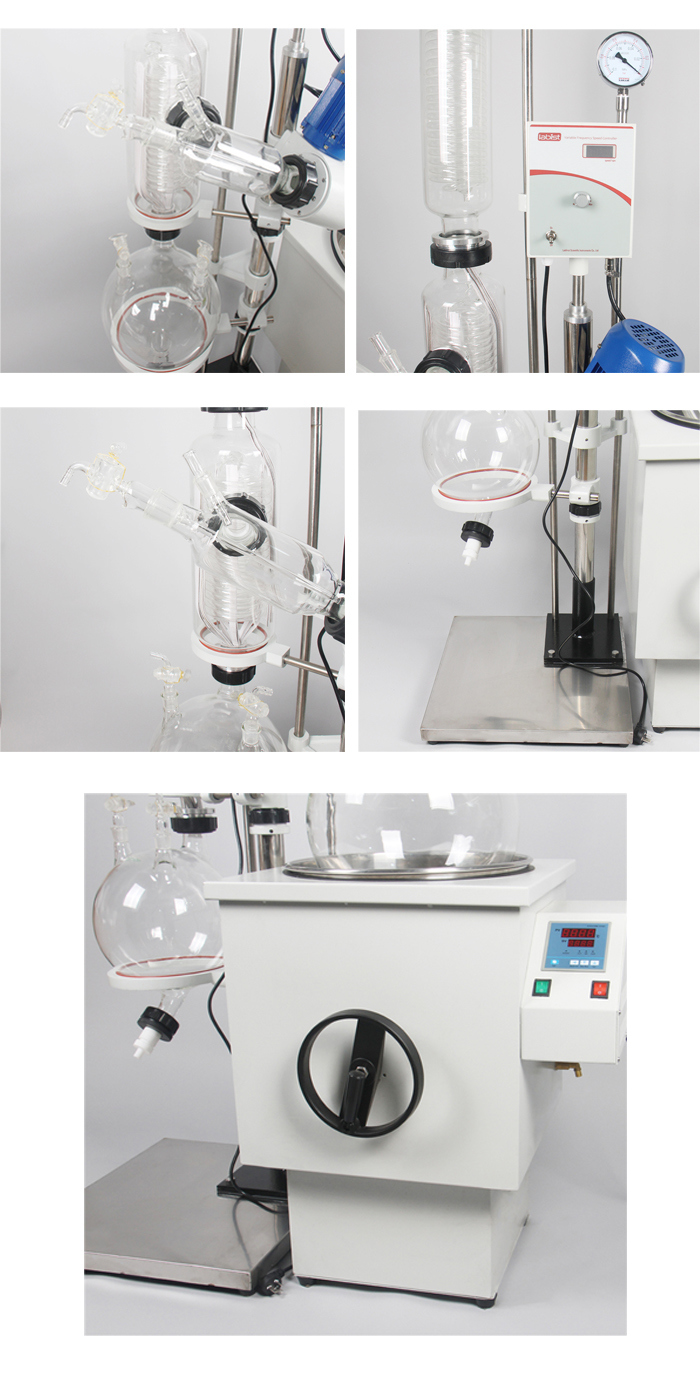

3.Details Display Packing
