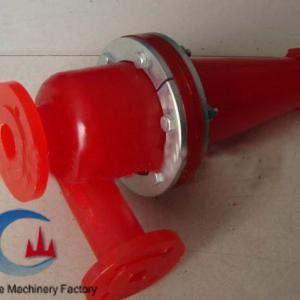

Hydro cyclone mining processing equipment:
1) corrosion resistant hydro cyclone;
2) multi-functional mining processing equipment;
3) for desliming, dewatering, classification, desanding, etc.

Mining processing equipment hydro cyclone separator:
This hydro cyclone is widely used in separating of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries. Could be get a goold result as the ore dressing equipment for chrome washing plant. It is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size.

In closed circuit grinding system, it features high classification efficiency and fine over fall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader.

It benefits for enhancing grader utilizing coefficient. Choose proper specification and mode of cyclone according to grinding processing capacity, over fall fineness and sedimentation concentration.

Features of mining processing equipment hydro cyclone:

The mining processing equipment hydro cyclone device has features of simple structure, long service life, multi-functional application, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading, desander and de-sliming equipment of fine -particle material

Hydro cyclone general applications:

Mineral Classification

Solids Concentration

Dewatering

Desliming

Desanding

Sludge Clarification

Specif ication	Canister Interior Diameter   mm	Cone Angle    O	Overfall Pipe Dia   mm	Bottom Exit Dia    mm	Max. Perm itted Fee ding Granu larity  mm	Feeding Pressure    Mpa	Processing Capacity  m3/h	Classi fication Granu larity  um	Overall Siz	Mach ine Weig ht  Kg
L  mm	W  mm	H  mm
FX660	660	20	180~240	80~150	16	0.03-0.2	250~350	74-220	1250	890	2650	995
FX500	500	20	130~200	35~100	10	0.03~0.3	140~220	74~200	850	790	2050	495
15	74~150	850	790	2380	540
FX350	350	20	80~120	30~70	6	0.04~0.3	60~100	50~150	775	605	1765	182
15	50~120	775	605	2115	230
FX300	300	20	65~115	20~50	5	0.04~0.3	45~85	50~150	665	585	1310	108
15	40~100	665	585	1505	169
FX250	250	20	60~100	16~45	3	0.06~0.35	40~60	40~100	540	480	1180	72
15	40~100	540	480	1220	77
10	30~100	540	480	1380	83
FX200	200	20	40~65	16~32	2	0.06~0.35	25~40	40~100	435	360	1050	60
15	30~100	435	360	1115	64
10	30~100	435	360	1205	69
FX150	150	20	30~45	8~22	1.5	0.06~0.35	11~20	30~74	280	295	690	20
15	30~74	280	295	900	22
8	30~74	280	295	1270	60
FX125	125	17	25~40	8~18	1	0.06~0.35	8~15	20~100	210	185	620	10
8	20~74	250	240	985	12
FX100	100	20	20~40	8~18	1	0.06~0.35	5~12	20~100	260	210	525	8
15	20~100	268	215	720	13
8	20~100	268	215	1000	21
FX75	75	15	15~22	6~12	0.6	0.1~0.4	2~5	20~74	240	230	465	4.2
6	5~40	240	230	800	7
FX50	50	15	11~16	3~8	0.3	0.1~0.4	1~2	10~74	160	155	350	2
6	5~30	160	155	590	2.5
