Product Description
Techinical datas:
1. The working air pressure: 3.0mpa, hydraulic pressure: 6.5mpa
2. Suitable medium: Ammonia.fluoride
3.Suitable temperature: -50°c+150°c
4.Cast steel valves are used in ammonia and fluoride referigeration compressor widely.
5. They have passed pressure pipe test. steadily performance can be guaranteed.
| Model | A | ΦB | ΦC | DN | L | L1 |
| J7G20 | 155 | Φ25 | Φ100 | Φ20 | 110 | 45 |
| J7G32 | 178 | Φ38 | Φ120 | Φ30 | 160 | 70 |
| J7G40 | 233 | Φ45 | Φ120 | Φ40 | 180 | 70 |
| J7G50 | 257 | Φ57 | Φ140 | Φ50 | 210 | 80 |
| J7G65 | 273 | Φ76 | Φ160 | Φ65 | 265 | 100 |
| J7G80 | 327 | Φ89 | Φ200 | Φ80 | 320 | 125 |
| J7G100 | 378 | Φ108 | Φ220 | Φ100 | 360 | 150 |
| J7G125 | 400 | Φ133 | Φ250 | Φ125 | 400 | 175 |
| J7G150 | 412 | Φ159 | Φ250 | Φ150 | 500 | 220 |
| J7G200 | 483 | Φ219 | Φ320 | Φ200 | 580 | 240 |

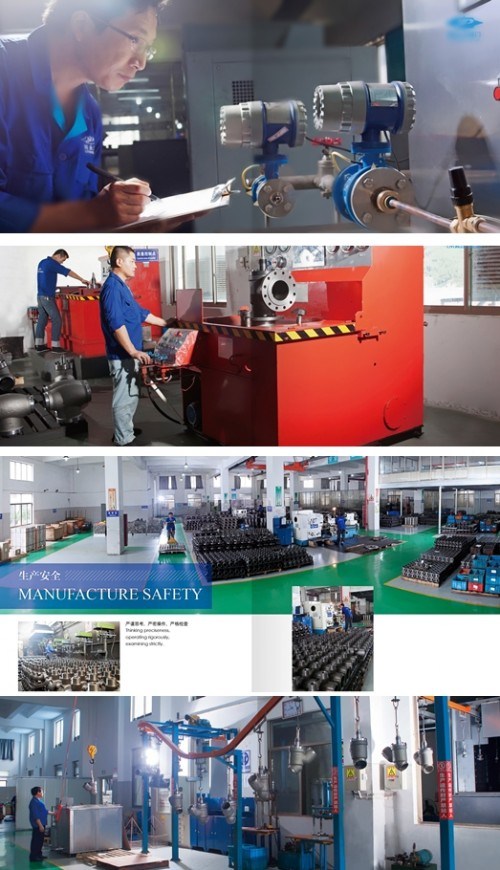

Producing line &Testing device

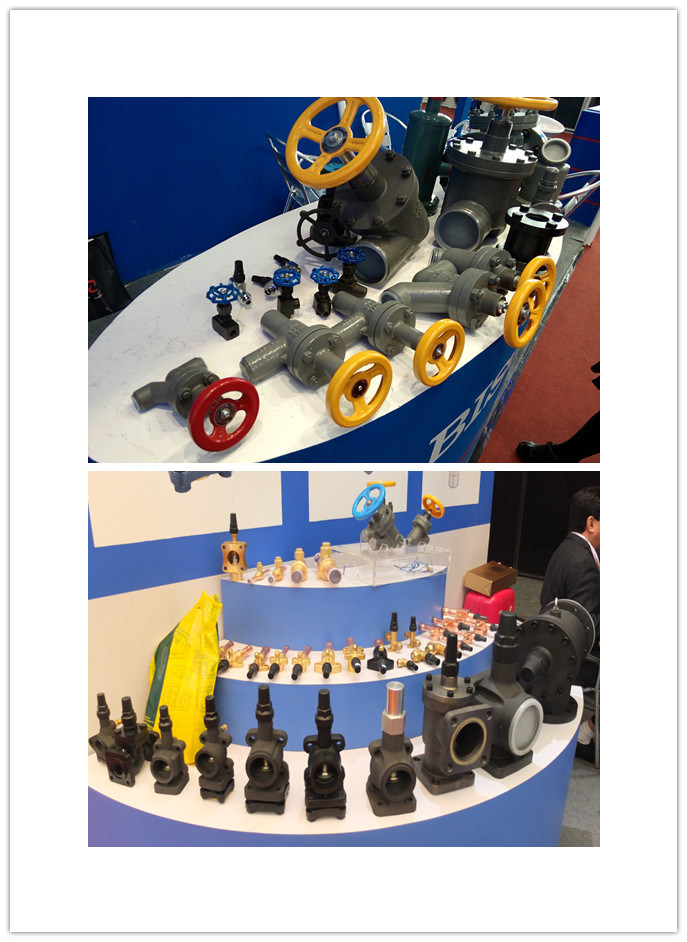

Other type valves !
FAQ:
Q: What is your MOQ
A: 5PCS
Q: Are you a factory?
A: Yes, we are a factory
Q: How about your delivery time?
A: Lots of in store, about 1-3 working days
Q: Is there any discount?
A: Surely, different qty with different discount
Q: Shipment
T/T DHL UPS Fedex
By Sea By Air
Q: Payment
Western Union T/T L/C
