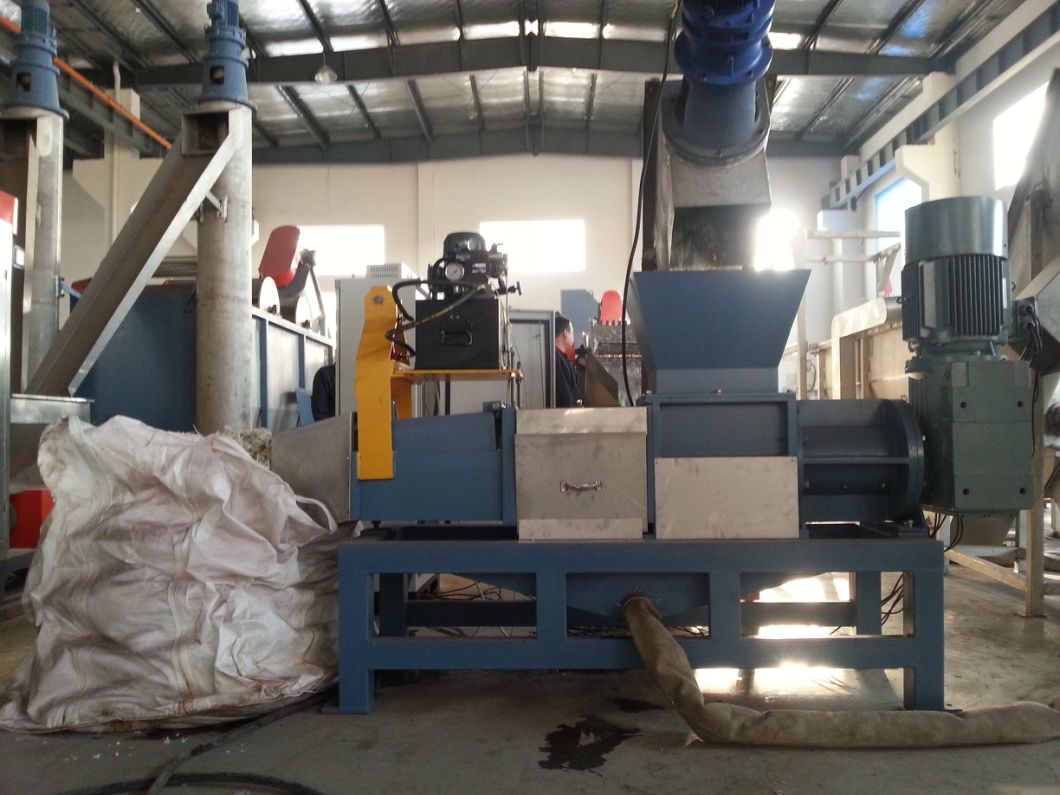

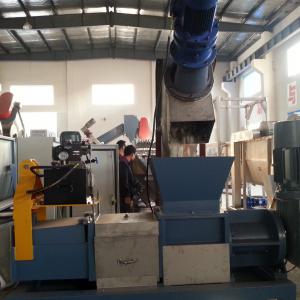

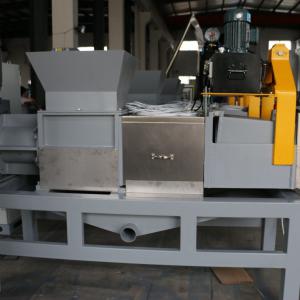

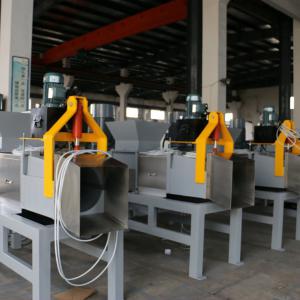

PE/PP Plastic Film Squeezer Machine

PE/PP Plastic Film Squeezer Machine Product DescriptionFeatures:This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing dewatering design;It is equipped with a electric control cabinet, feeder mout

Technical Feature

  • Shanghai, China
  • 500-1000kg/H
  • L/C, T/T
  • Film
  • PE PP
  • Single-Screw
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~25

PRIMARY PARAMETERS

Model NO.
500, 1000
Mositure
5%
Color
Customized
Application
Plastic Film
Warranty
12 Months
Screw Material
40 Cr
Trademark
Lianguan
Transport Package
Standard Export Package
Specification
500, 1000
Origin
China
HS Code
84778000

DETAIL DESCRIPTION

PE/PP Plastic Film Squeezer Machine

Product Description

Features:
    1. This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing dewatering design;
    2. It is equipped with a electric control cabinet, feeder mouth is easy to control the drying effect;

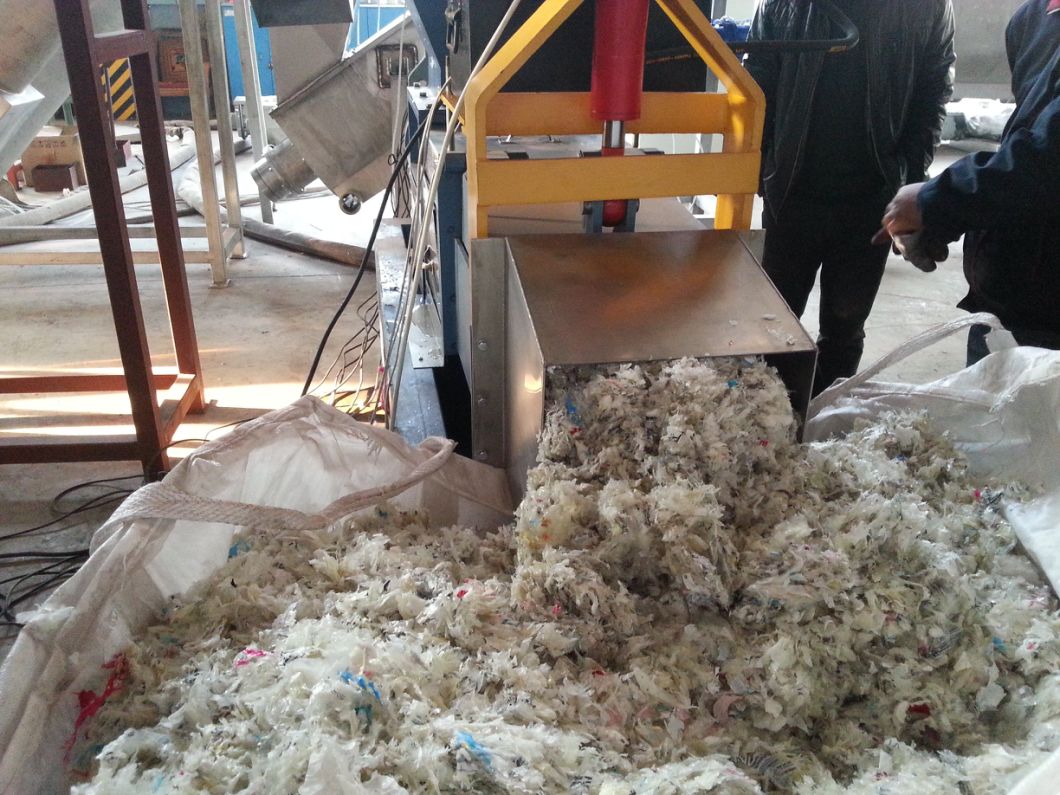

    3. This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying problem in the past.
    4. Instead of the dewatering machine, hot blower in the recycling line.
    5. Easy to operate, drying effect can reach to 92%-93%, if add one step hot air pipe drying system, final product dry could be more than 95%.


Main Technical Parameter:
Motor power           : 18.5kw
Max capacity           : 500-700kg/h
Screw diameter         :300mm
Hydraulic station power  : 1.5kw
Remark:The machine has less motor, high working efficiency, which could save your power cost.

Model5001000
 DIMENSION2450X800X1800MM2450X800X1800MM
 INLET SIZE700X670MM700X670MM
 MOTOR POWER18.5KW22KW
 ROTATED SPEED42R/MIN42R/MIN
 CAPACITY500-700KG/H800-1000KG/H
 DRAINAGE METHODDRAIN AT THE BOTTOM
 MATERIAL OUTLETFREE FALLING
 HYDRAULIC STATION MOTOR1.5-2.2KW


PE/PP Plastic Film Squeezer Machine
PE/PP Plastic Film Squeezer Machine
PE/PP Plastic Film Squeezer Machine
PE/PP Plastic Film Squeezer Machine
PE/PP Plastic Film Squeezer Machine
PE/PP Plastic Film Squeezer Machine
