Production introduction

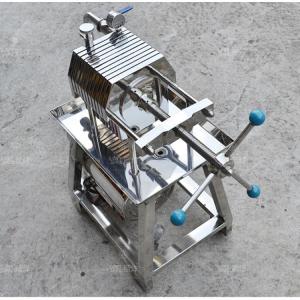

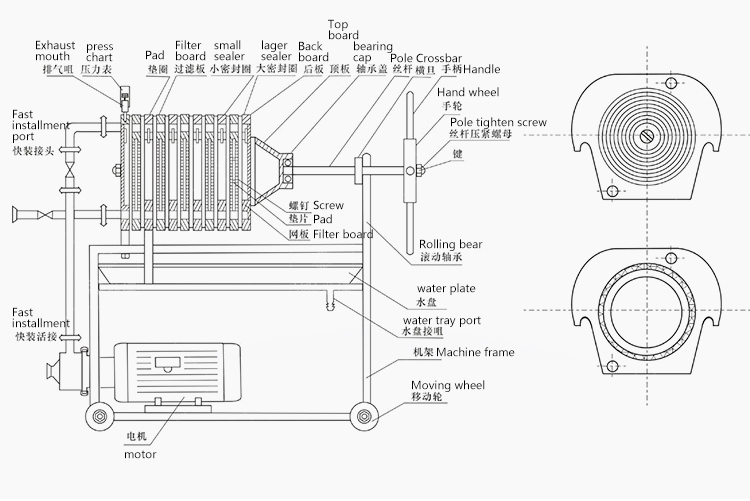

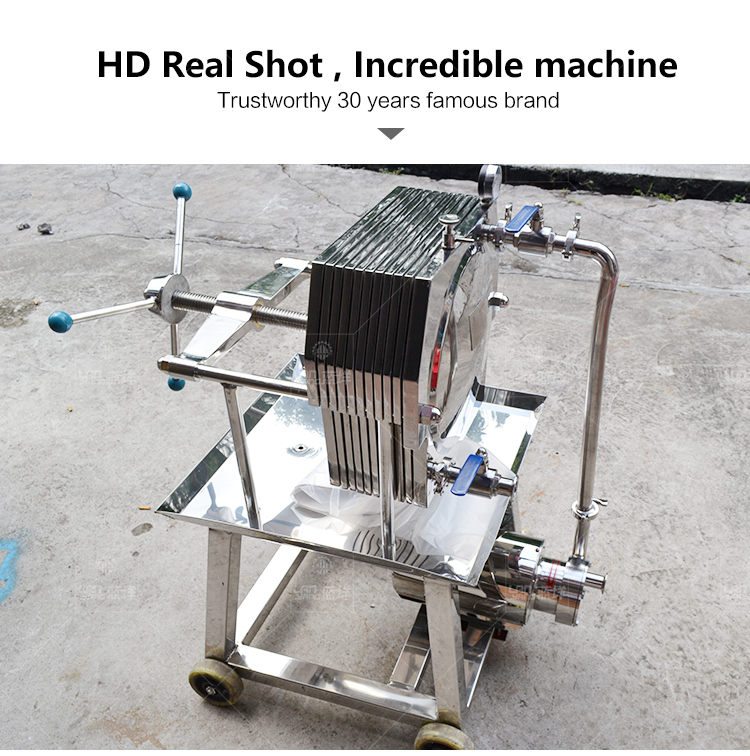

The equipment is multi-layer frame filter, which is applicable to the process operation with the requirement of fine filtration and semi-fine filtration such as purification ,sterilization and defecation with sealed filtration in the liquid with low viscosity and little slagging content under the concentration of 50%,by directly adopting microporous filtration film, it can realize the sterile filtration without passing the microporous film.

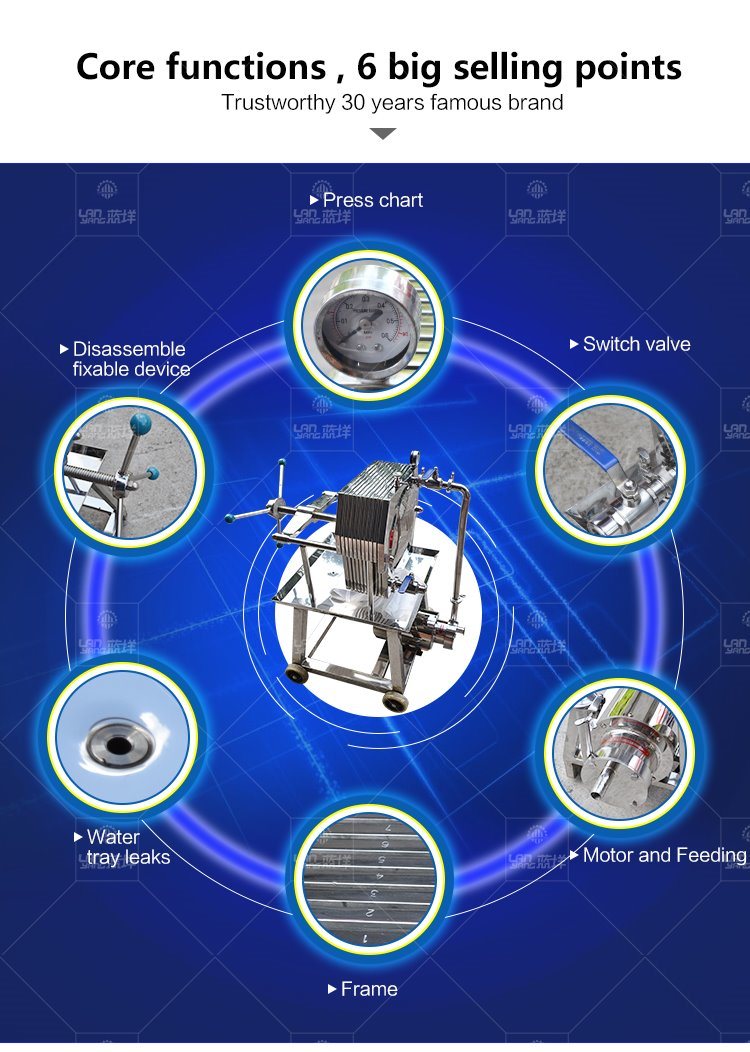

Features
1) The machine is made of 1Crl8Ni 9Ti or 316L high quality stainless steel, corrosion resistant and durable.
2) The filter plate due to use of a screw structure, according to the filtrate of the different production processes (early filter, semi-fine filter, fine filter) requires the replacement of different filter (direct selection of microporous membrane can not go through the microporous membrane Can achieve the purpose of sterile filtration). Users can also according to the size of the production flow, the corresponding reduction or increase filter plate.
3) All parts of sealed parts of the installation of the ring (milky white silicone rubber seals, non-toxic high temperature), no leakage, good sealing performance.
4) The machine work for the pressurized closed filter, liquid material without loss. Liquid clarity is good, in addition to bacteria (the use of medium-speed filter paper and microporous membrane sterilization effect is particularly good).
5)The machine can also be based on user needs, specially equipped with automatic return channel, after the pump stops rotating, open the return valve (both deflation function) all the automatic discharge of sediment discharge. In the filter high viscosity liquid, can make the liquid flow unimpeded, can make a variety of impurities automatically reflux discharge. At the same time with the water from the backhammer back to the filter for temporary cleaning and for the convenience.

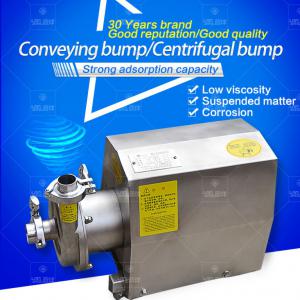

6)The pump and the input tube part of the connection by the three fold-type ring, a solid seal, easy to unload cleaning
Techical parameters
| Type | Layers | Filtration Area(m2) | Filter Material Size (mm) | Membrane Pore Size (um) | Filtration Pressure(Mpa) | Water Flow(T/h) | Motor (Kw) | Dimension(mm) |
| WBG-100 | 10 | 0.078 | Φ100 | 0.1~50 | 0.15 | 0.8 | 0.55 | 600×300×600 |
| WBG-150 | 10 | 0.170 | Φ150 | 0.1~50 | 0.15 | 1.5 | 0.75 | 650×380×650 |
| WBG -200 | 10 | 0.314 | Φ200 | 0.1~50 | 0.15 | 2.0 | 1.1 | 650×400×700 |
| WBG -300 | 10 | 0.700 | Φ300 | 0.1~50 | 0.15 | 4.0 | 1.1 | 700×500×800 |
| WBG -400 | 10 | 1.250 | Φ400 | 0.1~50 | 0.15 | 6.0 | 1.1 | 900×600×1000 |
| WBG -400 | 16 | 2.000 | Φ400 | 0.1~50 | 0.15 | 9.0 | 1.5 | 1000×600×1000 |
| WBG -400 | 20 | 2.500 | Φ400 | 0.1~50 | 0.2 | 10.0 | 1.5 | 1100×600×1000 |
| WBG -400 | 32 | 4.000 | Φ400 | 0.1~50 | 0.3 | 13.0 | 2.2 | 1320×600×1000 |
| WBG -500 | 12 | 2.000 | Φ500 | 0.1~50 | 0.3 | 8 | 1.5 | 1100×720×1200 |
| WBG -500 | 16 | 3.000 | Φ500 | 0.1~50 | 0.3 | 13 | 2.2 | 1350×720×1200 |
| WBG -500 | 22 | 4.000 | Φ500 | 0.1~50 | 0.3 | 16 | 2.2 | 1350×600×1200 |
| WBG -500 | 26 | 5.000 | Φ500 | 0.1~50 | 0.3 | 20 | 3.0 | 1350×720×1200 |
| Note:flow plate frame filter can be customized |
Packaging:
Packed by wooden case usually.
According to customer's requirement, other packaging is available as well.
Shipping:
European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days
