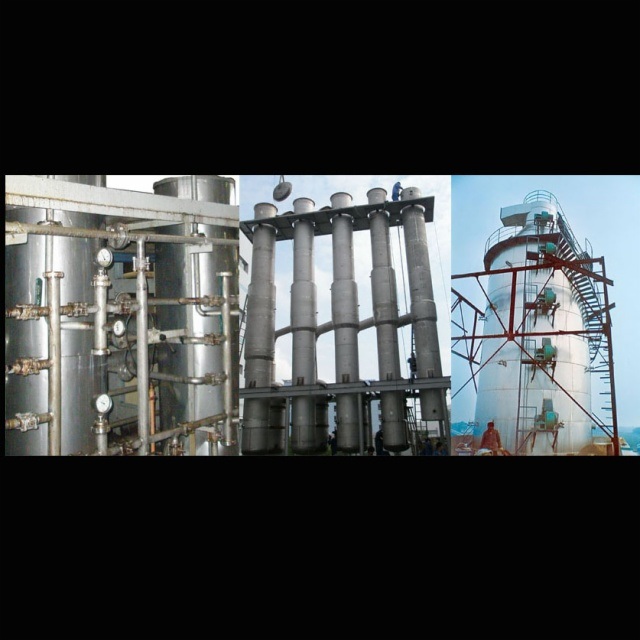

Pressure Spray Dryer for liquid material like coffee, milk
The material is sprayed into exiguity fog by nozzle on the top of tower.
Follow the heat wind, the material is past, economizing energy, high effect, and wide used in food, dyestuff, chemical industry.
Applications:
Food Industry: Egg white food and plant, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, sugar, corn syrup, corn starch, glucose, pectin, malt, Medicine: Traditional
Chinese medicine extract, ointment, yeast vitamin, antibiotic amylase, lipase.
Plastics and resin: Ointment, yeast, vitamin, antibiotics and resin; Formaldehyde resin, polythene.
Detergent: Common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid.
Chemical industry: Pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon.
Ceramic: Aluminum oxide, ceramic tile material, magnesium oxide, talcum.
The material is sprayed into exiguity fog by nozzle on the top of tower.
Follow the heat wind, the material is past, economizing energy, high effect, and wide used in food, dyestuff, chemical industry.
Applications:
Food Industry: Egg white food and plant, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, sugar, corn syrup, corn starch, glucose, pectin, malt, Medicine: Traditional
Chinese medicine extract, ointment, yeast vitamin, antibiotic amylase, lipase.
Plastics and resin: Ointment, yeast, vitamin, antibiotics and resin; Formaldehyde resin, polythene.
Detergent: Common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid.
Chemical industry: Pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon.
Ceramic: Aluminum oxide, ceramic tile material, magnesium oxide, talcum.
| spec | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Water evaporation capacity Kg/h | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| Overall dimension mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| High-pressure pump pressure Mpa | 2-10 | ||||||
| Power Kw | 8.5 | 14 | 22 | 24 | 30 | 82 | 30 |
| Inlet air temperature | 300-350 | ||||||
| product water contents % | less than 5 percent, and 5 percent can be achieved. | ||||||
| collection rate % | >97 | ||||||
| electric heater Kw | 75 | 120 | 150 | When the temperature is lower then 200, the parameters should be calculated according to the practical condition. | |||
| electricity + steam Mpa+Kw | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| hot air furnace Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
