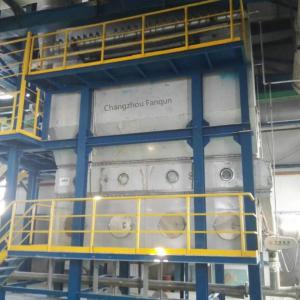

About XF Fluid Bed
XF fluid bed system consists of air filter, heater, fluid bed, feeder, cyclone, bag filter, high pressure centrifuge fan, operation table and so on. Based on different requirement of different products, either cyclone or bag filter or both could be chosen.
Principle of work
Products are fed into fluidized-bed drier through feeder. Fresh air after filtering and heating is conveyed to the bottom of fluid bed by fan and contacts with solid raw products on distributing plate, There fluidizing and heating exchange are conducted between air and products. Dry products are discharged from outlet to cyclone and bag filter from the top of fluid bed.
Heat source
Steam, electricity or hot air furnace can be used.
Applications
- pharmaceutical product
- chemical
- food
- pressing tablet
- resin
- citric acid
- maize embryo
- animal food
Flow Chart
Note: customized design is available
About Fanqun
Fanqun Drying Equipment Co.,Ltd, found in 1991 is dedicated to design and manufacture the highest quality Drying Equipments for industries such as pharmaceutical, chemical, pigments, automobile and food industry etc. ,.
We have a staff of more than 400 qualified people work in a plant area of 60,000sq.m in the National Environmental Industrial Park of Changzhou city, which is only 50 minutes away from Shanghai by fast train. With marketing concept of on-going innovation and development, Fanqun has had its sales market in more than 20 countries and districts.
Fanqun has developed over the years to become a famous trademark in the field. Over the 20 years, we got such certificates as ISO9001, CE, HSE, ISO14001, GB/T28001 "Credit Contract AAA Grade", "Manufacture License of Pressure Vessel of China" and "Famous trademark of Jiangsu Province" etc.
Fanqun can fall back on traditional craftsmanship procedures as well as on modern technologies and production methods with its two centers, one for drying technology and the other for engineering. As always, we want to win the customer's confidence through absolute reliability and a high degree of performance. Fanqun has had good cooperation with international companies such as, P&G, DSM, BASF, Huntsman, Umicore, Englehard, Solvay, Evonik, Ensysta, Roche etc, to name just a few.
XF fluid bed system consists of air filter, heater, fluid bed, feeder, cyclone, bag filter, high pressure centrifuge fan, operation table and so on. Based on different requirement of different products, either cyclone or bag filter or both could be chosen.
Principle of work
Products are fed into fluidized-bed drier through feeder. Fresh air after filtering and heating is conveyed to the bottom of fluid bed by fan and contacts with solid raw products on distributing plate, There fluidizing and heating exchange are conducted between air and products. Dry products are discharged from outlet to cyclone and bag filter from the top of fluid bed.
Heat source
Steam, electricity or hot air furnace can be used.
Applications
- pharmaceutical product
- chemical
- food
- pressing tablet
- resin
- citric acid
- maize embryo
- animal food
Flow Chart
| Model | Bed Area (m2) | Fan Power (kw) | Drying Capacity (kg/hr) | Product Temp. (°C) |
| XF-20 | 0.5 | 11 | 20-25 | 40-60 |
| XF-30 | 1.0 | 18.5 | 30-45 | 40-60 |
| XF-50 | 2.0 | 30 | 55-90 | 40-60 |
| XF-150 | 6.0 | 67 | 150-300 | 40-60 |
Note: customized design is available
About Fanqun
Fanqun Drying Equipment Co.,Ltd, found in 1991 is dedicated to design and manufacture the highest quality Drying Equipments for industries such as pharmaceutical, chemical, pigments, automobile and food industry etc. ,.
We have a staff of more than 400 qualified people work in a plant area of 60,000sq.m in the National Environmental Industrial Park of Changzhou city, which is only 50 minutes away from Shanghai by fast train. With marketing concept of on-going innovation and development, Fanqun has had its sales market in more than 20 countries and districts.
Fanqun has developed over the years to become a famous trademark in the field. Over the 20 years, we got such certificates as ISO9001, CE, HSE, ISO14001, GB/T28001 "Credit Contract AAA Grade", "Manufacture License of Pressure Vessel of China" and "Famous trademark of Jiangsu Province" etc.
Fanqun can fall back on traditional craftsmanship procedures as well as on modern technologies and production methods with its two centers, one for drying technology and the other for engineering. As always, we want to win the customer's confidence through absolute reliability and a high degree of performance. Fanqun has had good cooperation with international companies such as, P&G, DSM, BASF, Huntsman, Umicore, Englehard, Solvay, Evonik, Ensysta, Roche etc, to name just a few.
