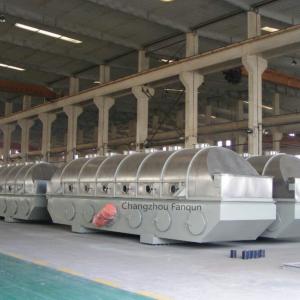

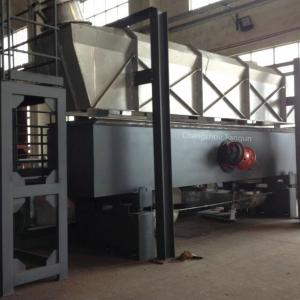

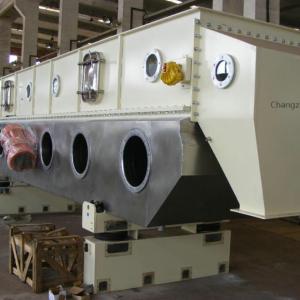

About Vibration Fluid Bed Dryer/Cooler
The vibration of fluid bed drier is caused by vibrating motor. Materials move forward under certain vibration force and contact with hot air input from the bottom of drier.
Advantages of FBD/FBC
- Suitable for drying, cooling and humidification of products
- High drying efficiency and good energy-saving. It can save more than 30% energy than a normal drier.
- Less surface damage of materials and is capable of drying frangible materials. Working effect will not be affected even the granule is irregular.
- Good adjustability and wide scope of application. The thickness of material layer, move speed in chamber and the change of total amplitude can all be step-less regulated.
- Uniform and stable fluidizing, no dead angle and broken out, all drying, cooling, humidification products are uniform.
- The vibration source is a vibration motor, it has stable running, convenient maintenance, low noise and long life.
- Fully enclosed working status, cleaning environment.
Application
- pressing tablet and granule
- boric acid
- salt
- maleic acid
- edible sugar
- grains
- beans
- seeds
- mineral product
- sand
Draft of Vibration Fluid Bed/Cooler
Technical Parameter
About Fanqun
Fanqun Drying Equipment Co.,Ltd, found in 1991 is dedicated to design and manufacture the highest quality Drying Equipments for industries such as pharmaceutical, chemical, pigments, automobile and food industry etc. ,.
We have a staff of more than 400 qualified people work in a plant area of 60,000sq.m in the National Environmental Industrial Park of Changzhou city, which is only 50 minutes away from Shanghai by fast train. With marketing concept of on-going innovation and development, Fanqun has had its sales market in more than 20 countries and districts.
Fanqun has developed over the years to become a famous trademark in the field. Over the 20 years, we got such certificates as ISO9001, CE, HSE, ISO14001, GB/T28001 "Credit Contract AAA Grade", "Manufacture License of Pressure Vessel of China" and "Famous trademark of Jiangsu Province" etc.
Fanqun can fall back on traditional craftsmanship procedures as well as on modern technologies and production methods with its two centers, one for drying technology and the other for engineering. As always, we want to win the customer's confidence through absolute reliability and a high degree of performance. Fanqun has had good cooperation with international companies such as, P&G, DSM, BASF, Huntsman, Umicore, Englehard, Solvay, Evonik, Ensysta, Roche etc, to name just a few.
The vibration of fluid bed drier is caused by vibrating motor. Materials move forward under certain vibration force and contact with hot air input from the bottom of drier.
Advantages of FBD/FBC
- Suitable for drying, cooling and humidification of products
- High drying efficiency and good energy-saving. It can save more than 30% energy than a normal drier.
- Less surface damage of materials and is capable of drying frangible materials. Working effect will not be affected even the granule is irregular.
- Good adjustability and wide scope of application. The thickness of material layer, move speed in chamber and the change of total amplitude can all be step-less regulated.
- Uniform and stable fluidizing, no dead angle and broken out, all drying, cooling, humidification products are uniform.
- The vibration source is a vibration motor, it has stable running, convenient maintenance, low noise and long life.
- Fully enclosed working status, cleaning environment.
Application
- pressing tablet and granule
- boric acid
- salt
- maleic acid
- edible sugar
- grains
- beans
- seeds
- mineral product
- sand
Draft of Vibration Fluid Bed/Cooler
Technical Parameter
| Model | Bed Area (m2) | Hot Air-in Temp. (°C) | Air-out Temp. (°C) | Water Evaporation (kg/hr) | Motor Power(KW) |
| ZLG4.5x0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8x2 |
| ZLG6 x 0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5x2 |
| ZLG6 x 0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2x2 |
| ZLG7.5 x 0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 3.0 x2 |
| ZLG7.5 x 1.2 | 9 | 70-140 | 40-70 | 200-260 | 3.7 x2 |
About Fanqun
Fanqun Drying Equipment Co.,Ltd, found in 1991 is dedicated to design and manufacture the highest quality Drying Equipments for industries such as pharmaceutical, chemical, pigments, automobile and food industry etc. ,.
We have a staff of more than 400 qualified people work in a plant area of 60,000sq.m in the National Environmental Industrial Park of Changzhou city, which is only 50 minutes away from Shanghai by fast train. With marketing concept of on-going innovation and development, Fanqun has had its sales market in more than 20 countries and districts.
Fanqun has developed over the years to become a famous trademark in the field. Over the 20 years, we got such certificates as ISO9001, CE, HSE, ISO14001, GB/T28001 "Credit Contract AAA Grade", "Manufacture License of Pressure Vessel of China" and "Famous trademark of Jiangsu Province" etc.
Fanqun can fall back on traditional craftsmanship procedures as well as on modern technologies and production methods with its two centers, one for drying technology and the other for engineering. As always, we want to win the customer's confidence through absolute reliability and a high degree of performance. Fanqun has had good cooperation with international companies such as, P&G, DSM, BASF, Huntsman, Umicore, Englehard, Solvay, Evonik, Ensysta, Roche etc, to name just a few.
