Basket filter

Introduction

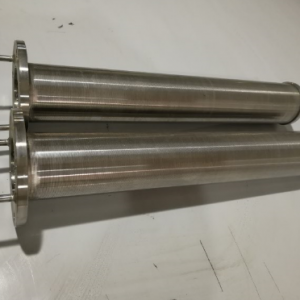

The basket filter is mainly composed of a nozzle, a cylinder, a filter basket, a flange, a flange cover and a fastener

Installed on the pipeline to remove large solid impurities in the fluid, so that the equipment (including compressors, pumps, etc.) instrument can work and operate normally, to achieve a stable process and ensure safe production.

Material, SS304, SS316L, Duplex SS

Pressure resistant, 1-30MPa

Non-standard and standard can be customized

Principle

It belongs to surface filtration. The difference and deep filtering mechanism are generally intercepted by metal mesh. The metal mesh type can be divided into wedge mesh, woven mesh, punching mesh, laser punching mesh, sintering mesh using pressure filtration principle, using pump or pipe pressure, medium Through the filter screen, impurities larger than the pore size of the filter are intercepted, and the useful medium smaller than the aperture passes.

Application

Generally applicable to applications with a small amount of impurities, generally used to protect mechanical equipment, such as compressors, mechanically sealed water pumps, together with other valuable equipment according to the type of import and export can be divided into: high in low out, bottom in bottom out, side in bottom out.
