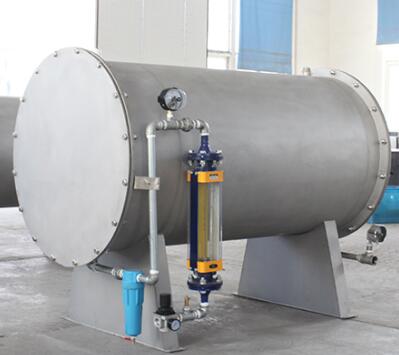

Large scale water cooled ozone generator

Technical Feature

Compact structure

Stably running

Easy operation

Safe

Send Standard Inquiry

Add Inquiry List

$20000~200000

PRIMARY PARAMETERS

Utilities type

Compressed air system

Place of origin

China

Warranty

One year

Lead time

30 days

Model	JZCF-G-2-1000	JZCF-G-2-1500	JZCF-G-2-2000	JZCF-G-2-3000	JZCF-G-2-4000	JZCF-G-2-5000	JZCF-G-2-8000	JZCF-G-2-10000
Ozone capacity(g/h)	1000	1500	2000	3000	4000	5000	8000	10000
Concentration(mg/L)	20-35	20-35	20-35	20-35	20-35	20-35	20-35	20-35
Air flow(m3/h)	30-50	45-75	60-100	90-150	120-200	150-250	240-400	300-500
Voltage(V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Cooling water(t/h)	1.5-3	2-4	3-6	4.5-9	6-12	7.5-15	12-24	15-30
Installed capacity(KVA)	20	30	40	60	80	100	160	200
Working pressure(Mpa)	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1	0.04-0.1
Inlet pressure(Mpa)	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7

Large scale water cooled ozone generator

Product name

Large scale ozone generator, large scale industry ozone generator, Large scale water cooled ozone generator

Ozone capacity: 1kg/h-10kg/h

Concentration: Air source 20-35mg/L, Oxygen source 80-150mg/L

Application: Medicine, food, industrial producing, industrial denitration, water treatment sterilization, industrial sewage treatment.
