Middle pressure pipe clamp

The series of pipe clamps is designed and manufactured for middle pressure pipes, it is mainly used for transferring middle pressure medium, such as coal mine or non-coal mine wind and water pipes, fire protection spray system, water supply system, natura

Technical Feature

  • -
  • -
  • -
  • -
  • -
  • -
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~200

PRIMARY PARAMETERS

Material
304  201  304L  316  316L  Customer's request
Standard
ASTM  AISI  GB  JIS  Customers' request
Thickness range
-
Tolerance (mm)
-
Lead time
5 days
Material brand
-
Place of original
China
Seam type
Seamless
Surface
No.1

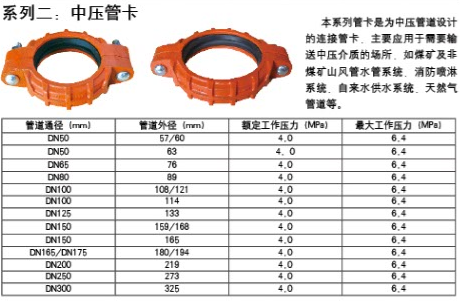

MODEL SPECIFICATIONS

Model DN50 DN50 DN65 DN80 DN100 DN100 DN125 DN150 DN150 DN165/DN175 DN200 DN250 DN300
Outer diameter(mm) 57/60 63 76 89 108/121 114 133 159/168 165 180/194 219 273 325
Working pressure(Mpa) 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0
Max. pressure(Mpa) 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4 6.4

DETAIL DESCRIPTION


Middle pressure pipe clamp
