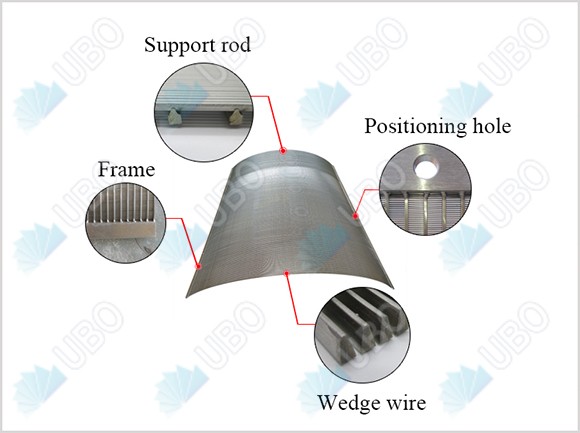

SS 304 sieve bend screen plate consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A SS 304 sieve bend screen plate has greater capacity than a flat screen due to forces exerted as material flows against the curved surface.
Application of SS 304 sieve bend screen plate
1.Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
2.Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
3.Used for fiber removal in Starch industry.
Advantages of SS 304 sieve bend screen plate
A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
1.A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
2.A uniform and efficient well development due to the continuous slot opening.
3.Offering great strength. precision, long service life.
SS 304 sieve bend screen plate | |
Material: | Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.) |
Wedge Wire (mm): | Width : 1.50 1.80 2.30 3.00 3.30 3.70 |
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 | |
Support Rod (mm): | Width : 2.30 3.00 3.30 3.70 |
Height : 2.70 3.60 4.70 5.60 6.30 | |
Width： | from 1 inch -----45 inch. |
Length: | Max 6 meters. |
Slot size | Slot size |
Radian： | 120º, 60º, 45º as your request |
