Features:

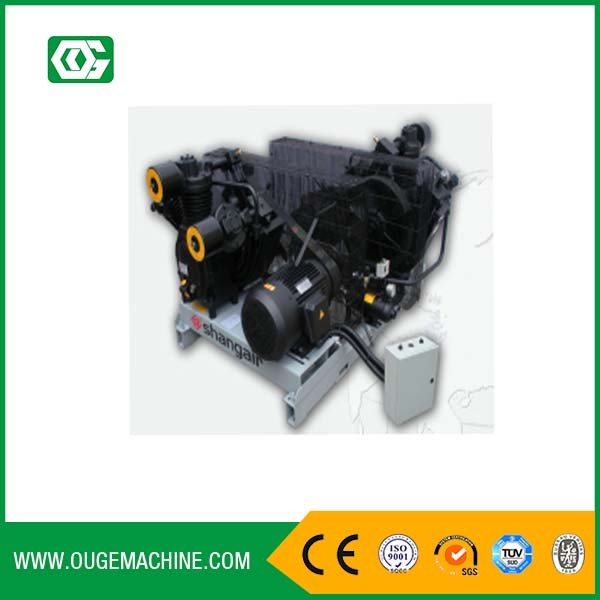

1.S type, four stage compressor, air-cooling reciprocating piston air compressor.
2.The crankshaft adopts single cantilever support structure, which feature excellent installation, detachment and maintenance. Main bearings apply precision column roller bearing, and special-made needle bearings with superior loading capacity are used on both ends of the connecting rod. No bearing bush applied to the whole machine, low friction consumption, strong ability of resisting tough conditions.
2. Shangair unique inertia moment balance design and workmanship guarantee extremely low vibration on the whole machine.
3.The inhalation unit adopts Shangair patented techniques: impedance compound suction muffler and low-side inlet disposition. Low suction temperature and noise.
4.High efficiency, energy conservation and long working life gas valve. Shangair patent technology “polygon cylindrical straight-flow valve” adopted at the first stage and second stage, highly efficient combination ring vale, which is researched and developed by Shangair after many years operation test and optimization, applied to the third stage and fourth stage.
5.Shangair particular oil controlling design has realized extremely low oil consumption.
6.Drainage system employ a masterly combination of Shangair patent large size air-controlling pollution release valve, electromagnetic air discharge valve, whirlwind gas & water separator and electrical timing controller, to assure a swift, thorough and reliable sewage disposal.
7.Redundancy control technology ensuring a unloading start at zero pressure: the diaphragm valve set at the suction port will close air intake within several seconds when the machine starts; all valves for releasing air and pollution will open when machine is at on/off condition to guarantee zero pressure inside.
8.Two flow adjusting modes are available: electrical adjustment and pneumatic adjustment, which is convenient for users to choose.

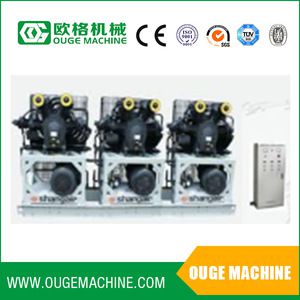

9.Modular design makes it accessible to consist multi-compressor set, to redouble air output, and users can select easily.
| machine set | model of main machine | model No. | Nm³/min air capacity | Mpa pressure | levels of compression | motor power(KW) | r.p.m running speed | weight (kg) | size(mm) |
| single unit | 80SH | 80SH-15150 | 0.75 | 15 | 4 | 15 | 630 | 680 | 1678*1035*998 |
| 80SH | 80SH-15250 | 0.75 | 25 | 630 | 1678*1035*998 | ||||
| 81SH | 81SH-15350 | 0.65 | 35 | 630 | 1700*1040*1100 | ||||

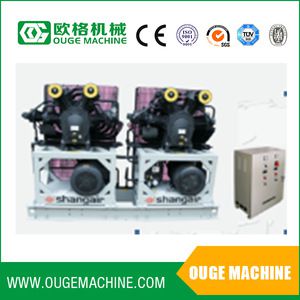

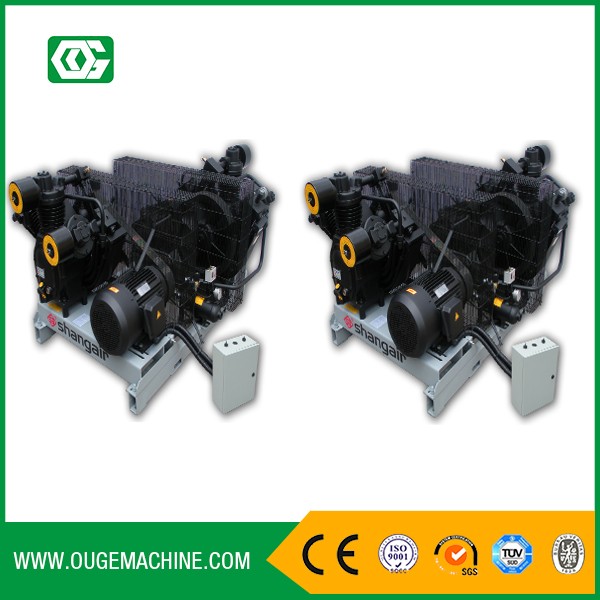

| double unit | 2-80SH | 2-80SH-15150 | 1.5 | 15 | 4 | 15*2 | 630 | 1550 | 4030*1150*1250 |
| 2-80SH | 2-80SH-15250 | 1.5 | 25 | 630 | 4030*1150*1250 | ||||
| 2-81SH | 2-81SH-15350 | 1.3 | 35 | 630 | 4030*1150*1250 |
