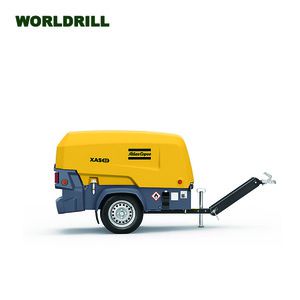

Atlas Copco XATS 68 Kd
Miraculous Brandnew Model
Brandnew 8 series of air compressor is a miraculous product developed after more than 10 years of concentrate study by Atlas Copco. This is the very first model of compressor that can be transported behind a regular passenger car without a special driver’s license. The maximum amount of air can be produced by this compressor is 5m3/min. With its light and compact outer appearance, a full-size fuel tank, a rear cooler and a generator are integrated perfectly.
Thanks to our advances in the design of the industry leading air components, the compressor we introduce is 150kg lighter in weight than the same type in other manufacturers. However, what we know is that the advantage of lighter weight is meaningless if the efficiency is incapable at the same time. Efficiency means many aspects, such as shorten maintenance time, reducing fuel consumption, or improving utilization. The 8 series has excellent performance in almost all categories of these requirements.
In addition, according to your specific application requirements, you may also expect the compressor you are using to own the characteristics of sturdiness and durability, and our HardHat® will be your best choice. This legendary machine cover was born in 2005, and the 8 series adopts the latest and most durable design.
New launched miraculous 8 series by Atlas Copco is a challenge to performance, and is the latest breakthrough in industry standard. The challenge you are facing is – Which model you prefer?
| 8 Series is the latest product launched by the company based on perspective thinking philosophy | ||
| Customer-oriented, not self-interest We pay close attention to your needs and provide products capable of adding value for you | Strive to be more efficient and refuse to waste We are committed to improving your environment and minimizing the impact on the earth. | |
| Own core research and development techniques, not simple assembly We have global research and development capabilities, and we are leading the industry in innovation investment. | Lengthen the running time, and shorten the outage time. We are escorting your schedule. Be sure to meet your running requirements at all times. | |
| Focus on providing solutions, not compromise We can provide you with the widest range of product combinations and the most extensive customization options. | To be a leader, refuse to follow or imitate others. We will continue to develop new products for you to maintain our leading position in the industry. We will looking forward to the future and stay ahead forever, ensuring that our clients will benefit as well. |
ISO Standard
The quality management and environment management systems are fully adopted in the process of designing and manufacturing these devices by Atlas Copco, which complies with the requirements of ISO 9001 and ISO 14001 & OHSAS 18001. This series product also has gained a test certificate issued in accordance with ISO 1217:2009-apendix D. The XAS88KD in series 8 products has completed domestic production in Wuxi factory, and the rest products are imported from Belgium factory.
| 8 Standard Functions 1. Reliable Hubota engine 2. Legendary HardHat® machine cover 3. Start motor protection system 4. 3-layer erosion-resistant paint system 5. air lock system to ensure normal start 6. Spill-proof framework 7. Battery cut-off switch 8. Packaged circuit to provide extra protection | 8 Steps to maintain simply 1. Discharge all liquid/Central discharge point 2. Drain and replace compressor oil/Easily accessible discharge point below the container 3. Drain and replace engine oil/Easy oiling 4. Replace engine air filter/Fix replaceable filters easily 5. Replace compressor air filter/Fix replaceable filters easily 6. Replace engine oil filter/Rotate easily and engine oil filter is fixed 7. Replace compressor oil filter/Rotate easily and compressor oil filter is fixed 8. Replace compressor oil-water separator element/Rotate easily and oil-water separator element is fixed |
| Performance | XATS 68 Kd | |
| Working pressureg | bar(g) | 10 |
| psi(g) | 150 | |
| Displacement | CFM | 135 |
| m³/min | 3.5 | |
| Output power | kVA | - |
| Sound pressure level(Lp) | dB(A) | 70 |
| Sound power level(Lw) | dB(A) | 98 |
| Max.ambient temperature at sea level | ℃ | 50 |
| Min.starting temperature | ℃ | -10 |
| Min.starting temperature(cold-start assistance) | ℃ | -20 |
| Engine | ||
| Engine brand | Kubota | |
| Engine model | V 1505 T | |
| Cylinder number | 4 | |
| Power output at normal shaft speed | kW | 33 |
| Full load RPM | rpm | 3000 |
| No load RPM | rpm | 1850 |
| Engine fuel tank capacity | L | 5.5 |
| Compressor fuel tank capacity | L | 7.7 |
| Fuel tank capacity | L | 60 |
| Dimensions:packing | ||
| Length | mm | 1940 |
| Width | mm | 1180 |
| Height | mm | 1150 |
| Packing weight | kg | 650 |
| Transportation dimensions:chassis | ||
| Length | mm | 2290 |
| Width | mm | 1350 |
| Height | mm | 1400 |
| Portable weight | kg | < 750 |

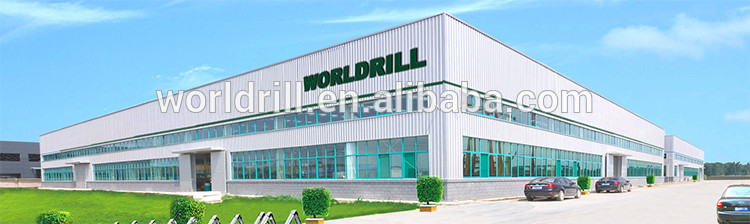

Company Introduction
Qingdao Worldrill Co., Ltd is one of the biggest enterprises in China specializing in research and manufacture of rock drilling products and pneumatic tools. It has a complete set of equipment for producing rock drilling products and pneumatic tools. (The key equipment is the most advanced one in the world). With its abundant experience in research and production, using the highest quality raw materials, through advanced technology and rigorous testing methods, our company has produced products with excellent performance and quality.
Our company mainly researches, designs and manufactures the following products: high pressure DTH hammers (which are the most advanced products in the field in China), all kinds of DTH bits, eccentric drilling tools for drilling with casing in the cover rocks and loose rocks, all kinds of threaded bits, RC reverse circulation hammers and bits, shank adaptors and coupling sleeves, various kinds of tool joints and drill pipes, and spare parts for drilling rigs, etc. The performance of these products is domestic leading and world first-class. The products have gained certificates including ISO 9001, API, SGS, CE, etc. “WORLDRILL” drilling tools own a good market all over China for the good quality and high performance. Meanwhile, the company is still actively exploring overseas market. “WORLDRILL” products have been exported to more than 50 countries including Australia, South Africa, UAE,Tanzania,Zambia,Korea,Nigeria,etc.
About our Product Technology and Advantages
“WORLDRILL”,manufacturing drilling tools, is a leading brand in China, and the DTH Hammers without foot-valve are the most popular products in particular. Compared with the DTH Hammers of the same specification with foot-valve, the advantages of DTH Hammers without foot-valve are as follows: 1. Higher impact frequency and faster drilling speed, with the speed being 15%-20% higher than the ones with foot-valve; 2. Lower air consumption and lower oil consumption, with 10% of the oil consumption saved; 3. Avoid the trouble of foot-valve fracture and expand when heated, or the contraction when cooled; 4. Fewer internal parts, simple in structure, long in service life, and easy to assemble and disassemble. The new type hammer has been well received by users since its launch. Hammering tests have been carried out on the hardest iron ore mine in China. Compared with the products from SANDVIK and ATLAS COPCO, the new type fast hammer produced by our company is about 10% faster in terms of speed. Besides, since the thickness of the external cylinder of the hammer from our company is increased, its service life is longer than others. As to bits, the quality of products provided by our company is comparable to those from the above mentioned two companies; in the meantime, the cost performance of drilling tools branded “WORLDRILL” is much higher than those branded SANDVIK and ATLAS COPCO.
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments . 1.Select equipment model. 2.Design and manufacture products according to client's special requirement ; 3.Train technical personnel for clients .
2.Services during the sale:
1.Pre-check and accept products ahead of delivery .
2. Help clients to draft solving plans .
3.After-sale services:
Provide considerate services to minimize clients' worries.
1.Complete After-sales service,professional engineers available to service machinery at home or oversea.
2. 24 hours technical support by e-mail.
3.Other essential technological service.
QINGDAO WORLDRILL CO., LTD
Contact: Mary
Phone:008653283181976
Mobile:008613906486398
Address: No. 261 Outlets in Southern District, Ruihai Garden, Lingshanwei Town,
Huangdao District, Qingdao City, Shandong Province, China, 266555
 |  |
|

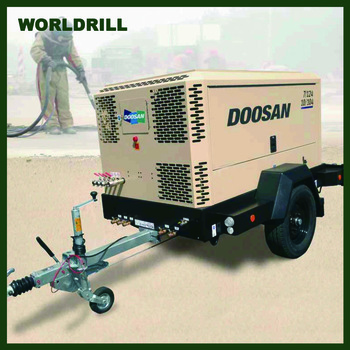

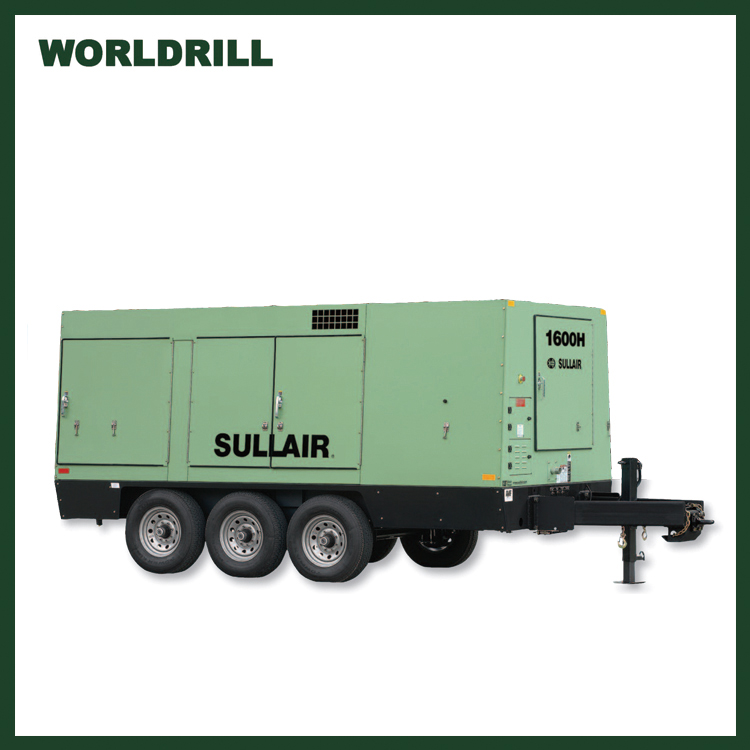

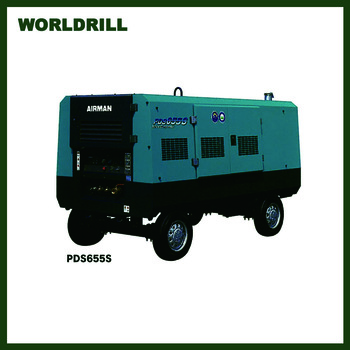

| Doosan (Ingersoll) 7/124-10/104 & 14/84 & 10/124-14/114 Portable Diesel Screw Air Compressor | SULLAIR screw diesel portable air compressor | Airman PDS655S fusheng portable air compressor |
