Our Diesel Generator Production Range is as follows:
* Engine (motor) for Choice
Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA
Perkins Engine(UK) 8KVA - 2000KVA
Volvo Engine(Sweden) 85KVA - 700KVA
Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA
Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA
Shanghai Engine (China) 60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA
2015 New mini 12kw portable gensets diesel generators electric 15kva price
generators electric 15kva
portable generators
cheap and convenience
get ISO and CE
The main parameters of generators electric 15kva | |
The model of the unit: | CLA-12AG |
Power: | 12KW/15KVA |
Rated voltage: | 400V/230V |
Rated current: | 21.6A |
Rated frequency: | 50HZ/60HZ |
The factor of rated power | COS=1(lag) |
Insulation | F |
Pole No. | 2 |
Exciting way | Brush, exciting-self voltage-constant (with AVR) |
Panel type | Intelligent |
Output socket | single-phase socket or Three-phase socket |
DC12V output | 12V 8.3A |
Noise (7m)dB(A) | 82 |
Structure type | closed |
size(mm): | 870*630*700 |
weight: | 195KG |
Engine model | R2V910 |
Type | V-twin, two-cylinder, four-stroke, DI |
Cylinder No. –bore ×stroke (mm) | 2-88×75 |
Total displacement (ml) | 870 |
Compressed ratio | 20:01 |
Cooling way | Air-cooled |
Lubricating way | Pressure & splashing |
Starting way | Electric |
Fuel used | 0#(summer)-10#(winter)-35#(cold winter)light diesel |
Oil used | SAE10W30(CD grade above) |
Lubricating oil capacity(L) | 1.7 |
Starting motor capacity (V-kW) | 12V 1.4kW |
Dynamo capacity(V-A) | 12V 8.3A |
Battery capacity(V-Ah) | 12V 45AH |
Fuel consumption under full loading(L/h) | 4.2 |
Fuel tank capacity(L) | 25 |
Continuous running time(H) | 6 |
Our generators electric 15kva service quality assurance:
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and
optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent
maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
Our Products display

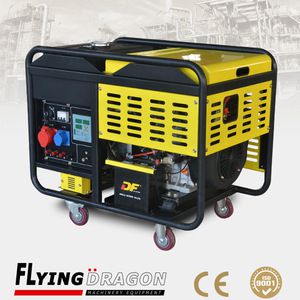

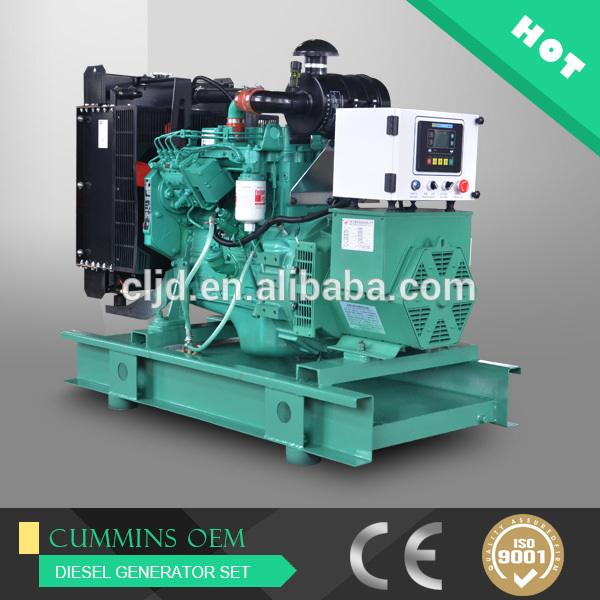

1.Open type

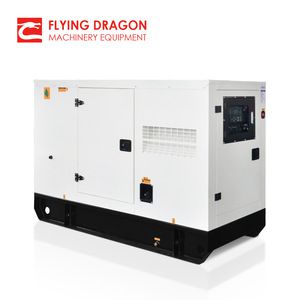

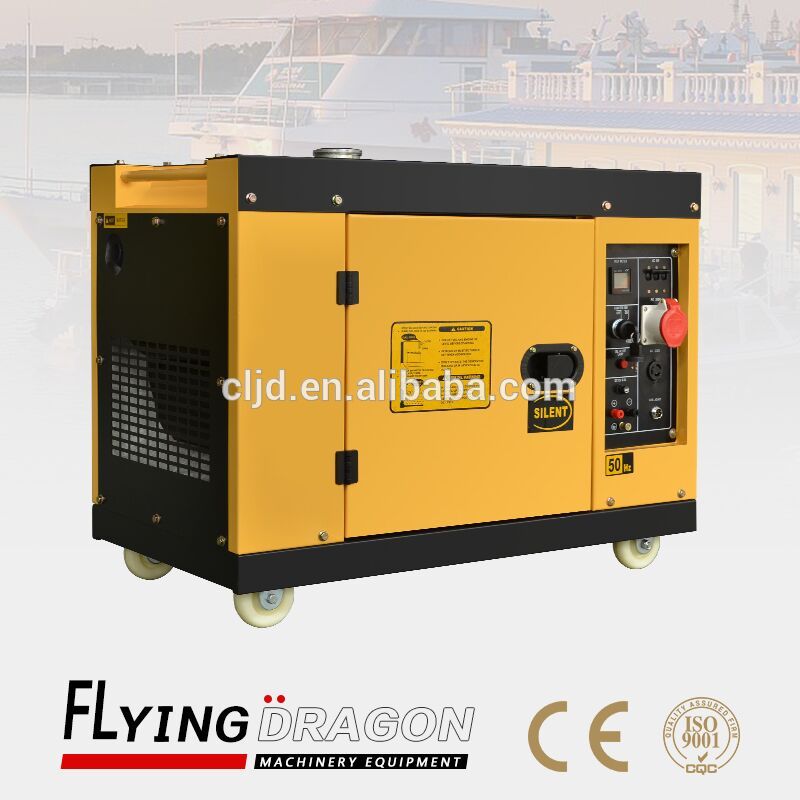

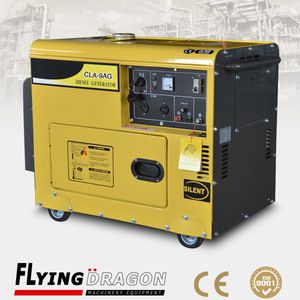

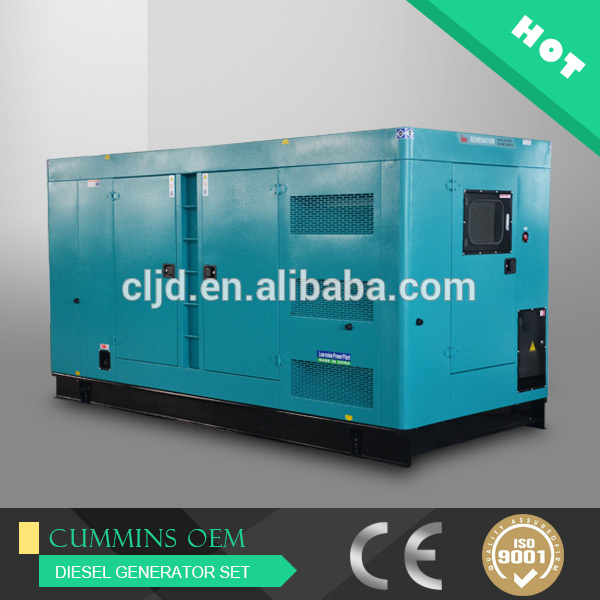

2.Silent type

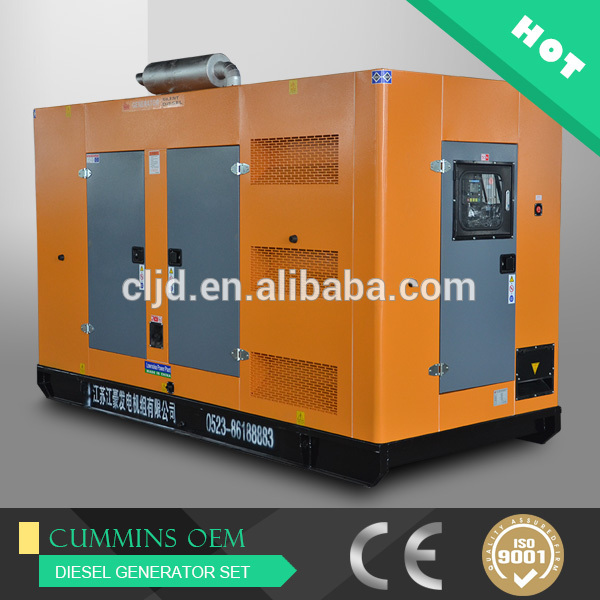

3.Rainproof type

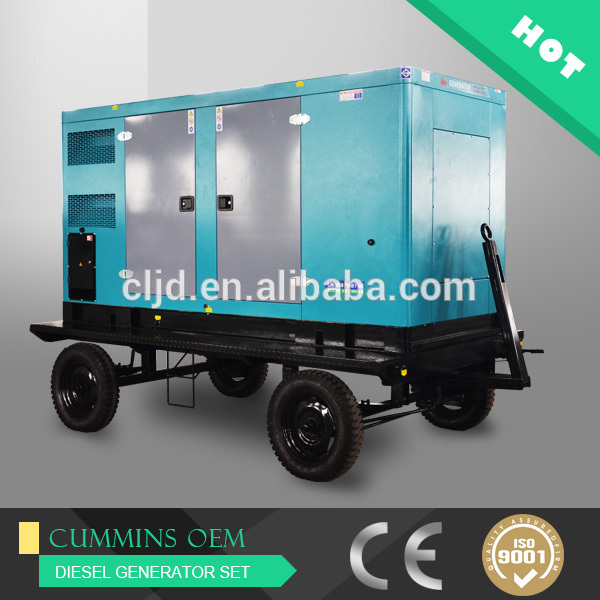

4.Trailer type

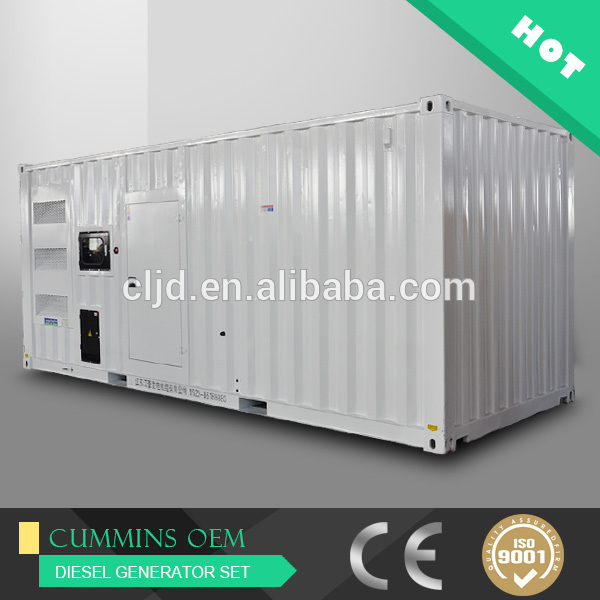

5.Container type
1.What's your power range of diesel generators?
Answer: We can offer the range from 5kva~3000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T, L/C,and 30% T/T as the deposit,the balance payment should be
paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty or 1000 hours which comes first.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6.What’s the frequency of diesel generators?
Answer: 50/60HZ
7.Do you have single phase or three phase diesel generators?
Answer: Yes,we have single phase and three phase diesel generators.
8.What’s the voltage of your diesel generator?
Answer:Generally,the voltage is 220/380V,230/400V,240/415V or according to your
requests.
