Silent Generator for Sale (Generator OEM Factory in Guangzhou)
Diesel Generator Set Show

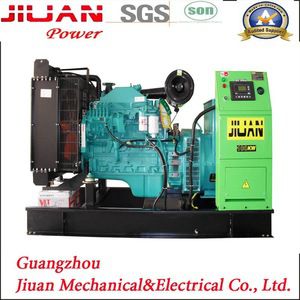

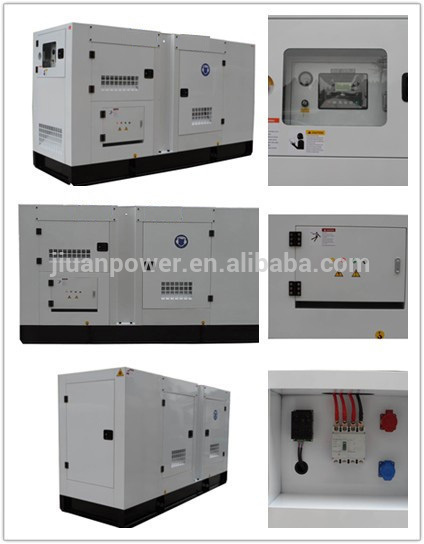

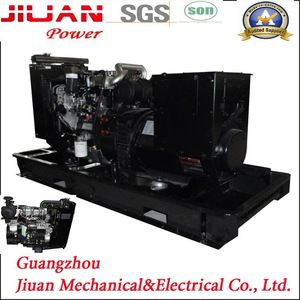

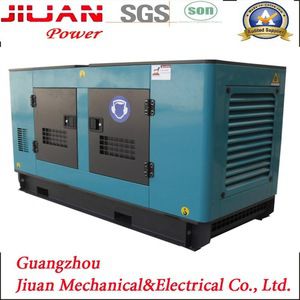

1. Pictures of Diesel Generator Set
2. Description of Products
MODEL | CD-C120KW/150KVA |
Generator with Cummins Engine | |
Prime Power (50HZ) | 120KW/150KVA |
Standby Power (50HZ) | 128kw/160KVA |
Power Factor | 0.8 (Lagging) |
Phase Wires | 3-phases 4-Wires |
Start Model | Electric |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current |
Engine Model | DCEC Cummins 6CTA8.3-G2 4 Cycle |
Cylinders | 6 |
Cylinder Arrangement | L |
Bore x Stroke(mm) | 114X 135 |
Compression Ratio | 16.5:1 |
Speed | 1500rpm |
Cooling Method | Water – cooled |
Starting Method | 24V DC electrical start |
Full Load Diesel Consumption (L/H) | 38 |
Engine Displacement (L) | 8.3 |
Inspiration (L) | Turbocharged Intercooler |
Lube Volume (L) | 24.3 |
Coolant Volume (L) | 28 |
Noise (Db) | ≤ 95 |
Alternator Model | Newage Stamford UCI274F or Leadtech LTG274FA |
Alternator Power | 128KW/160KVA Brushles with AVR |
Voltage | 380/220V,400/230V,415/240V,220/127V |
Protection | IP23 |
Voltage Regulation | ±4% |
Insulation Class | H |
Voltage Control | AVR |
Net Weigh (KGS) | 2150 |
Dimensions (L x W x H) mm | 2800*1200*1800 (S) 3500*1300*2000(Super Silent) |
40FT Container | 4 units (S) |
Controller | Smartgen 6110 or Deepsea 7320 |
Standard | Muffler * 2PCS |
| Battery 80A * 2 PCS |
Optional | ATS (auto transfer switch) |
| AMF(auto mains failure) |
| Trailer |
More Generator Information, pls check the link.

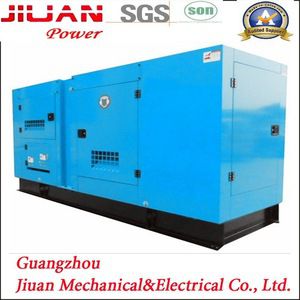

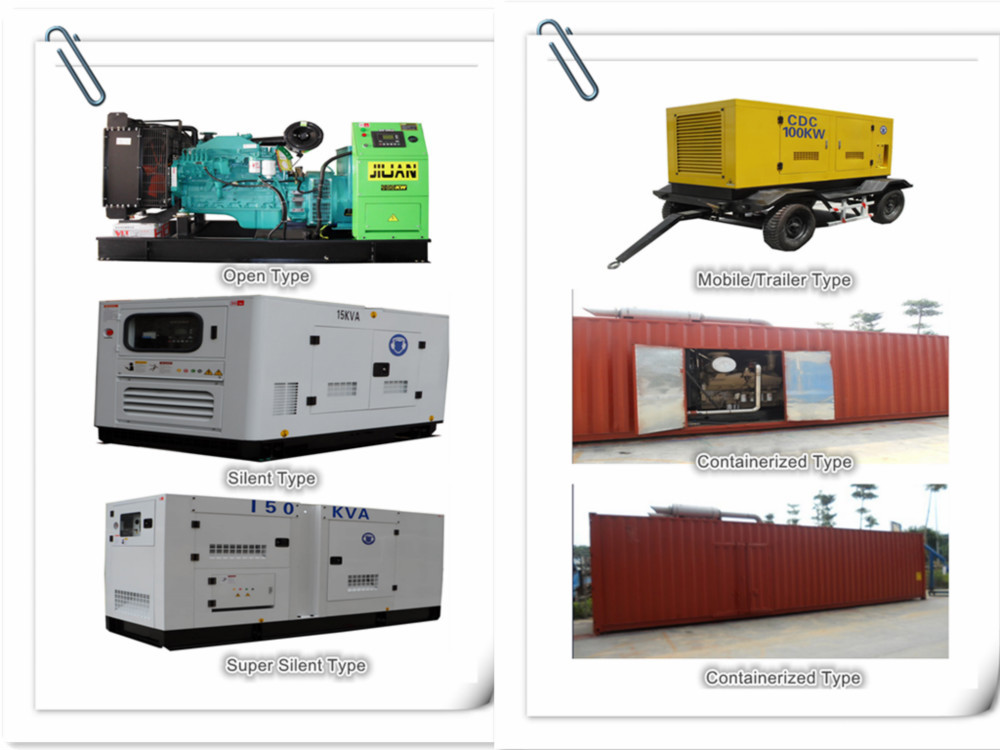

3. Generator Canopy for Choose
4. After-sales Service
1 year or 1800 running hours subject to the earlier one.
24 hours after-sales contact number: 0086 18520604611
5. Terms of Payment
1.T/T
2.Western Union
3.Cash
6. Trade Terms of Products
Generator Warranty | 1800 hours or 1 year subject to the earlier one. |
Delivery Items | FOB,CNF,CIF,EXW,Delivery Guangzhou |
Delivery Time | 15-20 days after receiving advanced payment. |
Generator MOQ | 1PCS |
Package | PE Film+Pearl Wool+Iron Frame (standard export packing) |
Certificate | SGS;Cummins Authorized Factory;TUV;Son cap |
Loading Port | Guangzhou,Shenzhen,Shanghai |
Payment | T/T Cash or Western Union |
Please give detail needs in your inquiry, so that we can make power solutions for you. |

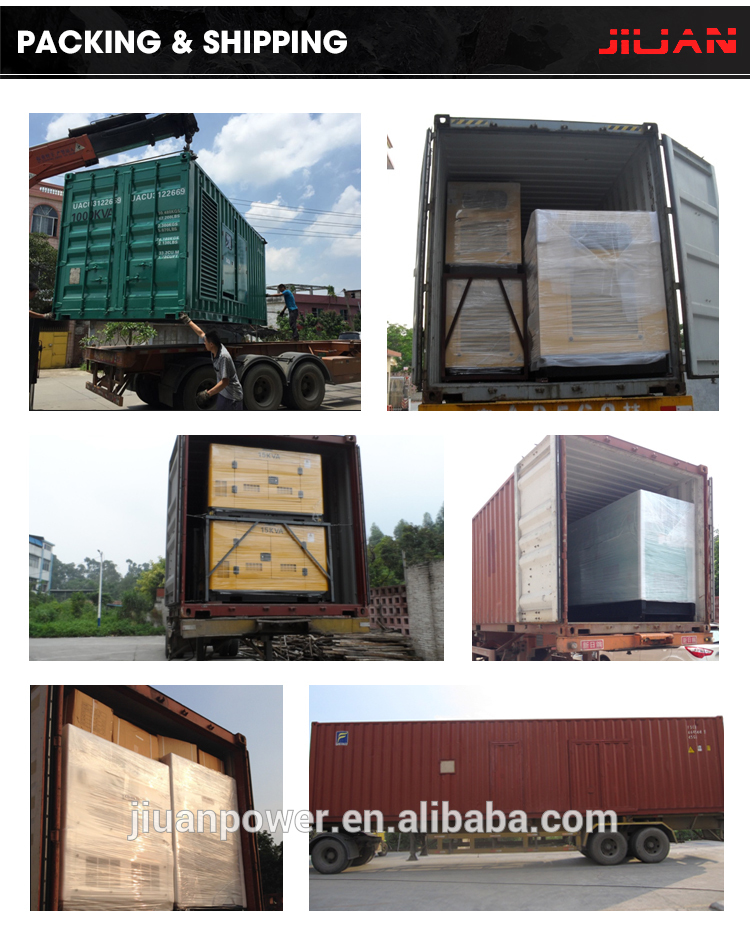

7. Packing & Shipping
8. Certificate of Product
9. More Products to choose
Company Show
1.Introduction of Compay
Business Type: Manufacturer
Location: Guangzhou,China (Mainland)
Year Established: 2008
Registration No.:440111000040106
Main Products:
Professional diesel generator OEM factory.
Cummins Engine for Genset;
Perkins Engine for Genset;
China Engine for Genset;
ISUZU Engine for Genset;
Kubota Engine for Genset;

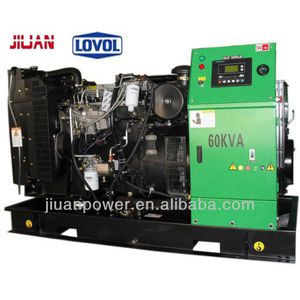

Lovol Engine for Genset;
Diesel Welding Genset;
Diesel Water Pump;
Genset Spare parts
2.Our Company View
3.Production Line of Product
https://jiuanpower.en.alibaba.com/productlist.html?spm=a2700.icbuShop.0.0.3a4774d6OT2N29
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Perkins (UK) 8KVA - 2000KVA
4. ISUZU (Japanese) 20KVA - 40KVA
5. Lovol (China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 50KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBOTA Engine 10KVA - 50KVA
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leateck

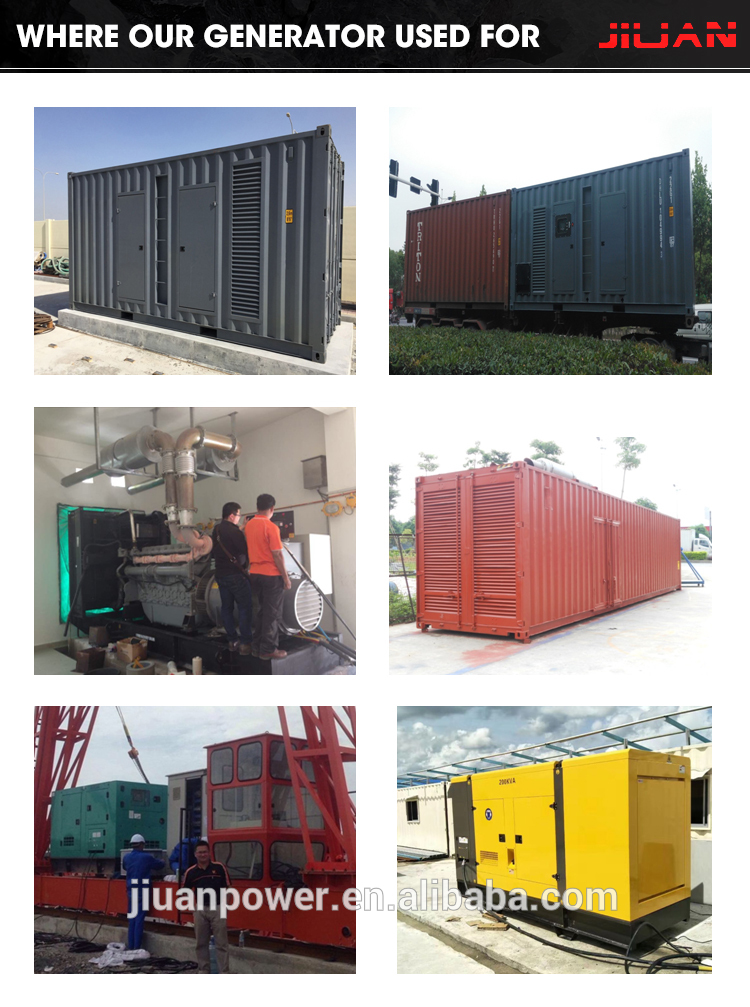

4.Where Our Generator Used for?
5.Why Choose Us?
Good Reasons Why You Choose JIUAN Generator:
1.Professional Generator OEM factory in Guangzhou.
2.14 years experience in generator and exporting.
3.High quality products at affordable prices.
4.Products lines verified by professional inspectors.
5. Place orders safety.
6. All engines and alternators are brand new and original - Credible.
7. Controller Deepsea or Smartgen -BIG Brand.
8. Air Breaker ABB CHNT Schneider ASK - Safety.
9. 1% parts free are available for your order.
6.Welcome to Contact Us
Factory Directly ! Diesel Generator Set with Cummins Engine
Features of Gen.set with Cummins Engine
1.12 months world-wide warranty service
2.Short delivery time,as we always have Cummins engine in stock
3.Spare parts are easy to get from worldwide market with much cheaper price
4.Perfect after-sales service network
5.Both 50HZ @1500rpm and 60HZ@1800rpm are available
6.Rigorous test including 50% load,100% load and 110% load
7.Stronger power with reasonable price
8.International brand feel free to use
Standard configuration of generator with Cummins Engine design:
1.Original engine
2.Alternator coupled with Stamford alternator,Leroy Somer alternator,Marathon alternator,copy Stamford alternator
3.Soundproof canopy, Super silent, open frame, Trailer mounted,Containerized
4.Controller Smartgen 6120 with AMF as standard or Deepsea 6020
5.Circuit breaker CHNT,ABB,Schneider,ASK
6.Base fuel tank 8 hours continuous running for soundproof type, 24 hours continuous running for super silent type.
7.Free-maintenance battery with Auto Battery Charger
8.Industrial silencer each 2 PCS per set with flexible exhaust hose.
Alternator Features:
1.World famous brand AC alternator: Stamford,Leroy somer, Marathon,Faraday,copy Stamford
2.Brush less with AVR
3.Brush less 4 poles,rotation magnet
4.AVR Voltage regulation less than ±1%,AVR self-regulated
5.Protection class IP23
6.Insulation system is class “H”

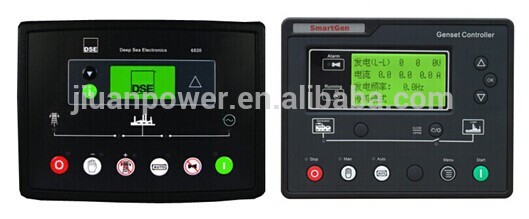

Control System Features:
Standard Smartgen 6120 or Deepsea DSE6020
Language Display: English;Spanish;Russian;Chinese
Data Display: Power,Voltage,Current,Frequecny,Speed,Oil pressure,Water Temperature,Fuel Level
Protection (auto alarm system):High voltage;Low voltage;High Speed;Low Speed;Over Current;Lose Phase;Low oil pressure;High water temperature
Functions: Auto start;Auto stop;ATS(auto transfer system);AMF(auto mains failure system)
JIUAN Genset testing items:
1.Loading testing:all qualified generator sets are subjected to a comprehensive performance test which includes 0% load,25% load, 50% load, 100% load and 110% load to check verify that all control systems, alarm and shut-down protection.
2.Parts fault testing.
3.Fuel tank pressure testing.
4.Bolt tightening torque testing.
5.Voltage bearing and insulation testing
6.Noise level testing
