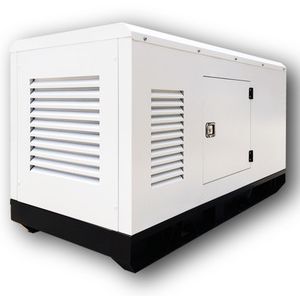

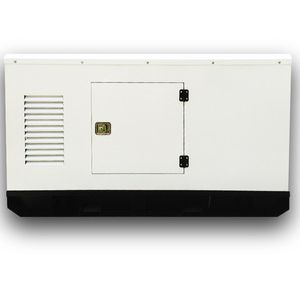

Product Description
| Description | Generator Model | SDG75KS |
| Reference | SDG75KS-3-50 | |
| Generator Set | Rated Power(kW/kVA) | 60/75 |
| Max.Power(kW/kVA) | 66/82 | |
| Frequency (Hz) | 108 | |
| Voltage (V) | 220~480 | |
| Current (A) | 87 | |

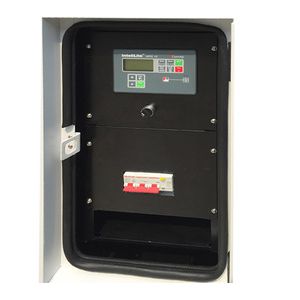

| Controller | COMAP MRS10 | |
| ATS Port | options | |
| Battery (Ah) | 2x12V-80Ah | |
| Fuel Tank Capacity (L) | 140 | |
| Cooling Fluid Volume (L) | 25 | |
| Fuel Consumption (L/kw hr.) (50% Loading) | 0.24 | |
| Running Time under 50% Load (hr.) | 18 | |
| Noise Level behind 7 Meters (dBA) | 68 | |
| Engine | Engine | 4D75TG |
| Power Output (kW/1500rpm) | 72 | |
| Start Method | Elec. Start | |
| Displacement (cc) | 4.214 | |
| Oil Capacity (L) | 13 | |
| Alternator | Alternator | 224E |
| Rated Power (kW/kVA) | 78 | |
| Power Factor (Cosφ) | 0.8 | |
| Voltage Regulation | AVR/Blushless | |
| Transportation Data (open type) | N.w.(kg) | 920 |
| G.W.(kg) | 1020 | |
| Product Dimension (mm) | 1800*880*1600 | |
| Transportation Data (soundproof) | N.W.(kg) | 1400 |
| G.W.(kg) | 1500 | |
| Product Dimension (mm) | 2230X1000X1280 | |
| Specifications are subject to continuous product delevopment | ||
| SDG-skyrun diesel generator K-kva S-soundproof -3-three phase |
Features
• Compact structure high-strength chassis
• Easy operation and maintenance, Low cost
• Good performance damping system
• Compliance with international electrical safety standards of electrical system
• 8 hours base tank
• High-performance maintenance-free batteries with isolation switch
• 50℃ radiator
• Forklift bottom hole design, easy to transport
• Industrial type muffler
• Noise reduction structure,Low overall noise
• Convenient power output interface and ATS Interface
• IP56 (control system)
• The personalized design for user
