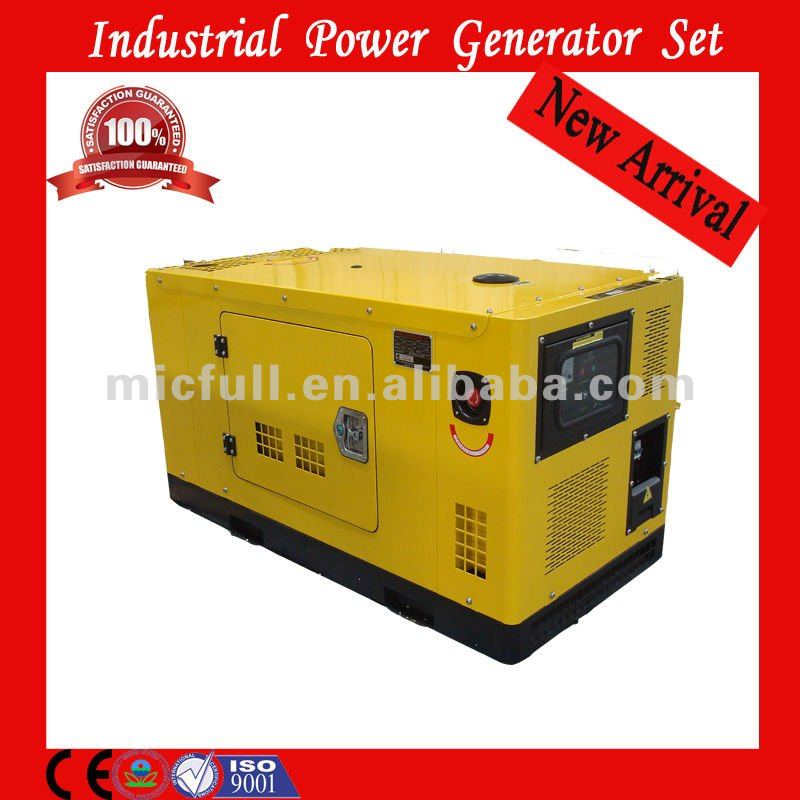

| Genset Model | BL-10 |
| Prime Power(Kw/Kva) | 8.010 |
| Frequency | 60Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |

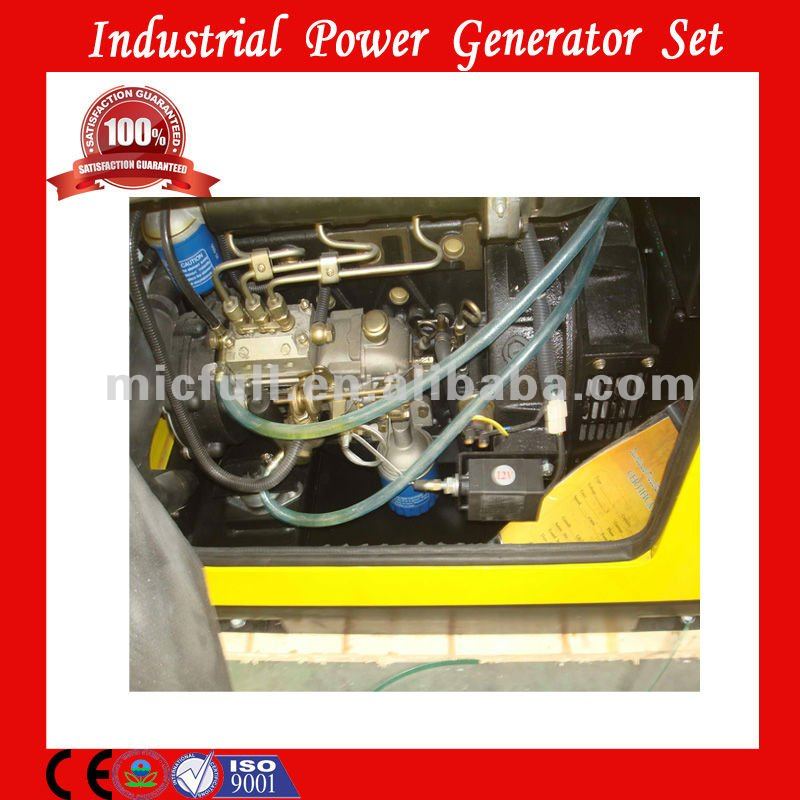

| Engine Model | LL380D |
| Silent type DimensionL*W*H(mm) | 1660x880x950 |
| Weight(Kg) | 700 |
| Engine Detail | |
| Manufacturer | Laidong engine Co.,Ltd |
| Model | Y385D |
| Engine speed | 1800rpm |
| Prime power | 13KW(60Hz) |
| Type | vertical,3 cylinder,in-line,water-cooled,four-stroke |
| Aspiration | Naturally aspirated |
| Governor | electrical |
| Bore*Stroke | 80*90mm |
| Alternator Detail | |
| Model | STG-10 |
| Output power(Kw/Kva) | 810 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.

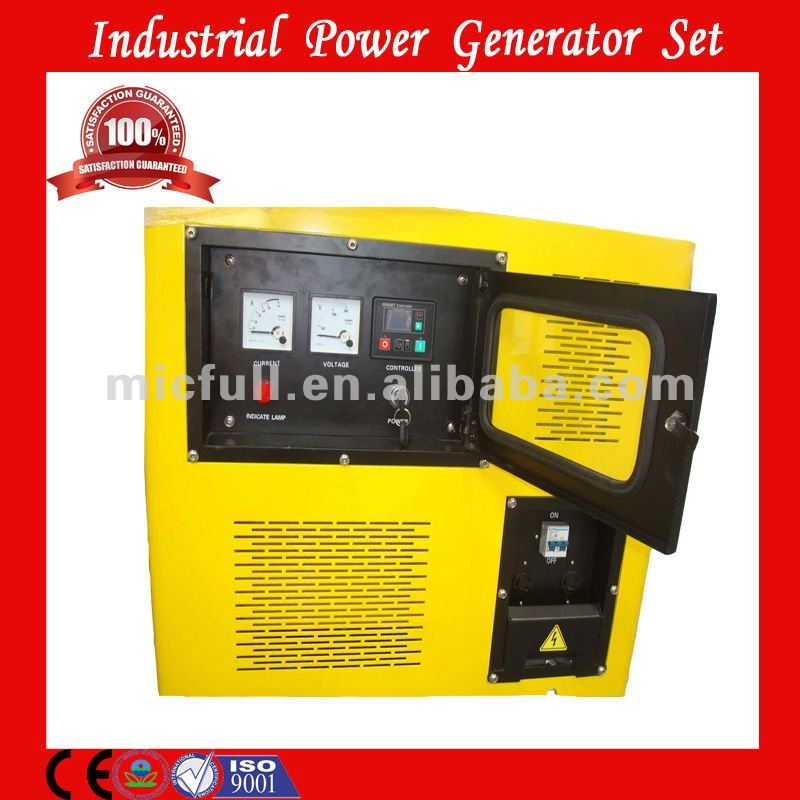

3) Auto control panel with LCD display.
4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.
5) Circuit Breaker,Exhaust Silencer.
6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.
7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.
8) Skid-mounted bottom 8 hours fuel tank.
9) Extemal recessed emergency stop button for extra safety.
10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.
Guaranty:
Guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, our Boomaster will provide the free easy-damaged spare parts for problems caused by our quality of production or raw materials,
except the damage caused by customer's incorrect manmade operation.
After expiration, our company will provides cost spare parts maintenance for genset
MOQ | 1 set |
Delivery Clause | FOB Fuzhou |
Terms of payment | T/T, L/C at sight |

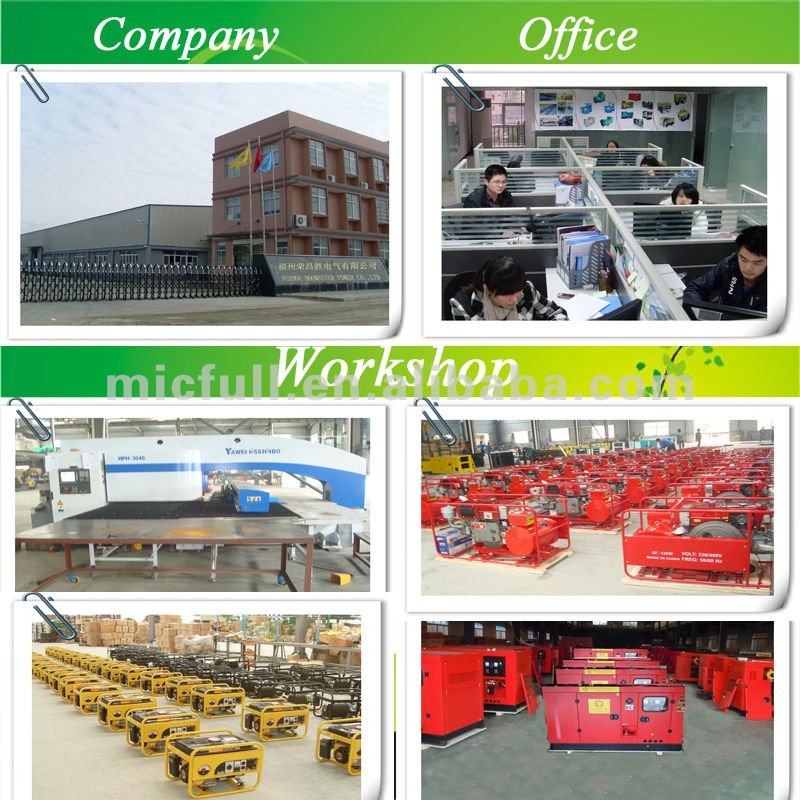

.Leading Professional manufacturer of power generator

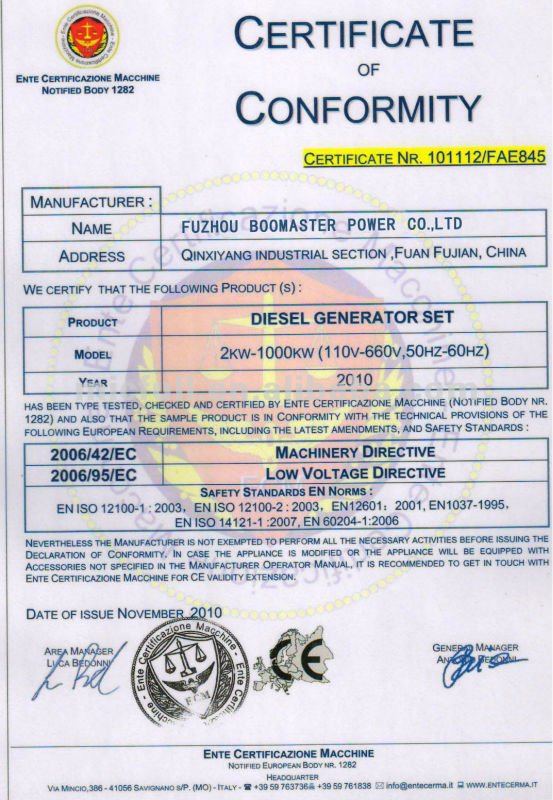

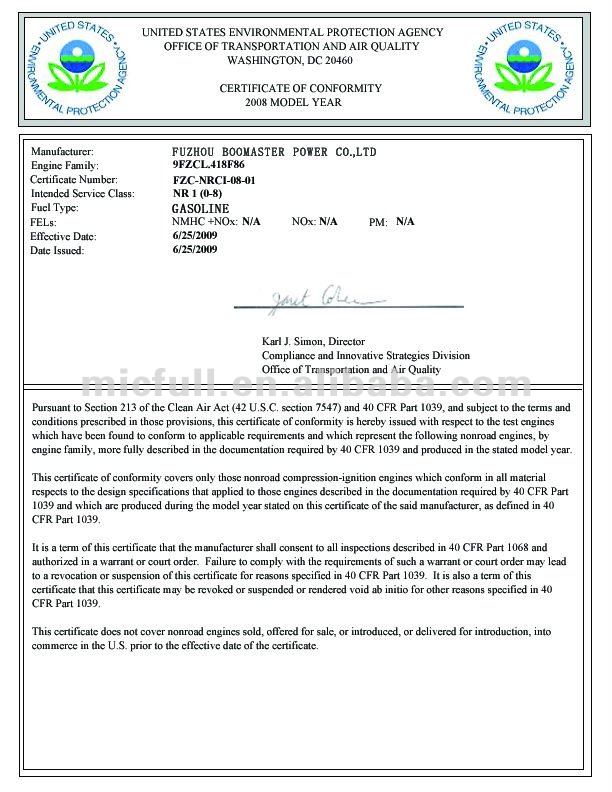

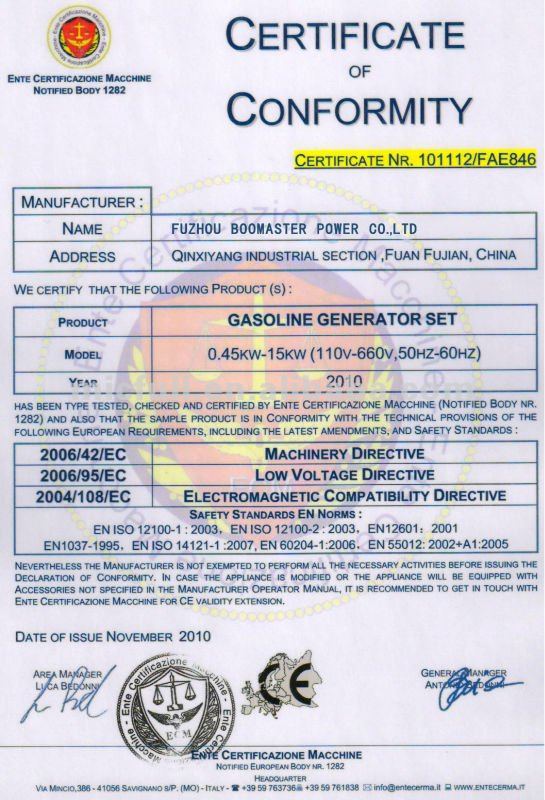

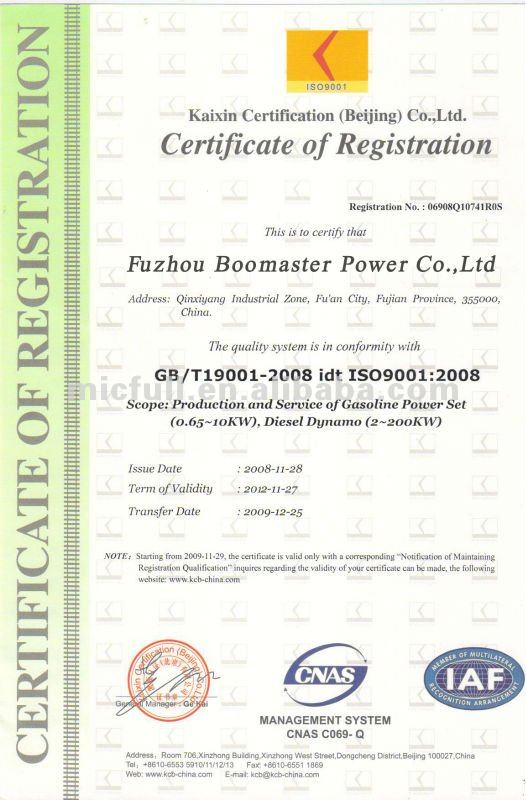

.Certification:CE EPA ISO IEC
.Fast delivery:we will do our best to meet your requirement when you need it.
.Product quality :Famous high quality engine.we offer spare parts.
.OEM is warmly welcomed
