Frequency Signal Generator 2000w Pzt Electric Generator
Product Description
Main Technology Reference of Frequency Signal Generator 2000w
- Working volt: 220V(±10%) or 110V(±10%)
- Working current:Please notice that equipment can not work long time under the current which is greater than the rated current.
| Ultrasonic power | 300W | 600W | 900W | 1000W | 1200W | 1500W | 1800W | 2000W | 2400W |
| Working current | 1A | 2.5A | 3.5A | 3.7A | 4.5A | 5-5.5A | 6-6.5A | 6.5-7A | 8-8.5A |
- Working Environment temperature: 0-40C°
- Relative humidity: 40%–90%
- Working frequency: 28KHz(40KHz,80 KHz,135KHz, etc)
- Time control: 0—59 minutes 59 seconds
- Range of power control: 0-100% digital control and adjustment of 16 grades
- Internal overtemperature protection: 65 C°
- Outer size: L x W x H = 360*300*160
Some Application of Frequency Signal Generator 2000w
Ultrasonic Circuit is the main parts of ultrasonic cleaning syste,which is for cleaning Electronic workshop,industrial and mining enterprises,laboratories,hospitals,glass shop,jewelry shop,mobile phone repair shop,family and so on
Ultrasonic Circuit is the main parts of ultrasonic cleaning syste,which is for cleaning Electronic workshop,industrial and mining enterprises,laboratories,hospitals,glass shop,jewelry shop,mobile phone repair shop,family and so on

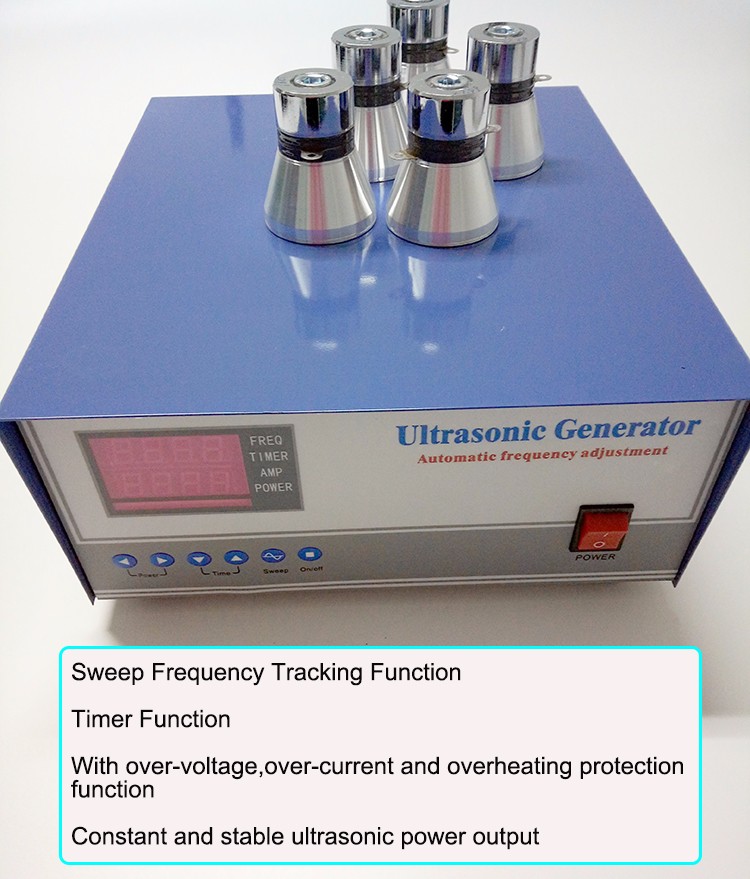

Some Features of Frequency Signal Generator 2000w
- Timer Function:set working time from 0-60 mins according to the cleaning objects.
- sweep frequency tracking function:achieved sweep frquency cleaning and automatic frequency tracking.

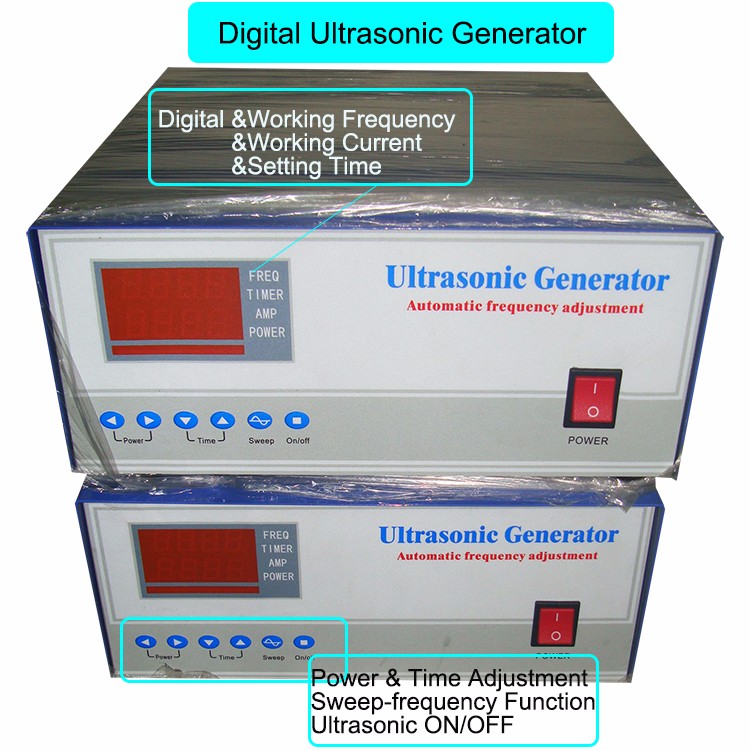

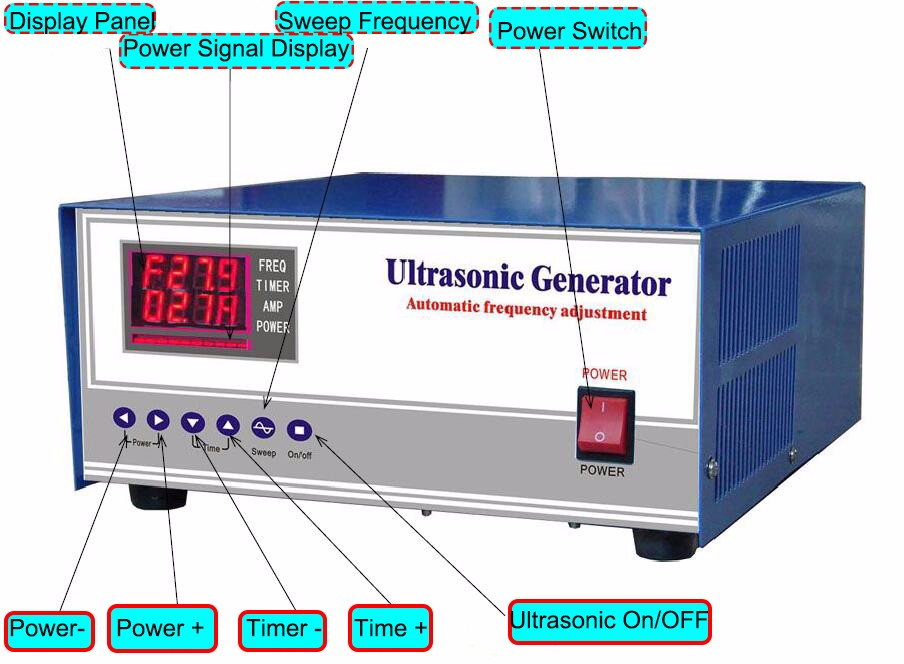

- Display working time.frquency.current by digital.More intuitive and convenient for data observation.
- With over-voltage,over-current and overheating protection function,which prevent tube and plate from burning,reduced damage to the generator.
- Effective power output which is as high as 98% above.
- External PLC control switch.the remote control ultrasonic cleaning machine.
- Ultrasonic power,time and frequency can be Continuous adjustable.
- Constant and stable ultrasonic power output.
The Specification of Frequency Signal Generator 2000w
| Type | Frequency | Power |
| QCG2000 | 17khz-45khz | 2000w |

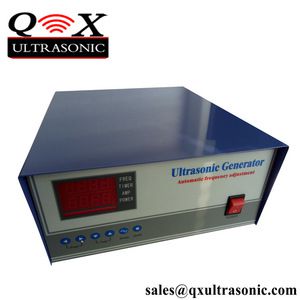

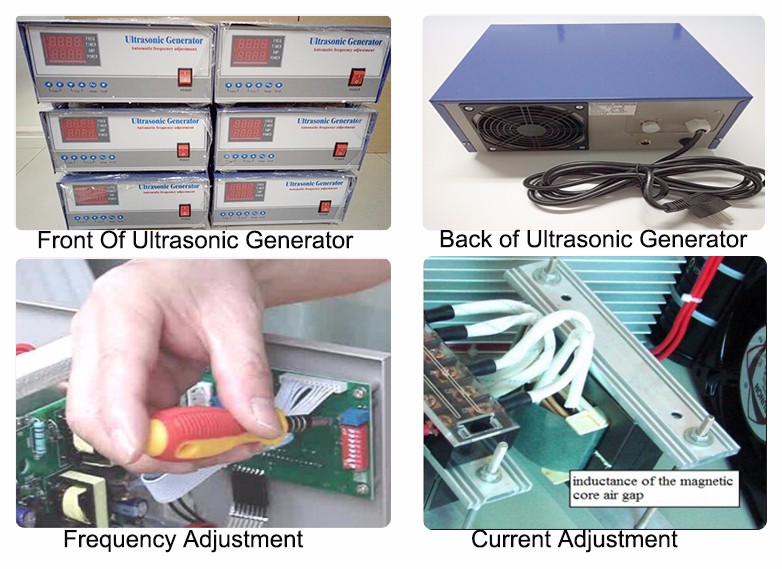

Product Picture

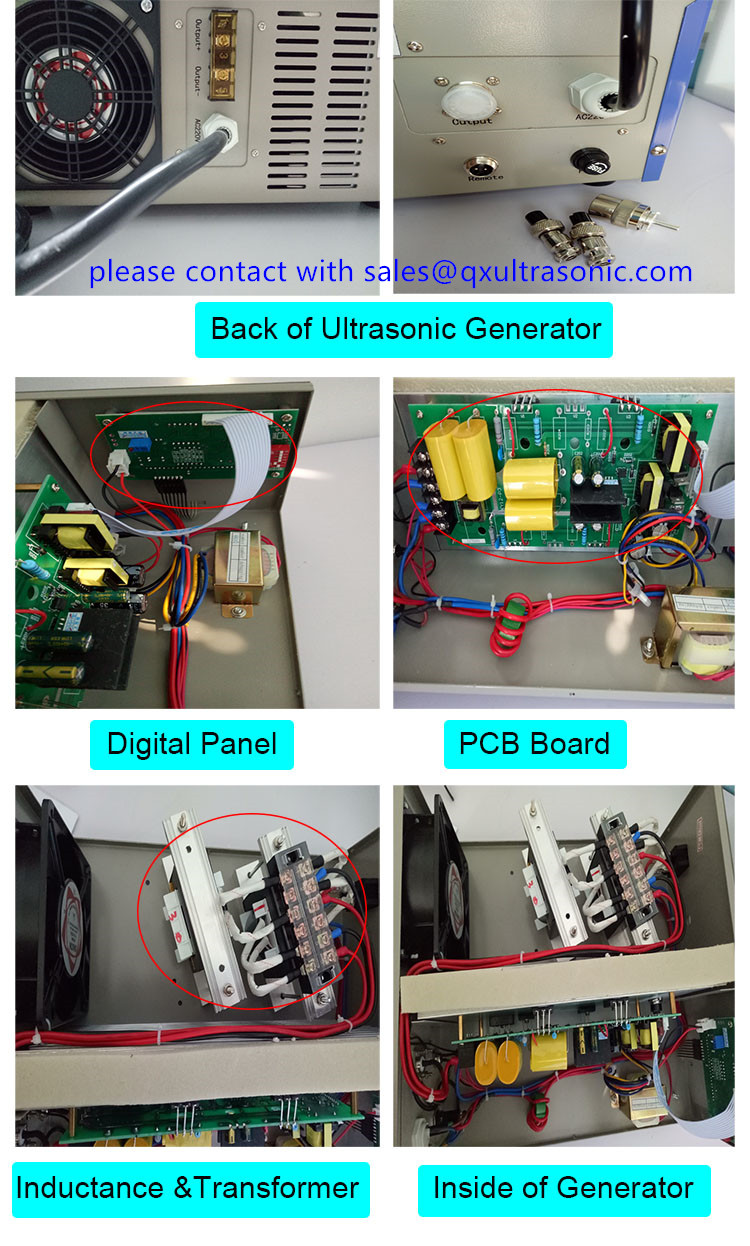

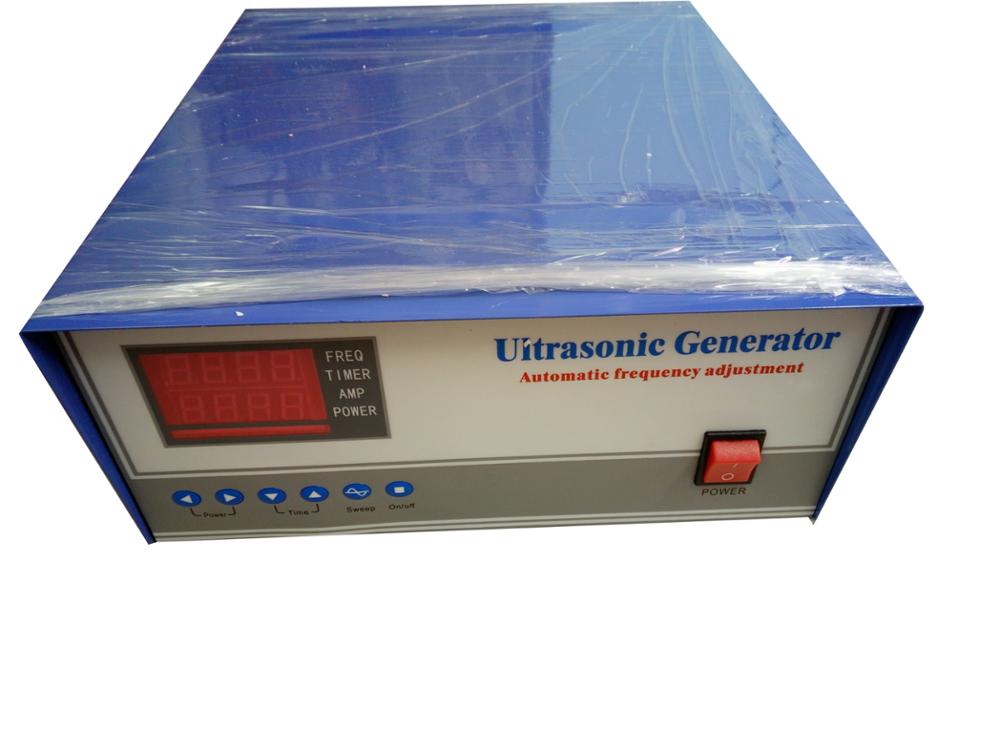

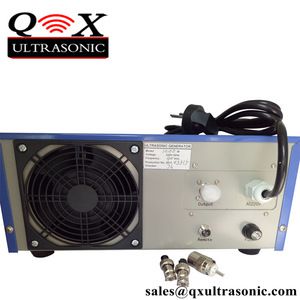

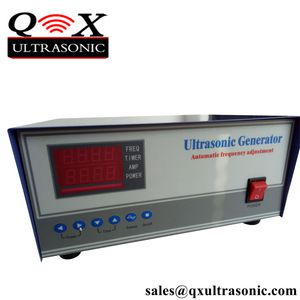

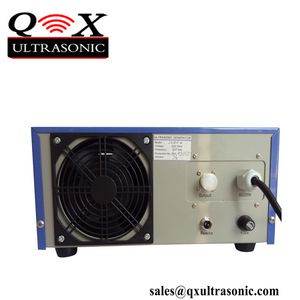

| Frequency Signal Generator 2000w Showing |
Frequency Signal Generator 2000w |
| ♥♥♥ Remark: We will supply the required Voltage as need. |
| Frequency Signal Generator 2000w Connection Notes |
Wiring instructions between Frequency Signal Generator 2000w and Ultrasonic Transducer
| ♥ The ultrasonic generator can't power on under no-load condition |
| ♥ After installed, we can not power on until lay cleaning fluid |
| ♥ Ultrasonic transducer has two lugs.The positive one lay in the middle of two pieces of ceramic.The native one near lower metal column. Please do not make wrong when wiring. |
| ♥ The larger side with screw hole in ceramic transducer which has a function of vibration,can be stuck in the bottom of cleaning machine. And please make sure the cleaning machine is safely grounding |
| ♥ The ceramic transducer should be pasted in the bottom of cleaning machine using transducer specialized glue or use AB glue stick. but the effect is a bit poor, or use epoxy resin with proportion of 10:4. |
| ♥ The working circuit board voltage is 600V.The voltage output to the transducer is 1100 v.Please ensure the cleaning machine is safely grounding. Please make sure leakage protection switch assembled on the power supply in order to ensure safety. |
Our Services
Packaging & Shipping
The goods Frequency Signal Generator 2000w will be shipped within two days as required package.
