Description

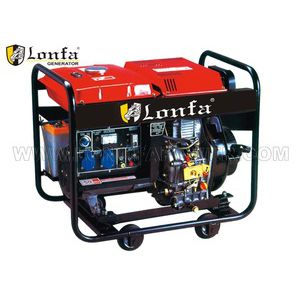

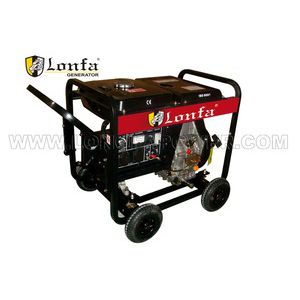

1. 4.5kv open type diesel dynamo Generator
2. three Phase power generator
3. 8 Years experience in Producing generator, Engine and Pump
4. CE, EPA & SONCAP Standard
Main Features
1. Hand start(recoil) / Key Start is optional
2. Power output: 1.5-6.0KW 50/60 HZ
3. 5.5-15 HP Engine, copper/ aluminium Alternator is optional
4. Muffler / Silencer with low noise, motorcycle silencer is optional
5. Cast iron cam shaft, high quality carburetor
6. Best quality Crank Case
7. Galvanized shining screw, A++ grade piston
8. Strong carton packing, inside with foam and wood
9. Single-Phase or three phase is optional
10. New type volt-meter & current- meter, with protection double panel
Parameter

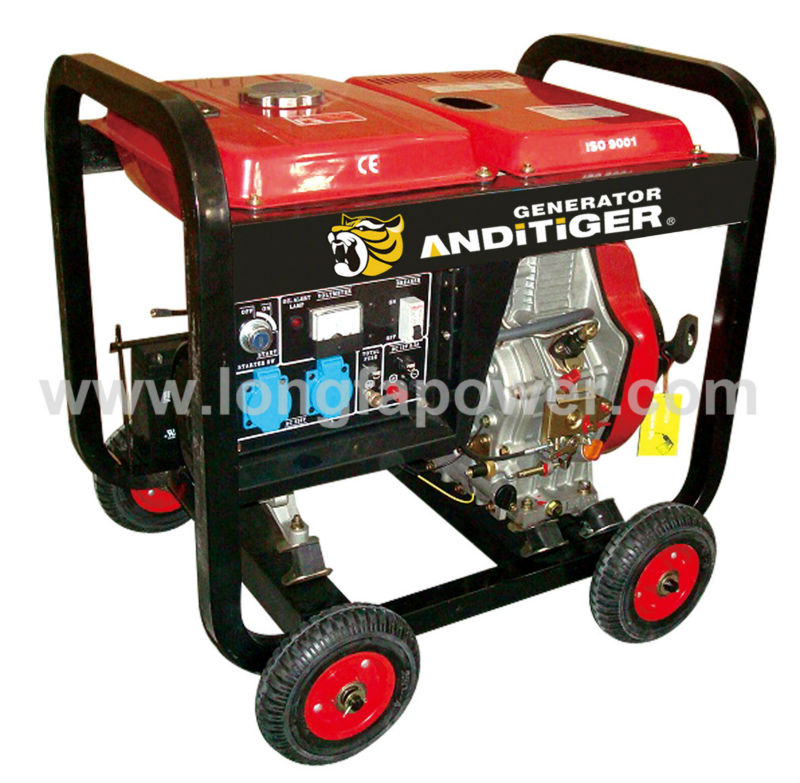

| Diesel Generator MODEL | AD3800DSE | AD5800DSE | ||
| Rated frequency(HZ) | 50 | 60 | 50 | 60 |
| Rated voltage(V) | 220/230 | 240/120 | 220/230 | 240/120 |
| Rated current (A) | 12.2 | 13.8/27.5 | 18.3 | 20.8/41.7 |
| Rated output power(KVA) | 2.8 | 3.3 | 4.5 | 5.0 |
| DC output | 12V/8.3A | |||
| Power factor(cosφ) | 1.0 | |||
| Phase | Single-phase | |||
| Dimension(LXWXH)(mm3) | 830×520×740 | 910×530×740 | ||
| Packing size(LXWXH)(mm3) | 900×565×770 | 990×570×770 | ||
| Net/Gross weight(kg) | 135/143 | 175/183 | ||
| Structure model | Silent cart type | |||
| Engine model | HY178FE | HY186FE | ||
| Engine type | Single-cylinder,4-stroke,air-cooled,direct-injection,diesel engine | |||
| Displacement(cc) | 296 | 406 | ||
| Compression rate | 20:1 | 19:1 | ||
| Rated output/Speed KW(HP)/rpm | 3.7(5.0)/3000 | 5.7(7.8)/3000 | ||
| Starting system | Recoil/Electric start with battery | |||
| Fuel tank capacity(L) | 16 | |||
| Lube capacity(L) | 1.1 | 1.65 | ||
| Fuel type | Diesel 0#(summer),diesel-10#(winter) | |||
| Lube brand | SAE10W30(above CC grade) | |||
| Low oil pressure alarm system | With |
About Us
China Longfa Machinery Co.,Ltd established in 2003,which is specialized in producing series of gasoline generator ,diesel generator,gasoline engine ,water pump and parts of generators .Meanwhile ,all of our
machine has passed CCC,ISO9001/2000 and CE certificate.We devoted ourselves to offering both qualified
products and satisfying service to our customers and strive continuously.

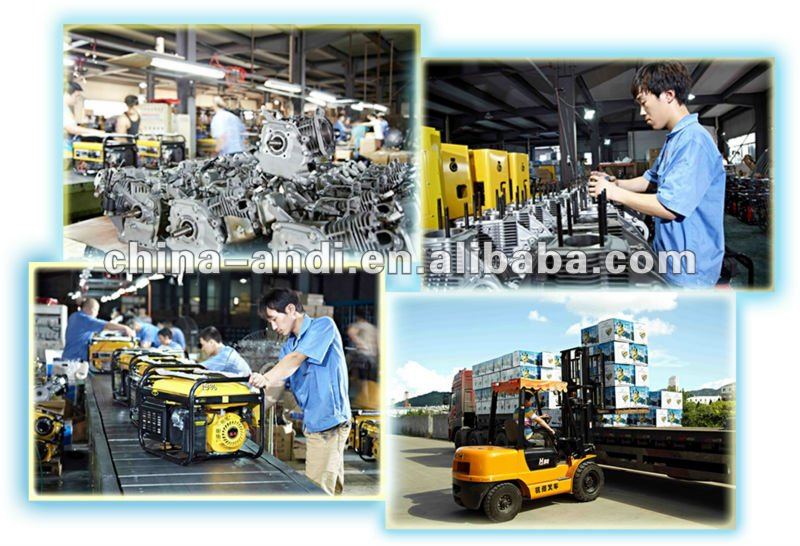

Assembly Line
Certificates
Main Markets
Most of our machine exported to European Union ,Middle Easet ,Africa,South & East asian countries and regions
1.Q:What is the Quality Warranty for the products?
A:We offer 1 year quality warranty for all of our products.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 2 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,
but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
About Us
TAIZHOU LONGFA MACHINERY CO., LTD
Located: Taizhou City, Zhejiang Province, China
Main Business: Generator, Water Pump & Engine
History: 14 years experience for manufacturing
Marketing network: Europe, Middle East, Africa, South East Asia, etc
Certificate: CCC, CE, ISO9001, SONCAP, EPA
Guaranty: 12 months warranty for all products
Technology: Professional technical engineers and R&D team
Management: Scientific management and strict quality control system
Equipments: Advanced automatic production line and test equipment
Innovation: Continuously diversify products range to satisfy customers
Production capacity: 50000PCS/month
Marketing mode: 100% export business
