Product Description

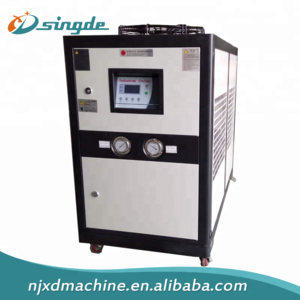

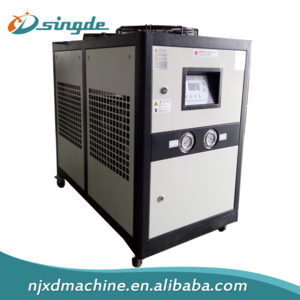

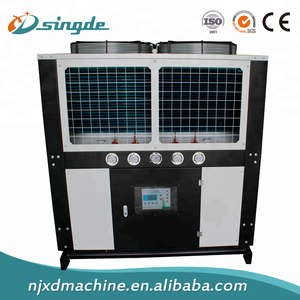

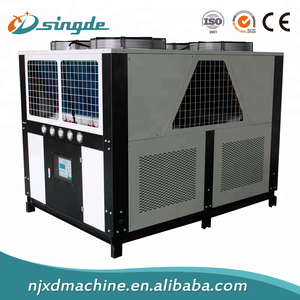

SC-20A 20HP air cooled water chiller price
* Oxygen-free welding for copper pipes.
* Temperature range: -5℃ to 35℃ (Customized).
* Imported quality parts for longer service lives.
* Control mode: imported microcomputer or PLC(optional).
* RS485 communication function for automated management(optional).
* Two groups of compressor heads(used separately or jointly) for C-20.
* Electrical system brands OMRON, FUJI.TE, LG, MOELLER, ABB and WEST.
* High-efficiency evaporator and condenser which can save energy more than 30%.
* Imported famous brand low temperature compressor, Maneurop,Bitzer,Copeland/Carrier etc.
* Perfect safely protection, fault display, easy repair and maintenance even without professionals.
* Refrigerant R404A, R104a and R22/R407C etc, meeting refrigeration temperature and environmental protection requirements.

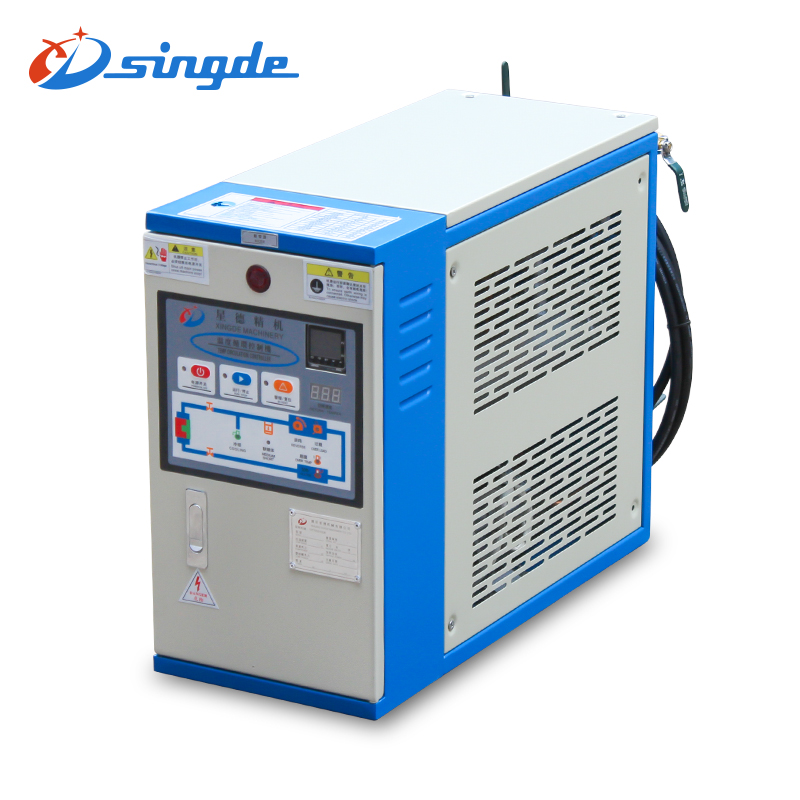

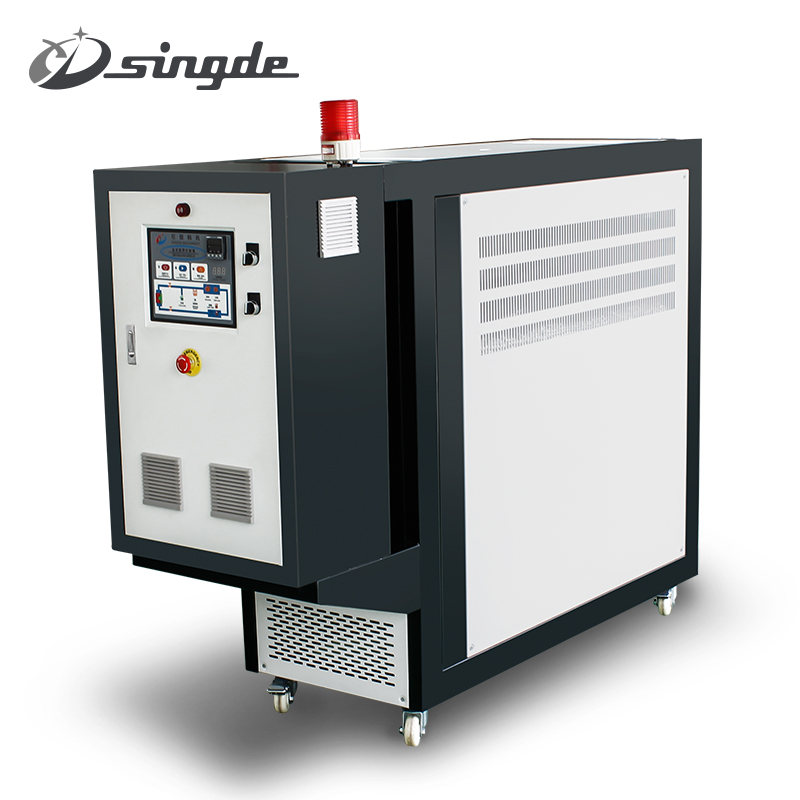

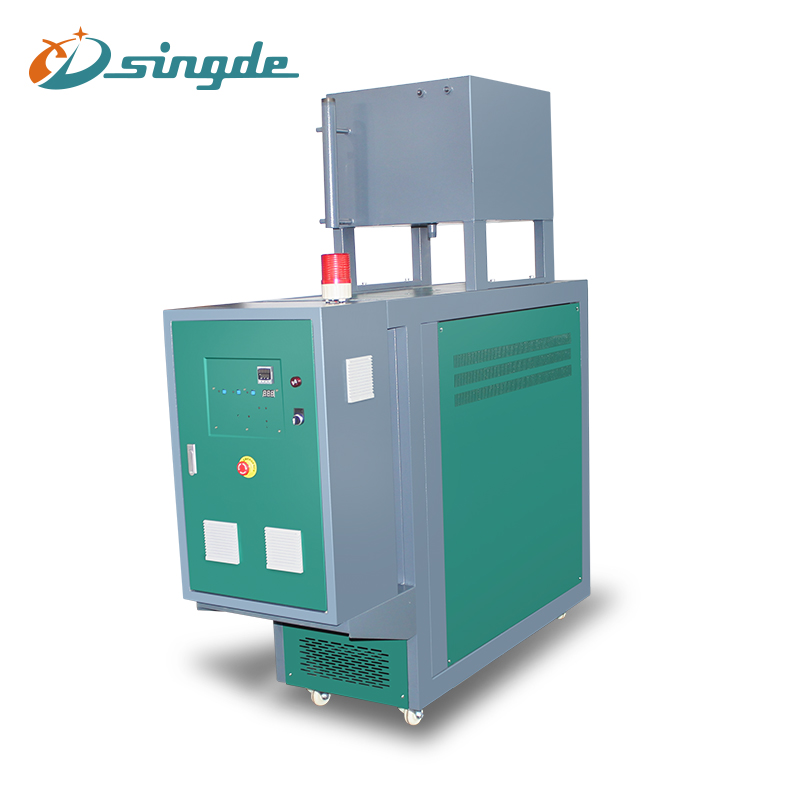

Related Products
 |  |  |
Specification
| Low noise CE long life air cooled water chiller price | |||
| Item/Model | SC-20A | ||
| Cooling Capacity | Kcal/h | 50HZ | 51600 |
| 60HZ | 61800 | ||
| KW | 50HZ | 60 | |
| 60HZ | 72 | ||
| Input Power | KW | 21.56 | |
| Power | 3PH380V 50HZ(200V/220V/415V 50HZ/60HZ) | ||
| Refrigerant | Type | R22(R134a/407c/404a/410a) | |
| Control Mode | Outside the balanced thermal expansion valve | ||

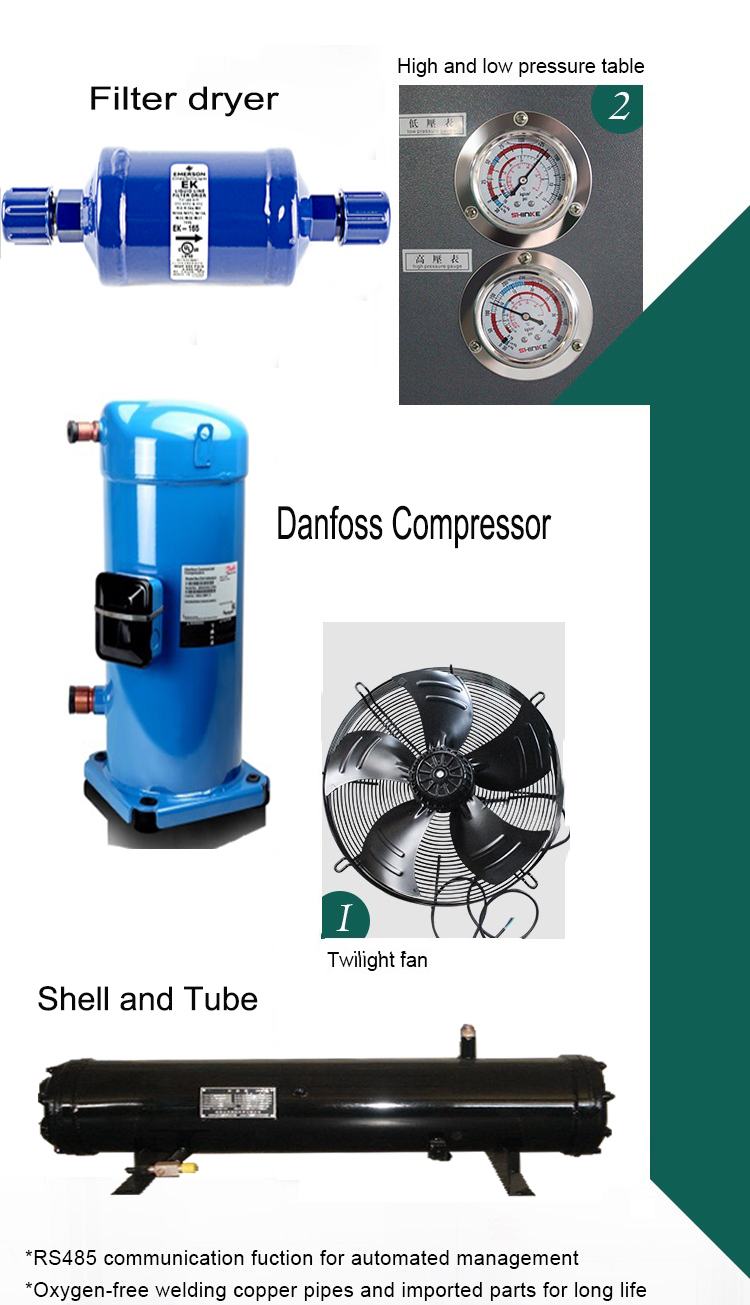

| Compressor | Type | Fully enclosed vortex type(Piston) | |
| Power(KW) | 7.5*2 | ||
| Condenser | Type | Efficient copper tube set of aluminum finned + Low noise external rotor fan | |
| Cooling Air Flow(m3/h) | 20000 | ||
| Evaporator | Type | Tank coil(Dry type shell and tube/Stainless steel plate evaporator) | |
| Frozen Water Flow(m3/h) | 10.3 | ||
| 12.11 | |||
| Water Tank Capacity(L) | 290 | ||
| Pipe Diameter(inch) | 2-1/2″ | ||
| Pump | Power(KW) | 2.25 | |
| Maximum Head(M) | 20 | ||
| Safety Protection | Compressor overheating/overcurrent/high and low pressure/over temperature /traffic/phase sequence/phase loss protection/exhaust overheating protection | ||
| Size | Length(mm) | 1700 | |
| Width(mm) | 1100 | ||
| Height(mm) | 1400 | ||
| Weight | KG | 730 | |
| Measures Exchange | 1KW=860kcal/h 1RT=3.024kcal/h 10000Btu/h=2520kcal/h |

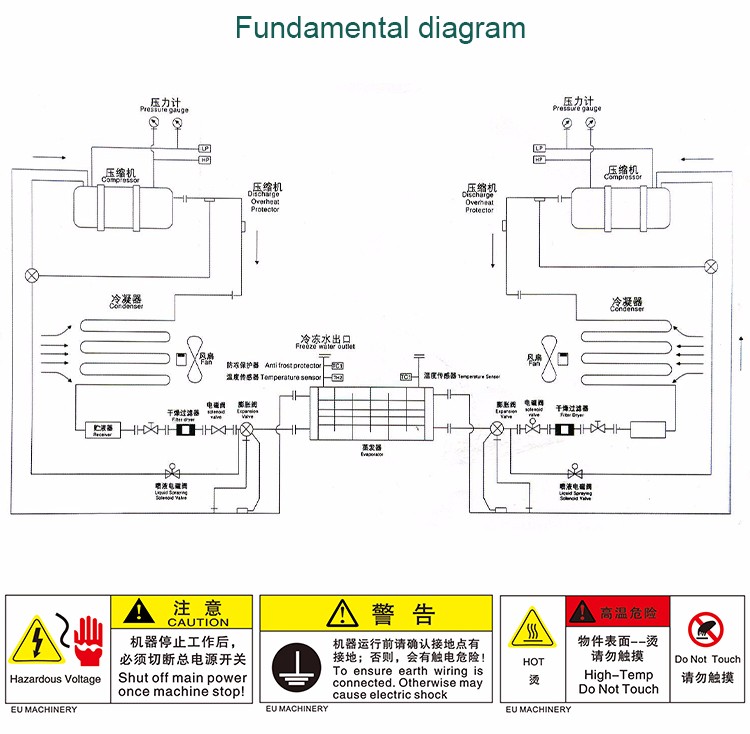

Working Principle
Best selling CE safe industrial chiller for plastics industry widely used in plastics industry,electronic industry ,electroplating industry ,mechanical industry,construction industry,vacuum coating,food industry,pharmaceutical industry.
Our Service
A. Order service
Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Payment-Production-Balance Payment-Delivery-Documents Dispatch- Goods collection-Installation-Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C. After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging, operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.
FAQ
1. What makes you different with others?
1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour.
2)Our quick manufacturing time For Normal orders, we will promise to produce within 15-20 working days. We can ensure the delivery time according to the formal contract
2. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time. 3.Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in heat pump design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.
4.What is your terms of delivery?
We accept FOB, CFR, CIF, EXW etc. You can choose the one which is the most convenient or cost effective for you.
5. What is your payment terms?
1) T/T 40% deposit, T/T balance 60% paid before shipment;
2) T/T 40% deposit, balance 60% paid through irrevocable L/C at sight;
3) Other payment terms are negotiable.
6. What about warranty?
One year, all spare and accessory parts of products will be free.
