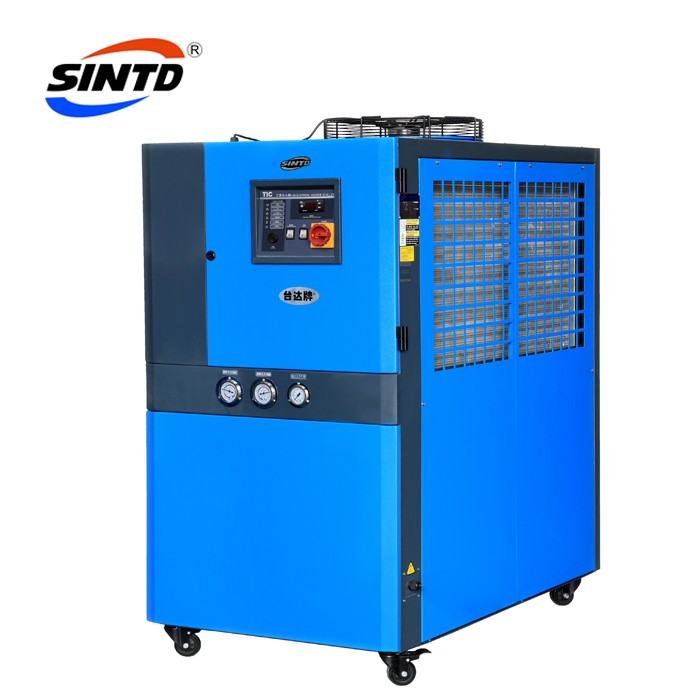

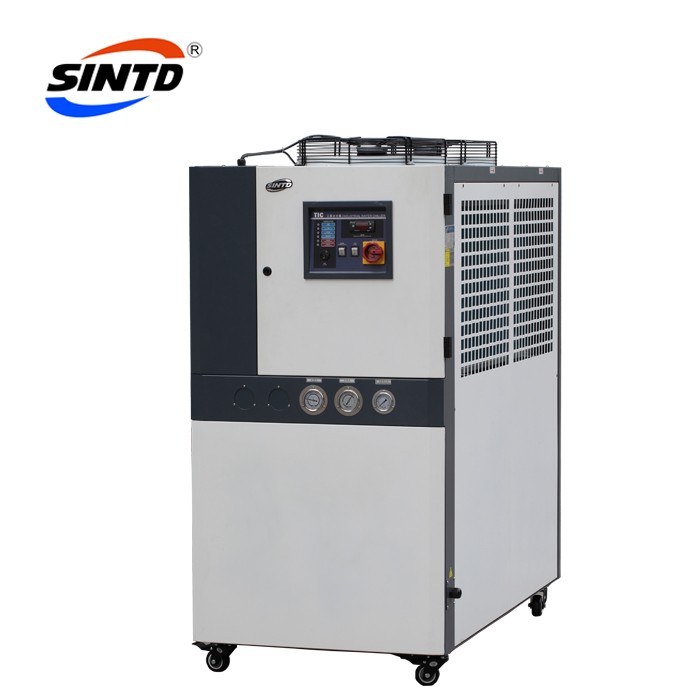

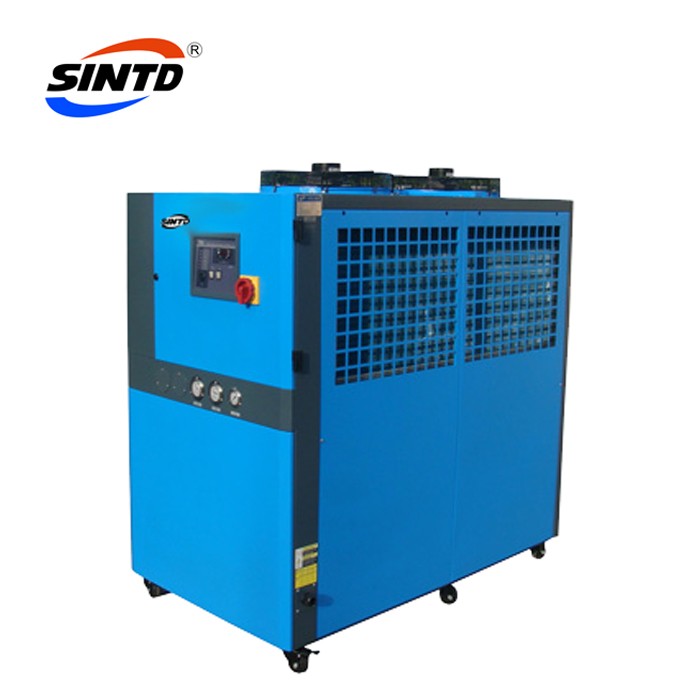

Excellent quality Air cooled Chiller

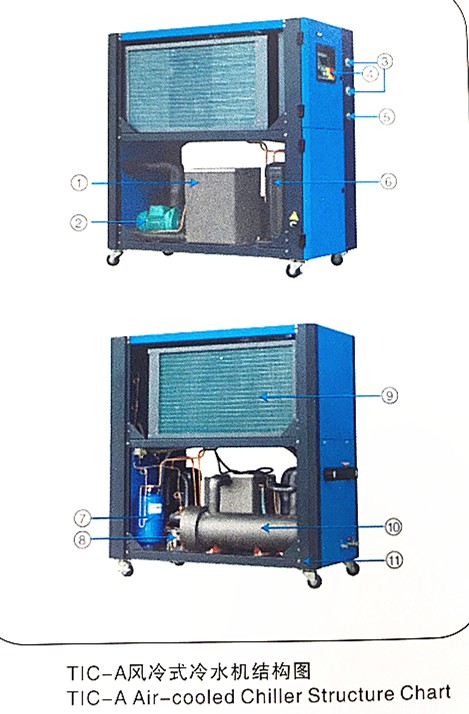

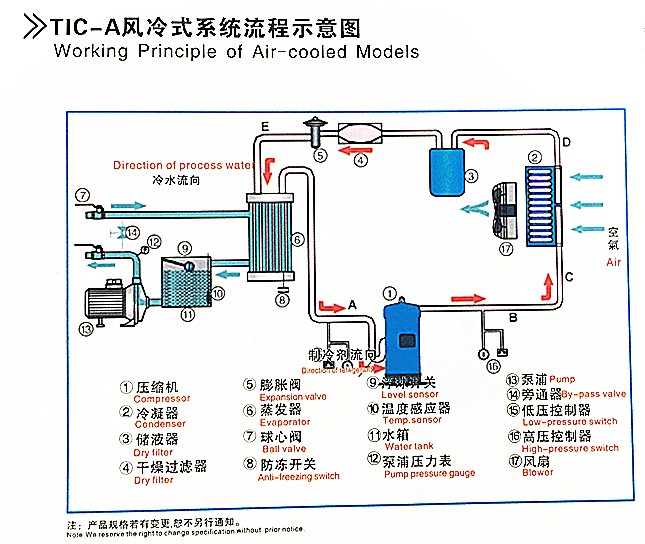

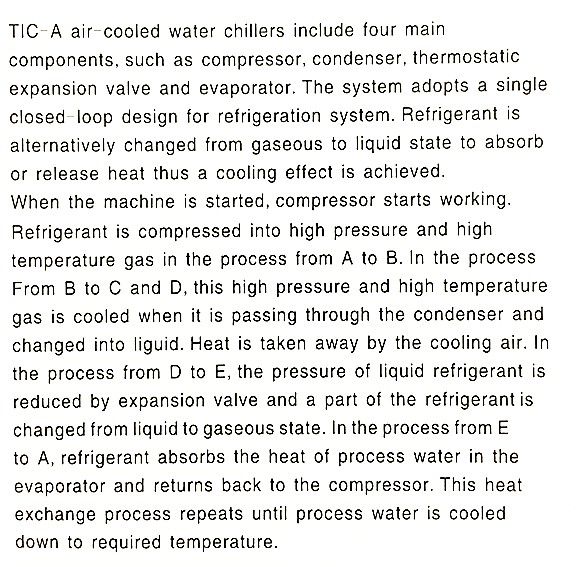

The TIC-W series of air-cooled chillers use a single closed-loop design for pressurised refrigerant. All models are equipped with compressor and motor overload protection, phase shortage and reversal alarms, anti-freeze thermostat, pressure gauges, etc. They feature excellent performance and a long lifespan. The series of working flow is based on the basic principle of heat exchange. It's applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.

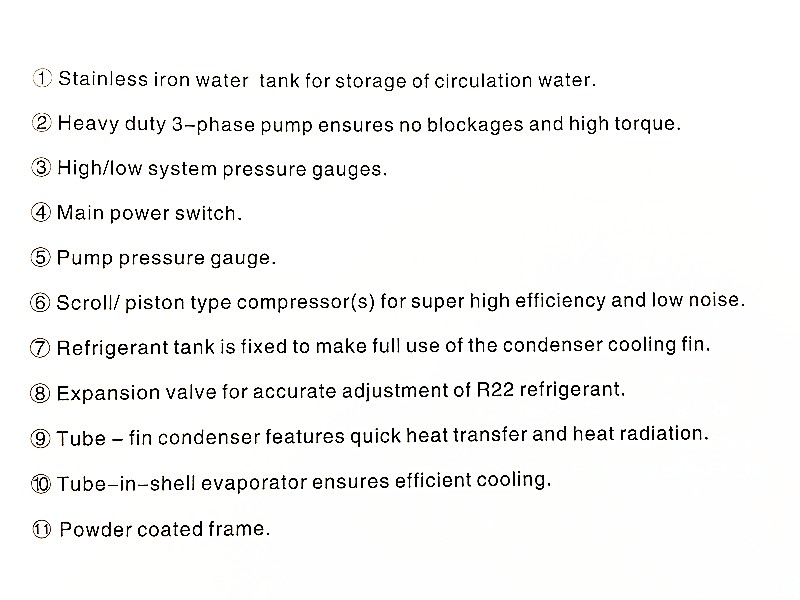

Main Features:
1) Cooling capacity from 7℃ to 35℃.
2) Stainless insulated water tank and anti-freeze thermostat.
3) R22 refrigerant used as standard for efficient cooling.
4) Refrigeration loop controlled by high and low pressure switches.
5) Compressor and pump overload relays.
6) Italian made temperature controller maintains an accuracy of ±1℃.
7) Compact design, easy to operate and maintain.
8) Low pressure pumps are standard configurations, while middle or high pressure pumps are optionally available.
9) Level meter of water tank is available as an option.
10) All adopt Copeland compressores.
11) TIC-A adopts tube-fin condenser design without any need of cooling water for excellent heat transferand rapid cooling.

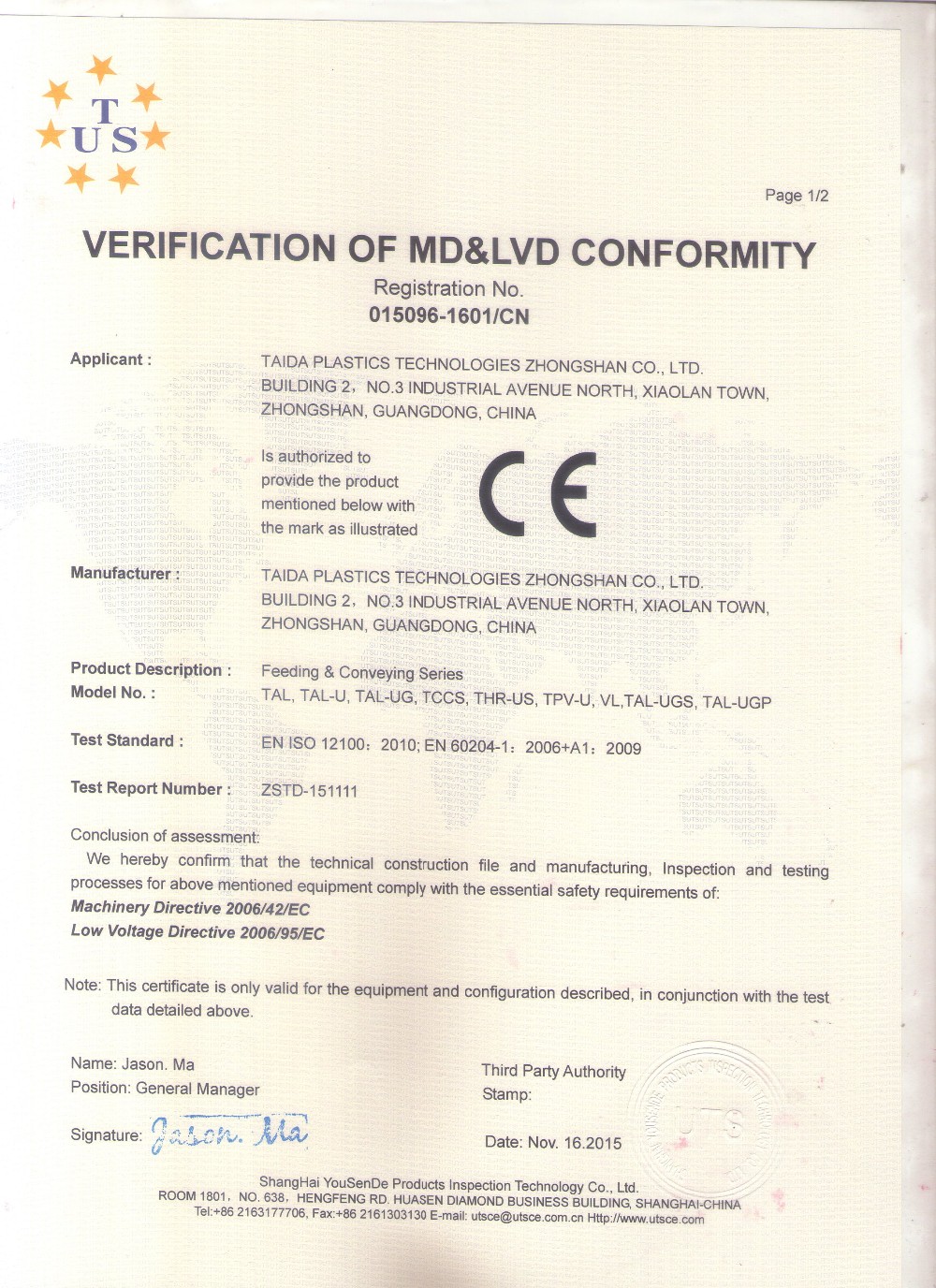

12) Upon request, it can be built to comply with worldwide electrical safety standards(For example:CE,UL,CSA,JIS etc).

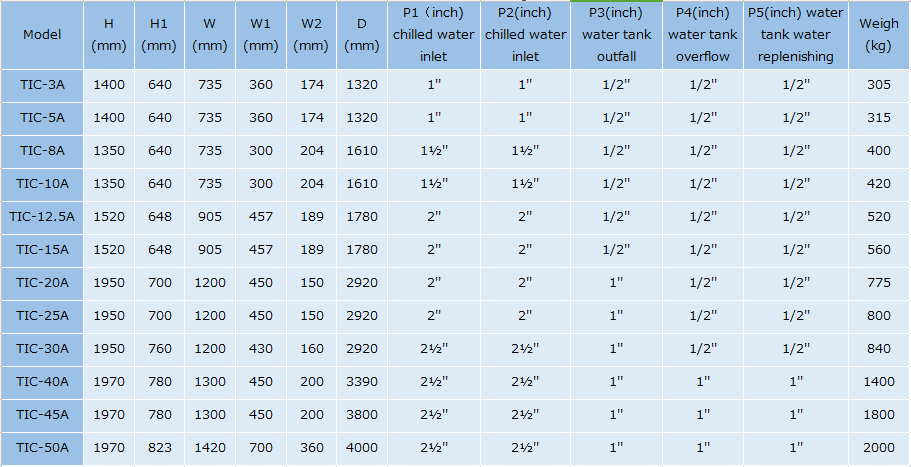

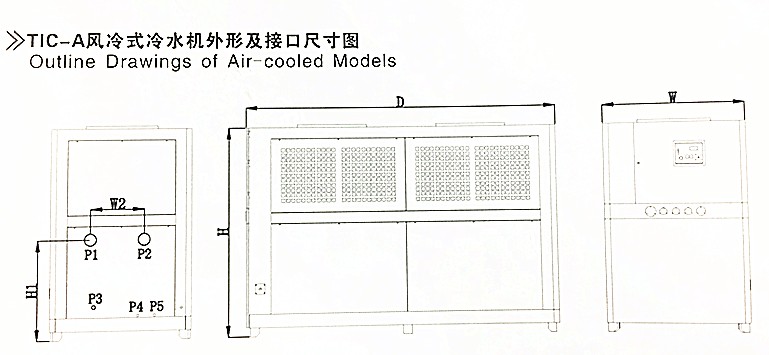

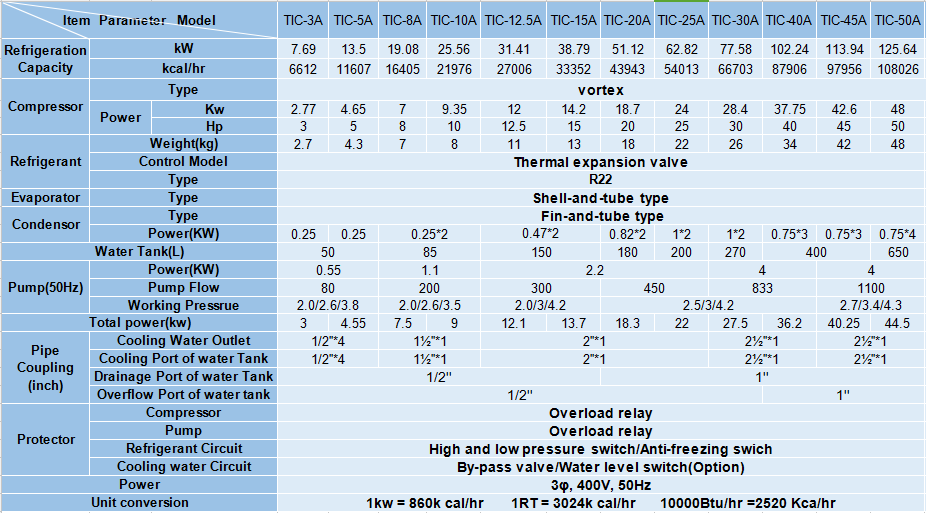

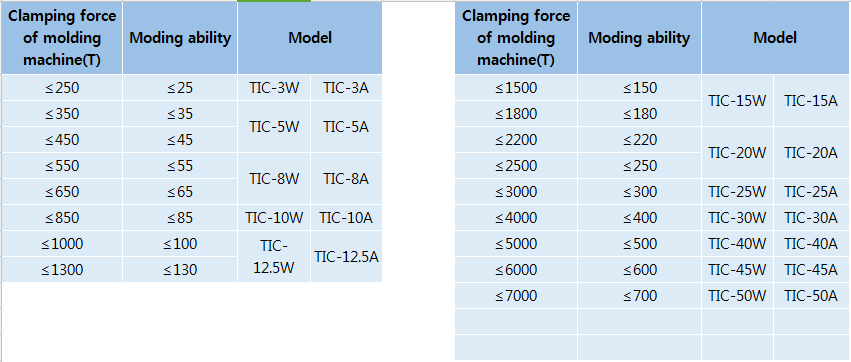

Specification:
Note：
1) Refrigeration capacity is tested under the condition that cold water outlet temperature is at 12℃ and ambient.
2) Apiston type compressor is used when power supply is 3φ, 230V.
3) Environment-friendly R407 C refrigerant is optional.(Model denotes''U'', such as TIC-5A-U).
4) This is pump is used as standard either for domestic or Southeast Asia; medium(Model denotes''P'', such as TIC-5A-P) or high pressure pump(Modle denotes''HP'', such as TIC-5A-HP) are optional for installation on customer's demands.
5) Air-cooled chillers are best to be used in the environment with ambient temperature under 35℃.
6) Demands on special voltage of power supply could be satisfied.
| Packaging | |
| Size | 1400 (L) * 174 (W) * 735(D) |
| Weight | 305kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. |
High efficient Industrial Water-cooled Water Chiller
91.8% Response Rate

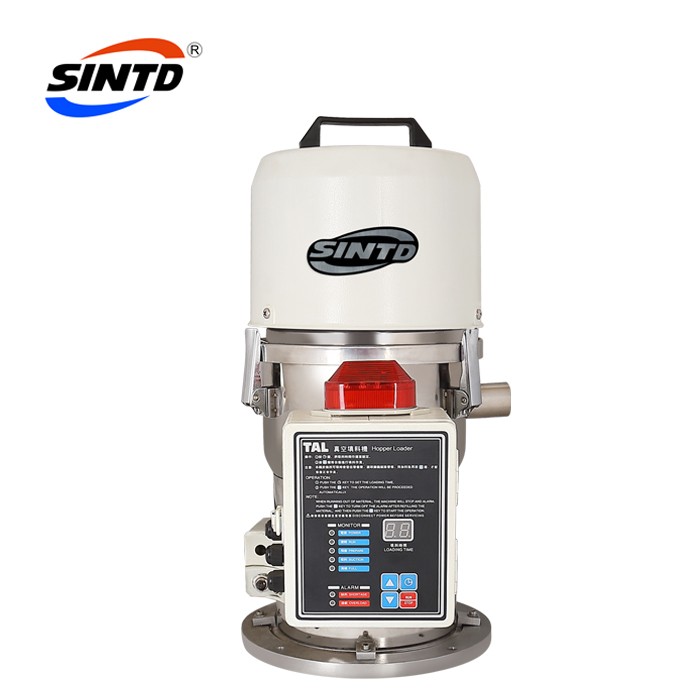

High efficiency automatic Euro self-contained vacuum Hopper Loader for plastic material
91.8% Response Rate

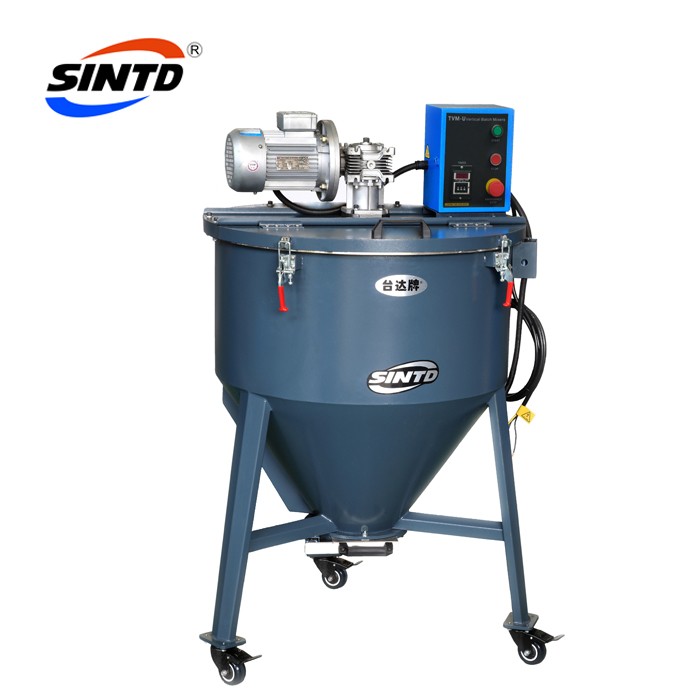

Euro Stainless steel OEM/ODM plastic vertical batch mixers
