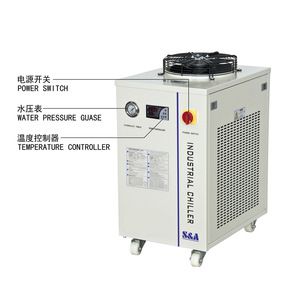

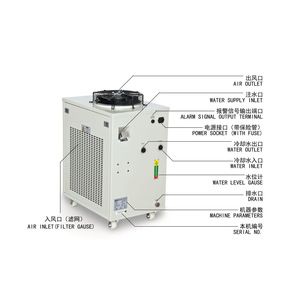

Water-cooled industrial chiller cw5300 water industrial chiller
Product Description
CW-5300 series is high-precision compression refrigeration water chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.
Features
1. 1800W cooling capacity; optional environmental refrigerant;
2. ±0.3℃ precisely temperature control;
3. The intelligent temperature controller has 2 control modes, applicable to different applied occasions;
with various setting and display functions;
4. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection,
water flow alarm and over high / low temperature alarm;
5. Multiple power specifications; CE ,RoHS and REACH approval;
6. Long working life and simple operation;
Specifications
One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically
switch to appropriate operating temperature.
CW-5300AH : applied to a cool single 150W CO2 laser tube;
CW-5300AI : applied to a cool single 200W CO2 laser??e, a single 100W laser diode, a single 50W-75W solid-state lase, a single 100W CO2 RF laser tube,a single 18KW CNC spindle or welding equipment;
Optional: CW-5302 dual water inlet and outlet series; heat booster; water filter.
| model | CW-5300AH | CW-5300BH | CW-5300DH | CW-5300AI | CW-5300BI | CW-5300DI | CW-5300AN | CW-5300BN | CW-5300DN |
| voltage | 220V | 220V | 110V | 220V | 220V | 110V | 220V | 220V | 110V |
| frequency | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz | 50Hz | 60Hz | 60Hz |
| current | 0.25~4.93A | 0.25~5.03A | 0.45~7.61A | 0.7~5.38A | 0.7~5.48A | 0.45~8.16A | 2.3~7A | 2.3~7.1A | 4.2~12A |
compressor power | 0.615KW | 0.72KW | 0.68KW | 0.615KW | 0.72KW | 0.68KW | 0.615KW | 0.72KW | 0.68KW |
| 0.82HP | 0.96HP | 0.91HP | 0.82HP | 0.96HP | 0.91HP | 0.82HP | 0.96HP | 0.91HP | |
| capacity | 6274Btu/h | 7638Btu/h | 7266Btu/h | 6274Btu/h | 7638Btu/h | 7266Btu/h | 6274Btu/h | 7638Btu/h | 7266Btu/h |
| 1.84KW | 2.24KW | 2.13KW | 1.84KW | 2.24KW | 2.13KW | 1.84KW | 2.24KW | 2.13KW | |
| 1586Kcal/h | 1931Kcal/h | 1837Kcal/h | 1586Kcal/h | 1931Kcal/h | 1837Kcal/h | 1586Kcal/h | 1931Kcal/h | 1837Kcal/h | |
| refrigerant | R-22 / R-410a | ||||||||
refrigeration charge | 650g | 750g | 680g | 650g | 750g | 680g | 650g | 750g | 680g |
| precision | ±0.3℃ | ||||||||
| reducer | Capillary | ||||||||
| Protection | Overcurrent protection for compressor, flow alarm, over temperature alarm | ||||||||
| Pump power | 0.05KW | 0.01KW | 0.37~0.55KW | ||||||
| Tank capacity | 12L | ||||||||
| Inlet and outlet | Rp1/2" | ||||||||
| Max. lift | 12M | 25M | 28~45M | ||||||
| Max. flow | 13L/min | 16L/min | 70L/min | ||||||
| N.W | 44Kgs | 50Kgs | |||||||
| G.W | 50Kg | 56Kgs | |||||||
| Dimension | 59 x 38 x 74 cm | ||||||||
| Package dimension | 67 x 51 x 93 cm |
