2 Years Warranty will be offered !

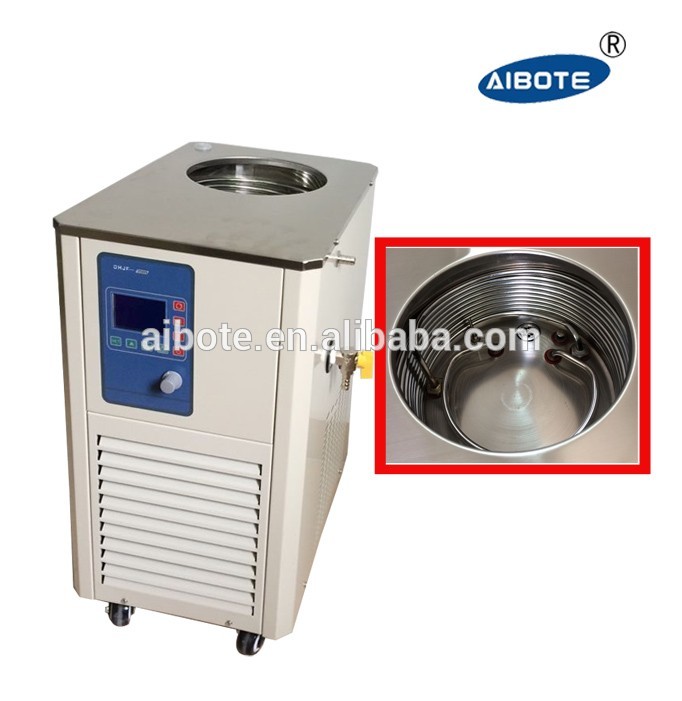

5L,-40degree Thermostatic water cooling heated 99 degree circulating chiller
Use:
1.An innovate design according to Japan Tokyo physical and chemical equipment company at the similar products.
2.It can have low temperature reactions instead of dry ice and liquid nitrogen and has quite high precision of temp control.
3.Suitable for scientific research, biology, physics, medicine, chemical industry and other departments to do low temp experiments
Features:

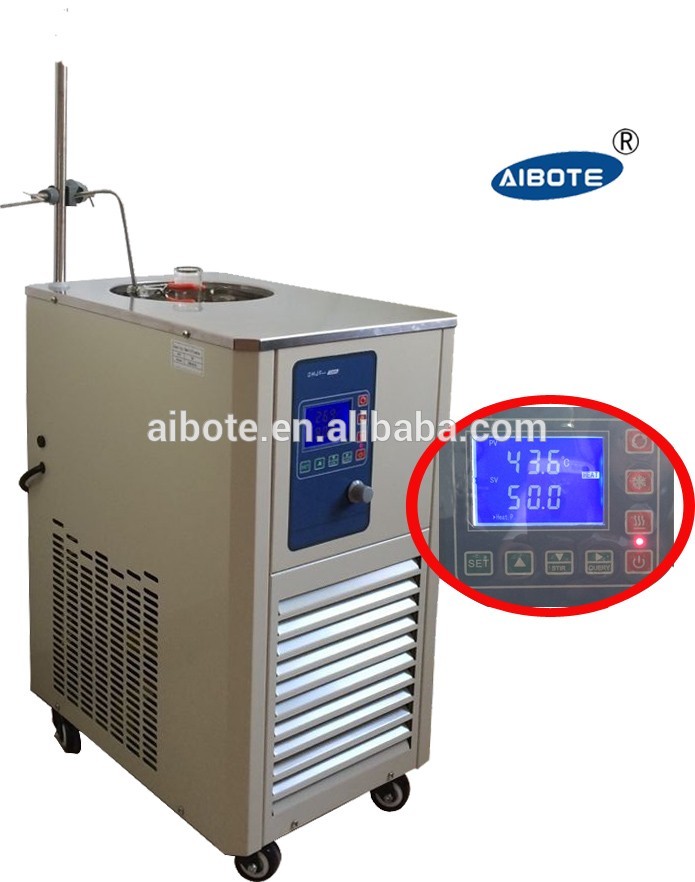

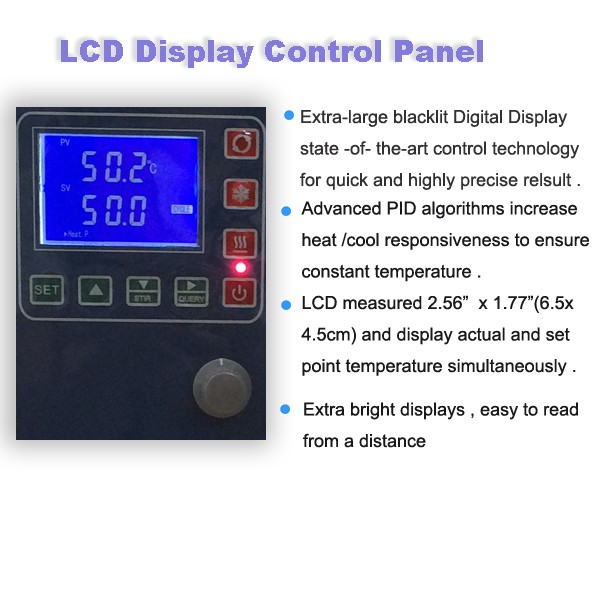

1.Temperature setting and display .Digital
2.The fully closed mixer ,guarantee the stability magnetic stir.
3. Compressor and Oil separator: both imported from Danish Danfoss original Equipment
4.Ternary compound cascade refrigeration
5. .high and low pressure control
6. The Refrigerant R50D , R13, R14
7 .Self-develop and design controller ,the microcomputer controller,owing delay protection function
8 .Use the balance of heat to cold reactions, so that the temperature accuracy of ± 0.1 °C
9 .Shell material : cold-rolled plate , electrostatic spray
Specifications
Model | ABTDHJF-4005 |
Volume( L ) | 5L |
Lowest Temp (℃) | -40 ℃ |
Working Temperature rang | -40~99℃ |
Cooling Capacity (W) | 20-1400W |
Flow (L/min) | 14L/min |
Lift (m) | 4-6 |
Coolant Temp | -40 |
Temp Accuracy | +/-0.2℃ |
Temperature control | PID Auto control |
Stirring | 50W, 0-1500 RMP |
Temperature Display | Digital Display |
Thermocouple type | PT100 |
Voltage Supply | 208V-220V |
Machine Size | 48 x35x 65CM |

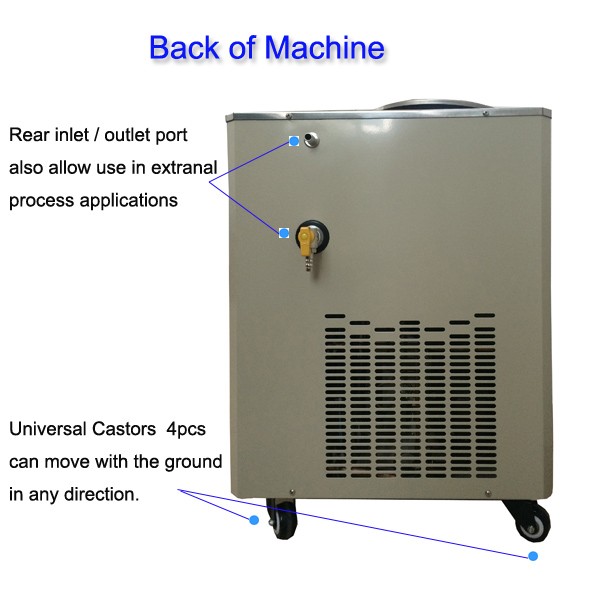

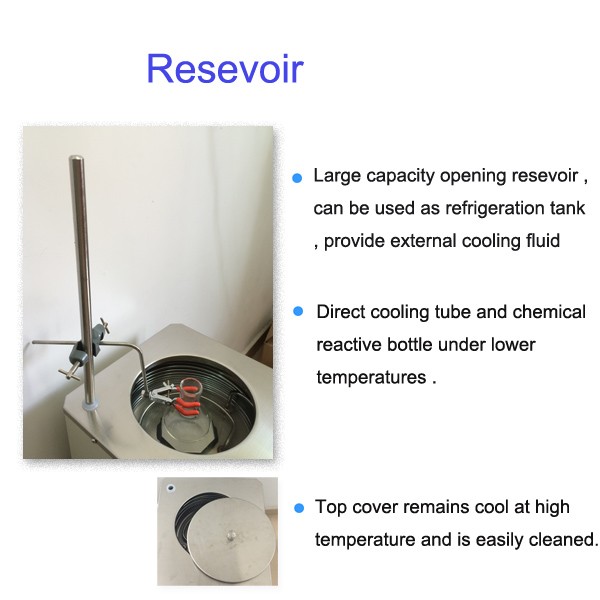

DETAIL FOR MACHINE
