Specifications

Mini Water Chiller
LCD blue tape crystal display
Adopt peltier cool and heat
Naturally cool and heat

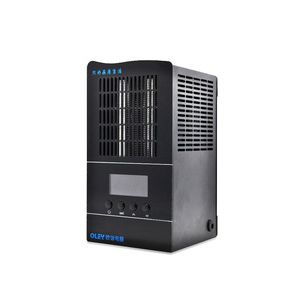

Mini Digital Aquarium Water Chiller

 Model: LS-02

Features:

Ø  Graceful appearance

Ø  Special designed for cooling and heating small volume liquid;

Ø  Adopt peltier cooling and heating system;

Ø  Low noise design without big noise of compressor;

Ø  LCD blue tape crystal display, with dynamic icons;

Ø  Naturally cooling and heating, without sudden temperature change.

Ø  Can set differential of cool and heating separately

Ø  Automatically convert between cooling and heating

Parameters:

Ø  Temperature measuring range: 0~50°C

Ø  Temperature controlling range: 16~42°C

Ø  Resolution: 0.1°C; Accuracy: ±1°C

Ø  Power supply: 100VAC~240VAC, 50/60HZ

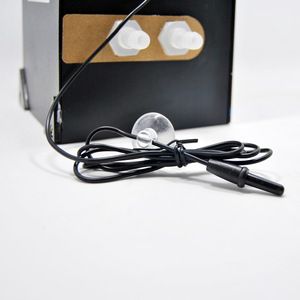

Ø  Input: 1 NTC sensor(waterproof); Sensor wire: approx. 2m

Ø  Plug: AU, EU, USA, UK or other type; Power line: about 2.5m

Ø  Adaptive water pipe: inner diameter 8mm(not included)

Ø  Optional: Adaptive mini water pump 12VDC (the picture is just for reference)

Ø  Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

Ø  Product: 205×110×110(mm); Screen size: 50×23(mm);

Ø  Net weight: approx. 2000g; Package weight: approx. 2500g

Product Selection:

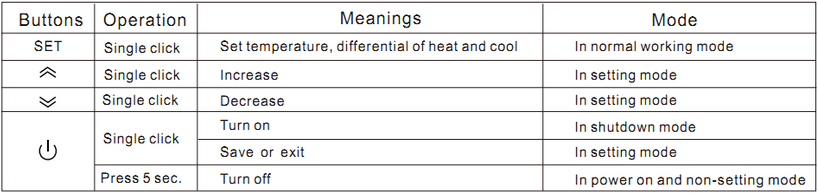

Buttons Operation:

When in setting mode, if no operation for 15 seconds, it will save and exit automatically.

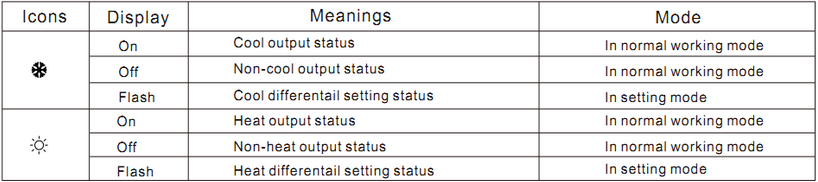

Icons Explanation:

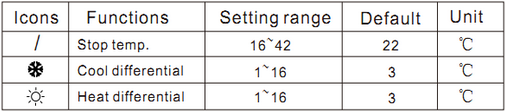

Function Menu:

Function Description:

Temperature controlling

If real measuring temp.≥stop temp.+cool differential, then cool output

If real measuring temp.≤stop temp., then stop cool output

If real measuring temp.≤stop temp.-cool differential, then heat output

If real measuring temp.≥stop temp., then stop heat output

Packing List:

1.      Chiller x1(with sensor);

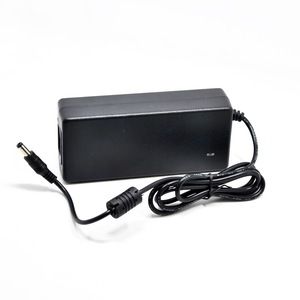

2.      AC adaptor x1;

3.      DC 12V Pump: optional;

Water pipe: not included (recommend silicone hose)

Friendly Reminder:

We can provide customized service for all of our products with reasonable price.
