Factory Direct Supplier Air Cooled Industrial Water Chiller Hot Sale
Product Detail
| Water Chiller | scroll compressor |
| Cooling form | air-Cooled |
| Use | Indutrial |
| Refrigerant | R22 or R404a |
| Compressor | Semi-hermetic screw |
| Compressor Brand | Daikin,copeland |
| Compressor power | 2.2~30kw |
| Flow control device | Thermal Expansion Vale |
| Compressor type | Semi-hermetic screw |
| Safety device | Overload,high/low cut,safety valve,frozen |
| Product Keywords | air cooled industrial water chiller chilling |
Features:
Unit Features (Air-cooled Type):
*Packaged design,cooling tower and pump are not needed.
*Machine room is not needed,chiller water is builtin,so it
Is suitable for outdoor installation to save space
*Large cooling capacity.
Applications:
*Widely applied to plastic,electroplating,hardware,
dyeing and finishing,injection molding,cold bath sauna etc.
Unit Features(Water-Cooled Type):
*Could be installed in machine room
*Chilled water pump built in
*Elegant appeatance,small size
*Large cooling capacity
Quality assurance:
1. Our product components guarantee 100% new, never use any second-hand parts.
Product use:
In addition to the traditional industrial chiller air conditioning and refrigeration;Is also used in laser technology, welding plastic molding, injection molding, extrusion, blow bottles, hot LiSu type;Mechanical machining, the machining, casting;Surface treatment, electroplating, electrophoresis,Medical equipment, medicine production, electronics, circuit board production, electronic chip manufacturing;Chemical industry, papermaking, pharmaceutical industry, food processing industry;Aluminum, aluminum alloy, toughened glass, coated glass production.Ultrasonic erase, jewelry processing;Leather, fur processing, printing ink production;Aquaculture and other industries, etc.;You can see the figure of refrigeration units.
Main Features
* We also supply the machine based on the specification provided by the customers.
| Model | Type | Air Cooled | |||||
| HNAC03 | HNAC04 | HNAC05 | HNAC06 | HNAC08 | HNAC10 | ||
| Cooling Capacity | BTU | 29002 | 37873 | 48450 | 58345 | 77452 | 96901 |
| kcal/hr | 7310 | 9546 | 12212 | 14706 | 19522 | 24424 | |
| Kw | 8.5 | 11.1 | 14.2 | 17.1 | 22.7 | 28.4 | |
| Compressor power | Kw | 2.2 | 3 | 3.73 | 4.4 | 5.59 | 7.5 |
| Cooling air | M3/H | 3910 | 5270 | 6460 | 8670 | 11220 | 15130 |
| CFM | 2300 | 3100 | 3800 | 5100 | 6600 | 8900 | |
| Chilled water pump | Kw | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 0.75 |
| Chilled water flow rate | M3/H | 4.2 | 4.2 | 6 | 6 | 6 | 6 |
| Water tank | LITER | 40 | 40 | 85 | 85 | 85 | 85 |
| Power input | V/Ph/Hz | 380/3/50 | |||||
| Refrigerant | R22 | ||||||
| Dimension | L(mm) | 900 | 1150 | 1150 | 1150 | 1676 | 1676 |
| W(mm) | 690 | 700 | 700 | 761 | 761 | 761 | |
| H(mm) | 1230 | 1260 | 1260 | 1778 | 1778 | 1778 | |
| Weight | Kg | 130 | 140 | 160 | 230 | 330 | 410 |
| Chilled water pipe | In | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" |
| Safety pipe | In | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" | 1-1/2" |
Attention:
The above is only the partial parameters, the different parameter correspondence difference in price, the details please consult us .

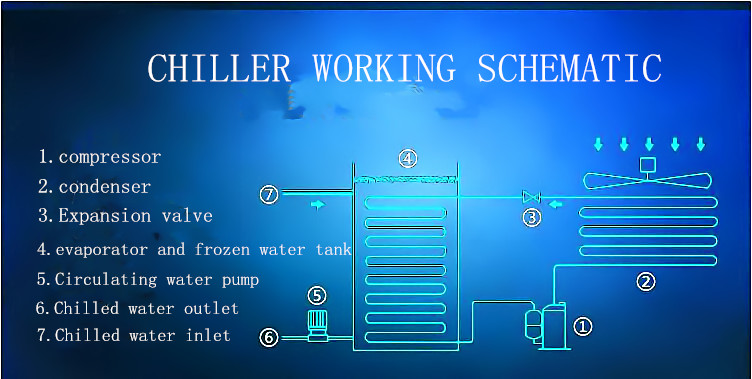

Schematic diagram of water chillers
Dongguan Huani refrigerating equipment Co.Ltd has more than 20 years of experience in producing all kinds of central air conditioning host,and supporting the production of a variety of terminal equipment of central air conditioner,set comprehensive enterprise product design,manufacturing,installation and repair as one of the.
Main products:chiller series,screw chiller,Low-temperature screw Chiller,compact water-cooled chiller,air-cooled heat pump chiller,air/water for industrial cooling water machince.conditioner series :floor type water cooled air conditioner,water-cooled cleaning air conditioning with constant temperature and humidity,remote air jet water cooling ceiling air conditioning machine, water source split air conditioning.The cold wind ark series:floor-type chilled water air handing unit,
ceiling-type chilled water air handing unit etc.
Our company on every step of our progresses,there are the support and kindly help from our customers.We are sincerely expecting your cooperation to create resplendent future together.
Q1.What’s your advantage? Why we choose you?
A:1)20 Years experience of test refrigerating equipment production and R&D.We have the most professional techniques and team. More advantage in price
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
Q2.What types of payment do you accept?
A:We accept T/T,D/P,L/C,more pay channels are open.30% Deposit, 70% balance should be paid before shipment
Q3.How do you ensure the quality of products?
A:Quality and integrity is our corporate culture, each product will pass strict inspection to the factory.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
