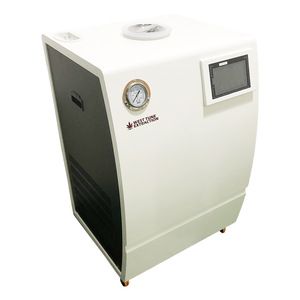

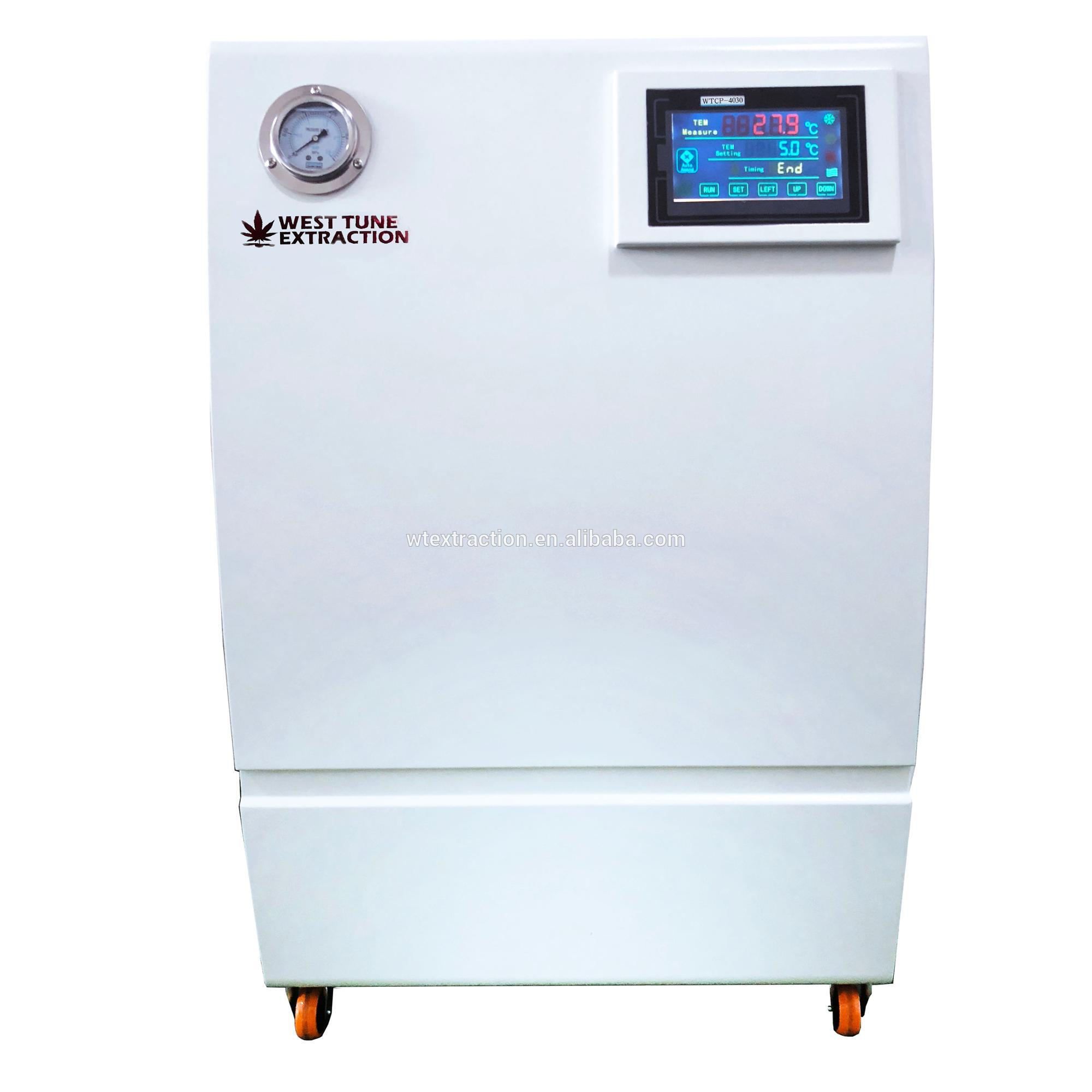

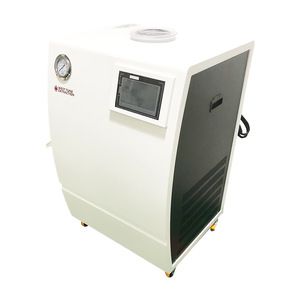

West Tune WTCP-4030 Rapid Cooling Recirculating Chiller with 20L/min Pump
West Tune WTCP-4030 rapid cooling recirculating chiller is an ideal model for applications such as 50L rotary evaporator, vacuum freezer dryer, recycling water type vacuum pump, uv spectrophotometer etc instrument constant temperature, the temperature of the chemical reaction multi-function homework and drug store. This system can also be used as a replacement to tap water cooling in laboratory applications.

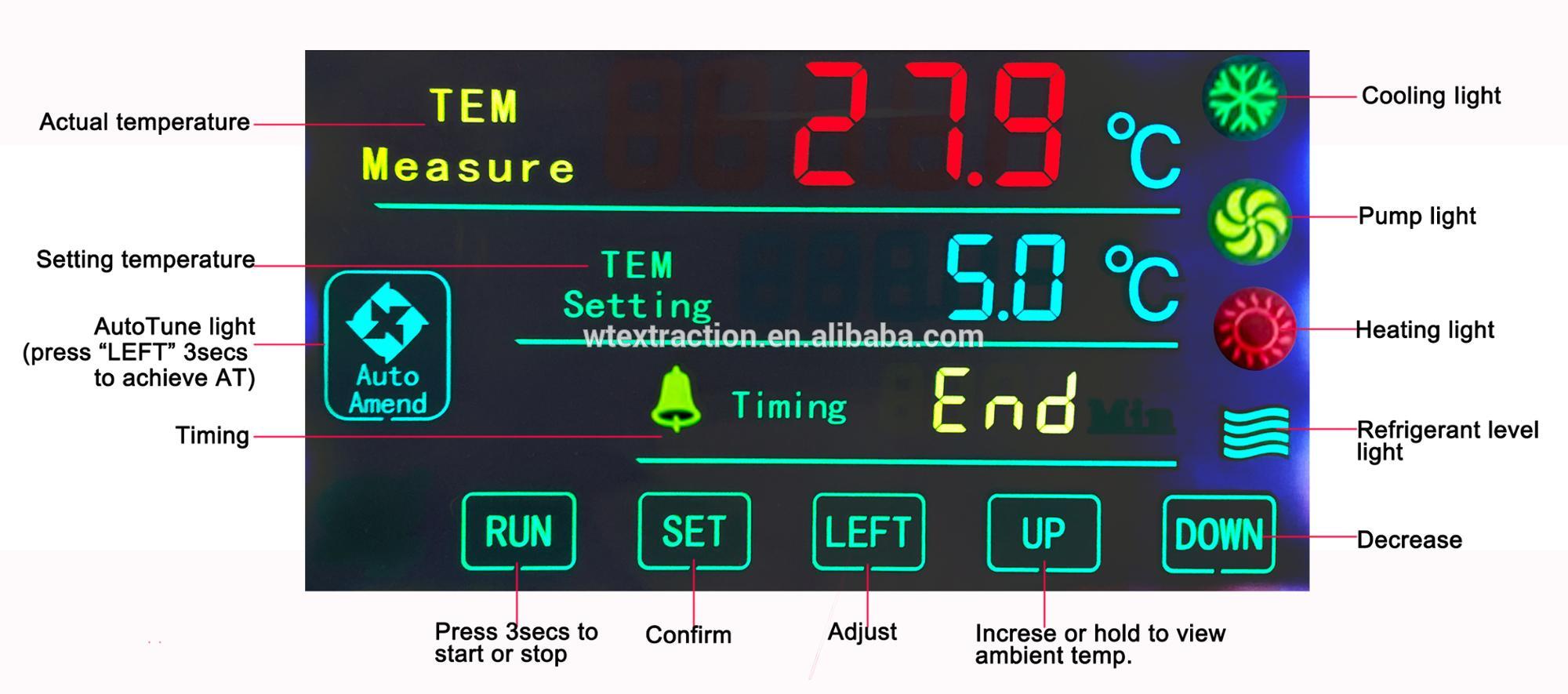

LCD controller diagram

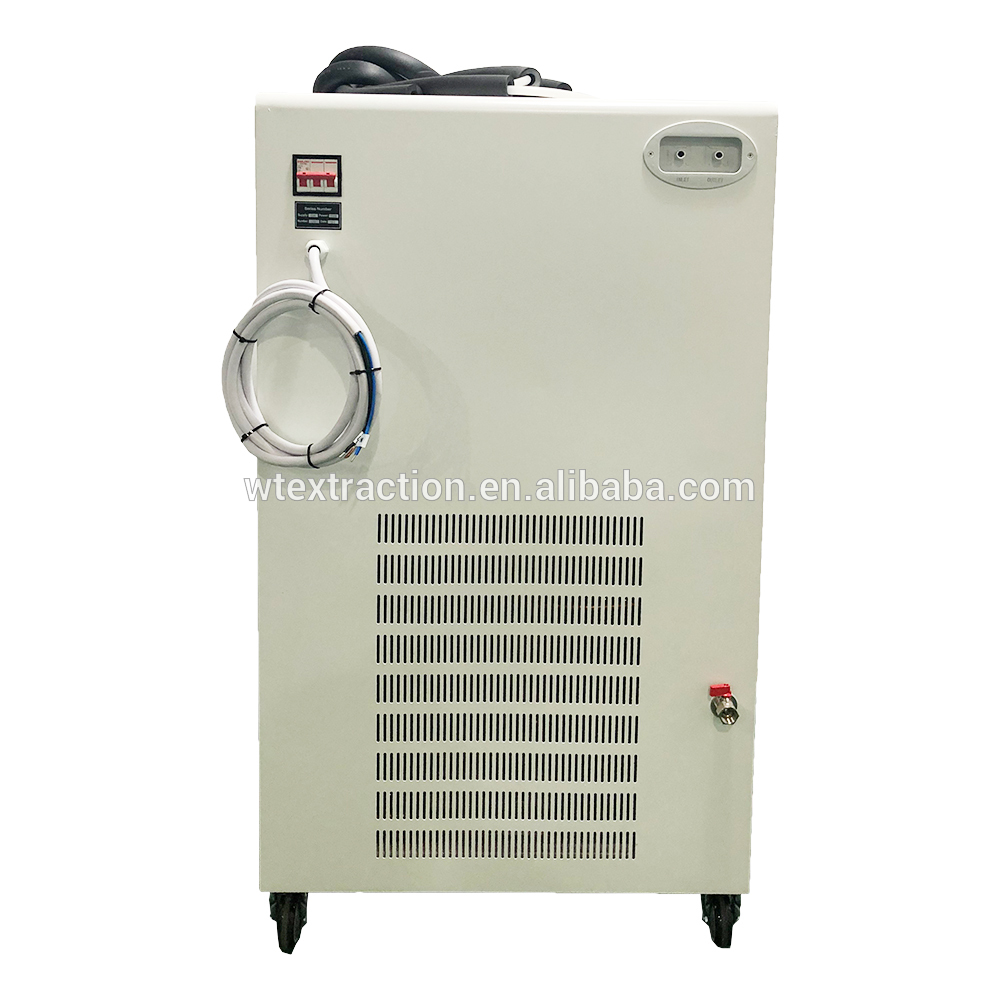

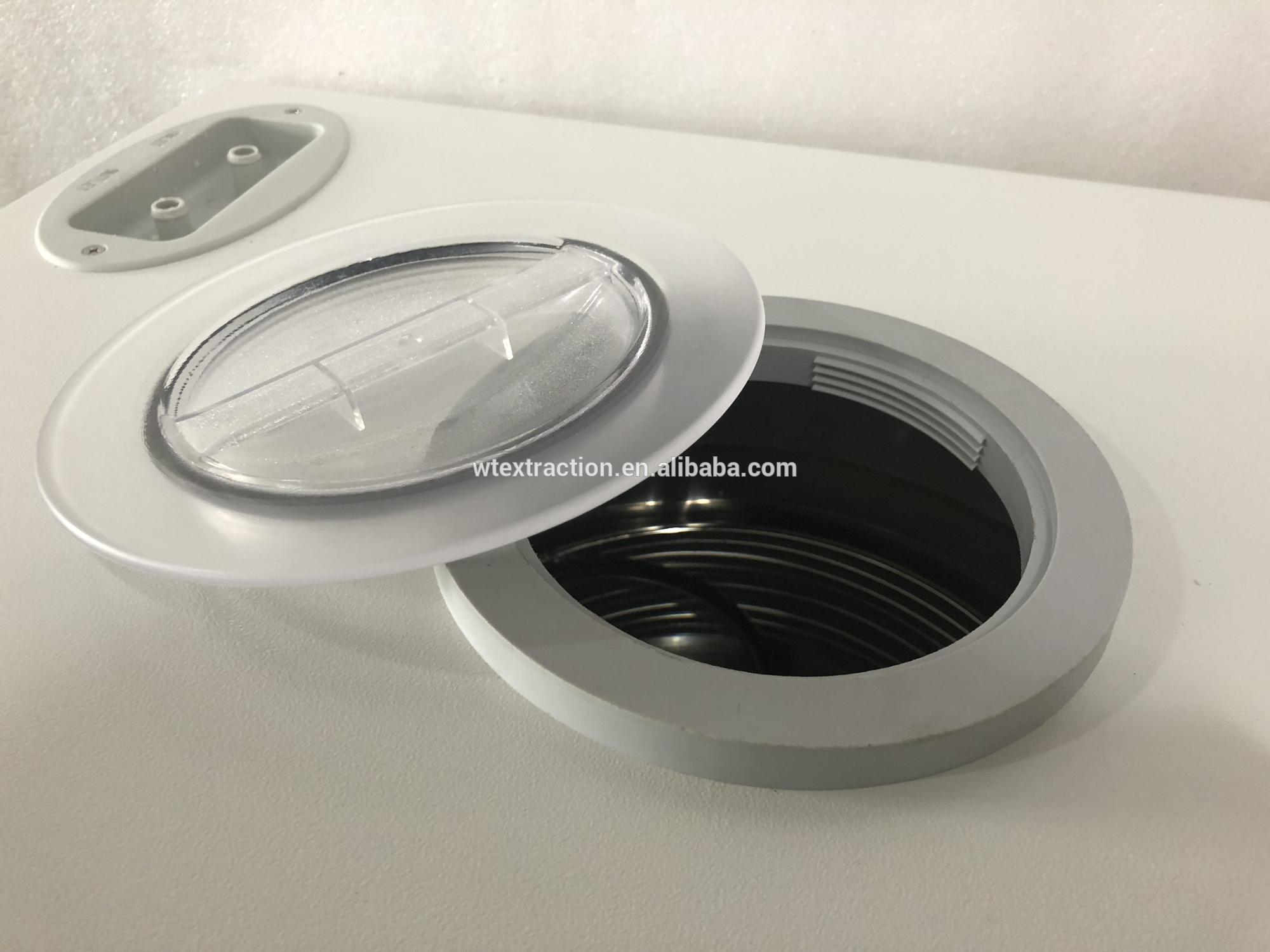

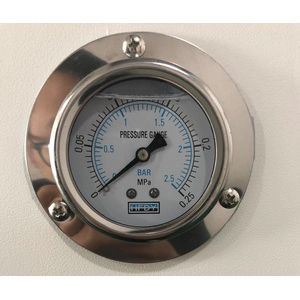

More product pcitures:
Features:
Powerful cooling capacity 6300w at 0°C
Pump flow max. 20 liters/min
7" TFT touch screen controller
No dry ice or liquid nitrogen needed
ANSI standard all stainless steel reservoir
All steel construction for durability
Plug and play, no assembly required
Specifications
Voltage | 220V 60Hz Single Phase |
Compressor | Danfoss (made in Germany) |
Refrigerant | R404A |
Cooling capacity | 6300w at 0°C |
Circulating pump | 0~20 liters/minute, adjustable |
Lift | 10meters |
Chamber Volume | 30L (7.9Gallon) |
Chamber Material | 304 stainless steel, polished |
Controller | PID controller with LCD 7" TFT touch screen |
Temperature range | -40 °C to RT |
Temperature accuracy | ±2 °C |
Working condition | -15°C ~ 25°C |
Inlet port | 3/8" hose barb |
Drain port | 3/8" hose barb with on / off valve |
Dimensions (LxWxH) | 32.2 x 28.3 x 52" |
Weight | 385 Lbs |

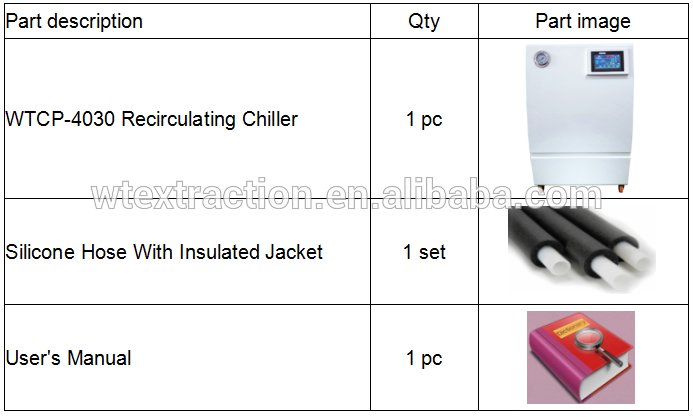

Packing list:
