AC220V CW5200AH water cooling chiller for laser tube

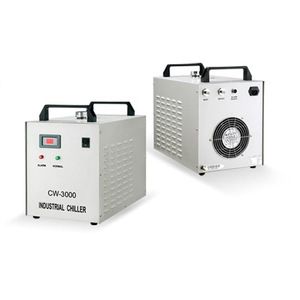

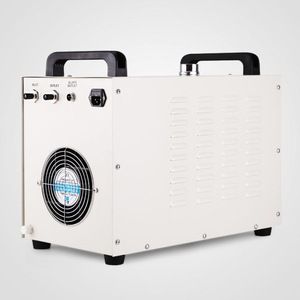

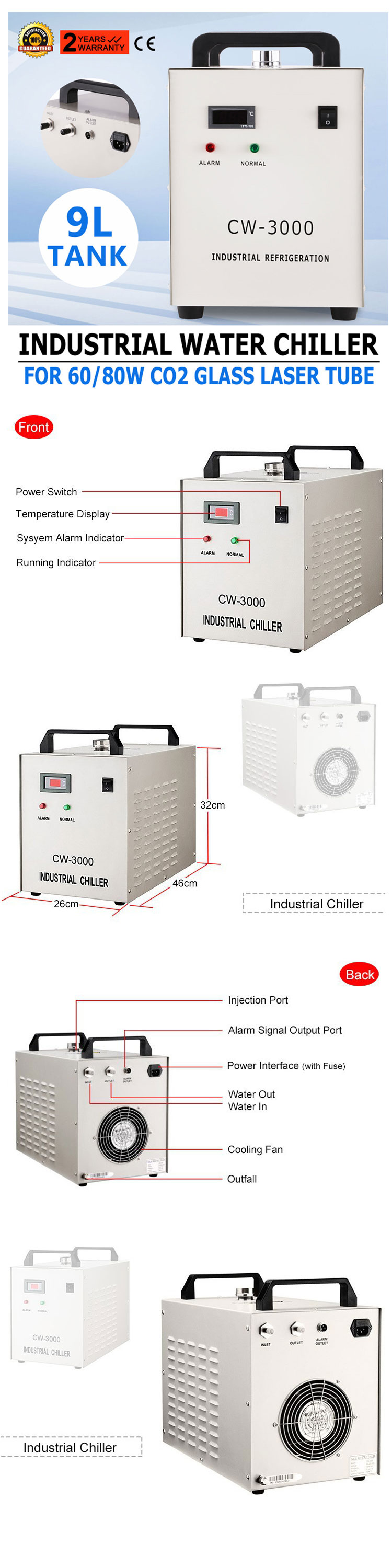

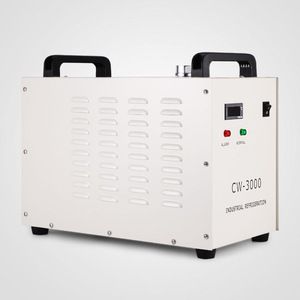

CW-3000 belongs to radiating type Industrial Water Chiller,with energy saving,high cost performance,good protection and alarm system.
It’s mainly used on the equipment for heat exchange between the heat and the air environment. The water temperature of cw-3000 cooler is related to ambient temperature, so its temperature control cannot be adjusted by people.
CW-3000 applied to cool a single 60W,80W CO2 laser tube.
Features:
1. Radiating capacity: 50W / ℃;
2. Small thermolysis water cooler, energy saving, long working life and simple operation;
3. With completed water flow and over high temperature alarm functions;
4. Multiple power specifications; CE approval;RoHS approval; REACH approval

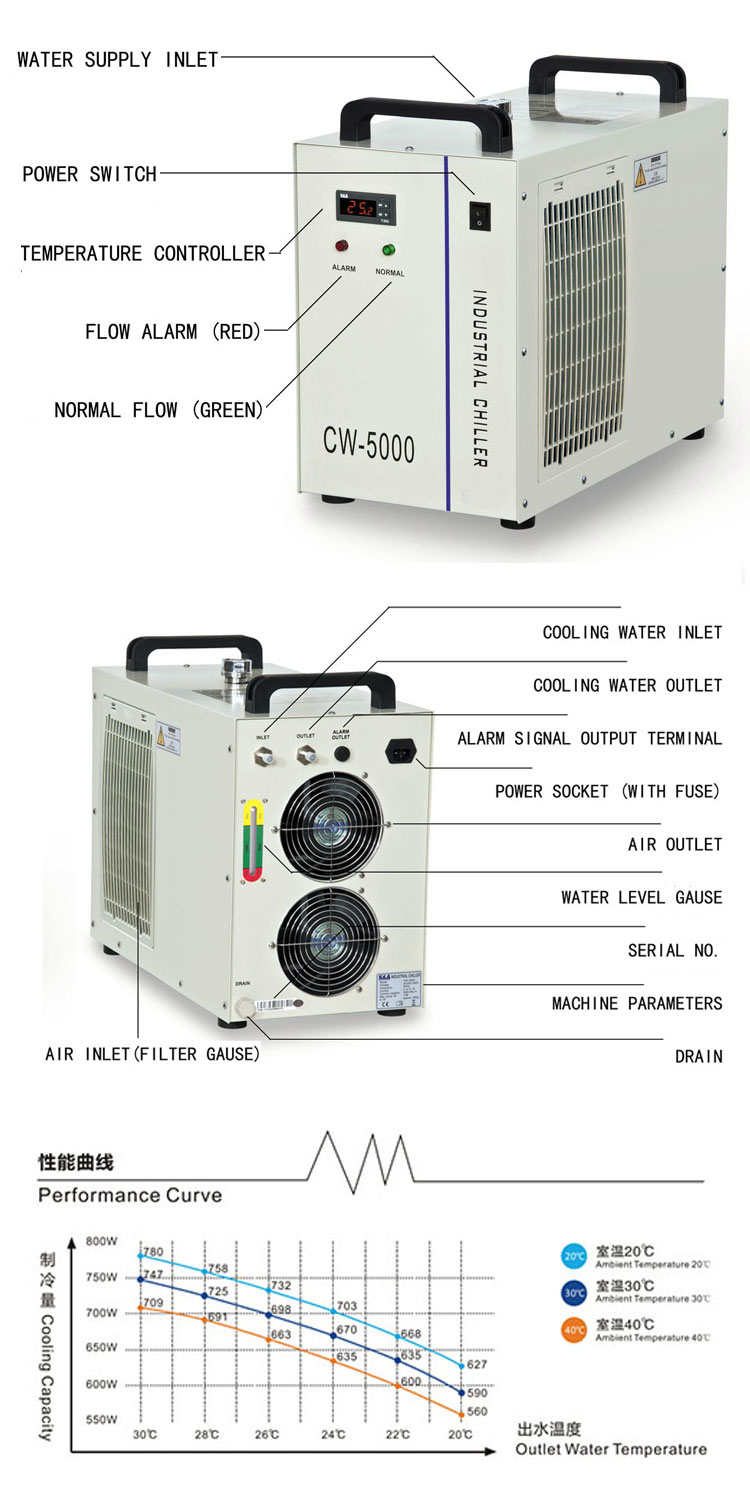

CW-5000 and CW-5200 is refrigeration type industrial water chiller. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air.
The water chillers have two working modes of constant temperature and intelligent thermoregulation, and the accuracy of temperature control can reach up to ±0.3℃. the water chiller has the advantages of compact structure, small volume, easy to move.
CW-5000 applied to cool a single 80W,100W CO2 laser tube.

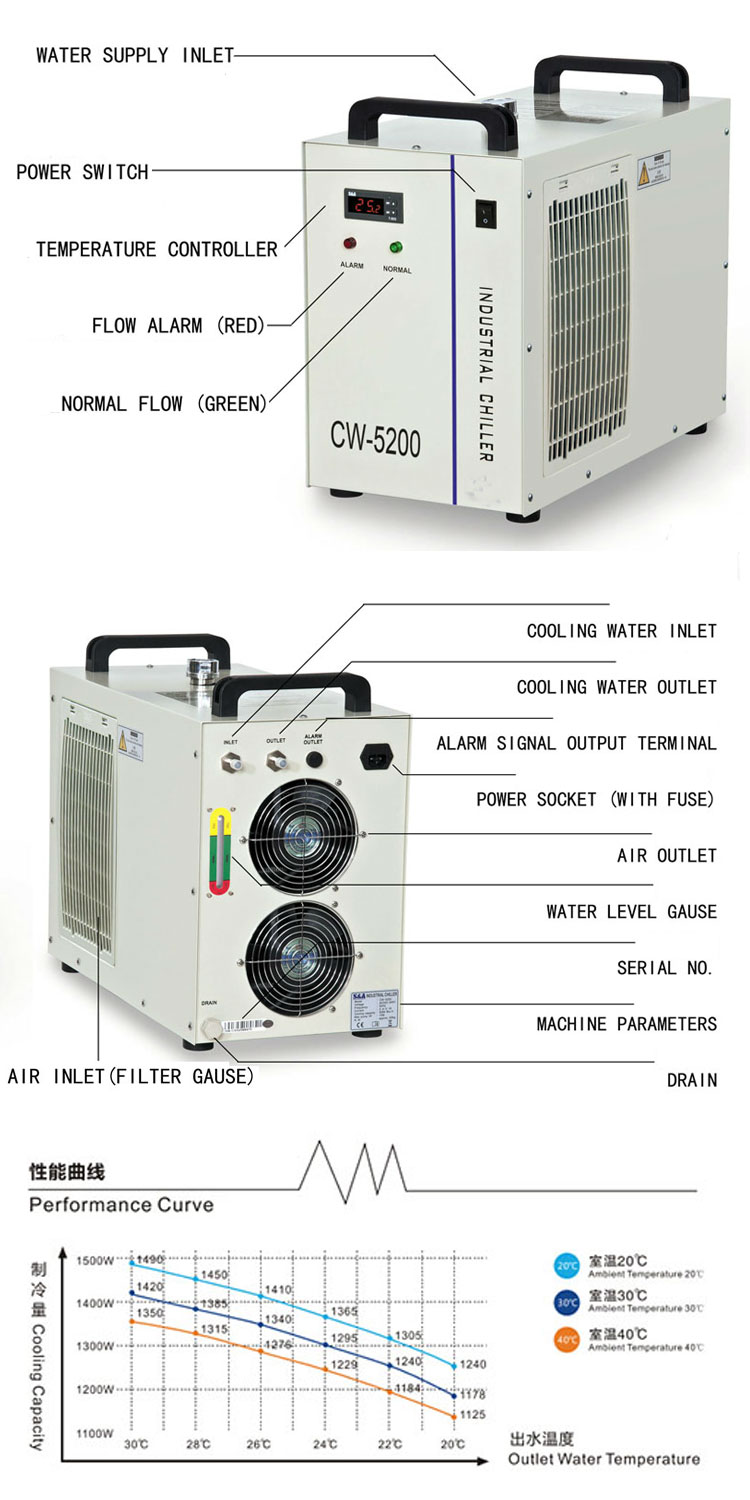

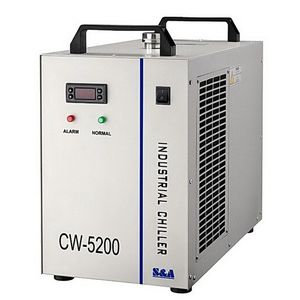

CW-5200 applied to cool a single 150W CO2 laser tube.
Features:
1. 800W cooling capacity; use environmental refrigerant;(CW-5000)
1400W cooling capacity; optional environmental refrigerant;(CW-5200)
2. Compact size, long working life and simple operation;
3. ±0.3℃ precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE,RoHS and REACH approval;
7. Optional heater and water filter.
| Model | CW-3000 | CW-5000 | CW-5200 |
| Voltage | AC220~240V | AC220~240V | AC220~240V |
| Frequency | 50/60Hz | 50Hz | 50Hz |
| Current | 0.45A | 1.4~2.1A | 2.4~3.1A |
| Compressor power | / | 0.295 KW/0.40HP | 0.52 KW/0.71HP |
| Refrigerating capacity | / | 2361Btu/h/0.692KW/595Kcal/h | 5084Btu/h/1.49KW/1281Kcal/h |
| Refrigerant | / | R-134a | R-22/R-134a/R-410a |
| Refrigerant charge | / | 300g | 360g |
| Reducer | / | Capillary | Capillary |
| Precision | / | ±0.3°C | ±0.3°C |
| Protection | flow alarm | Over current protection for compressor, flow alarm, over temperature alarm | |
| Pump power | / | 0.03KW | 0.03KW |
| Tank capacity | 9L | 6L | 6L |
| Inlet and outlet | External Φ10mm brass connector | ||
| Max. lift | 10 M | ||
| Max. flow | 10 L/min | ||
| N.W | 9.5 Kg | 24 Kg | 26 Kg |
| G.W | 12 Kg | 27 Kg | 29 Kg |

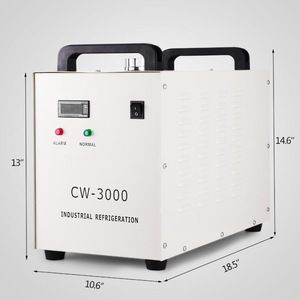

| Dimensions | 49 X 27 X 38 cm (L x W x H) | 58 X 29 X 47 cm (L x W x H) | 58 X 29 X 47 cm (L x W x H) |
| Packing dimensions | 59 X 39 X 48 cm (L x W x H) | 70 X 43 X 58 cm (L x W x H) | 70 X 43 X 58 cm (L x W x H) |
