Technical data details of Air Cooled Screw Chiller :

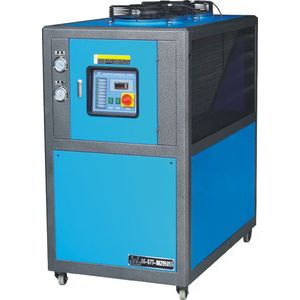

Air Cooled Chiller ZCL-30A/40A/50A
No Parts Name Quantities Brand
1 Controller 1 unit CNCEN
2 Compressor 1 or 2units Copeland or Mitsubishi
3 Condenser V Shape Aluminum Fin 2 pcs CNCEN
4 Evaporator 1 or 2 pcs CNCEN
5 High & low pressure switch 1 or 2 unit Fengsheng
6 Pressure Gauges 1 or 2 pcs changcheng
7 Refrigerant R22 or R407 or 410
8 PUMP 1 Taiwan LF brand
9 Sensor 1 CNCEN
10 Circuit breaker 1 or 2 CHINT or Schneider
11 Compressor contactor 1 or 2 CHINT or Schneider
12 Compressor thermal overload 1 or 2 CHINT or Schneider
13 Pump contactor 1 or 2 CHINT or Schneider
14 Pump thermal overload 1 CHINT or Schneider
15 Filter 1 Danfoss
16 Frame 1 CNCEN
17 Fan 2 or 3 or 4 DUNLI

I.Techinical data
No Item & Description
1 CNCEN Air Cooled Chiller
Model ZCL-30A ZCL-40A ZCL-50A
Cooling Capacity KW/50HZ 78 104 130
KW/60HZ 94.5 126 158
Kcal/Hr /50HZ 68100 90800 113500
Kcal/Hr /60HZ 78000 10400 130000
Input Power KW 25 33.2 42.5
Power Supply 3PH-380V/50HZ
Refrigerant Type R22 or R407
Type of control capillary vessel / expansion valve
Compressor Type hermetic piston (scroll)
Condenser V Shape Type Air Cooled Condenser shell and tube Highly effective red copper pipe socket string aluminum wing piece+low noise axial fan
Cooling Air Flow(m3/h) 30000 40000 50000
Evaporator Type shell and tube
Chilled fluid flow(m3/h) 13.6 17.75 21.9
Volume(L) 500 500 500
Inlet and Outlet Pipe Diameter (inch) 2-1/2" 2-1/2" 3"
Internal Pump Horsepower(kw) 2.2 3 3
Lift(m) 25 28 30
Safety Protection compressor over temperature, over current, high and low pressure, over temperature,flow Switch, phase sequence, phase-missing, exhaust overheating, antifreezing
Dimension: mm 1250*750*1100 1360*800**1400 1450*850*1400
Net Weight : kg 258 378 417
II.Outstanding Features for CNCEN Brand Air Cooled Chiller :
1.Temperature range 5°C to 30°C
2.All Adopt imported compressor : piston & scroll type are optional.
3.Fin & V shape design air cooled condenser with excellent heat transfer and rapid cooling.
4.Adopts SUS made insulated water tank.
5.R22 or R407 or R410 for efficient cooling.
6.Other voltage 115V,208V,220V,230V/460V/480V/575V(Single and Three Phase) 50/60HZ available.
