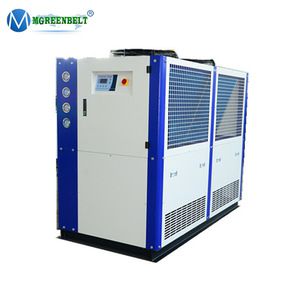

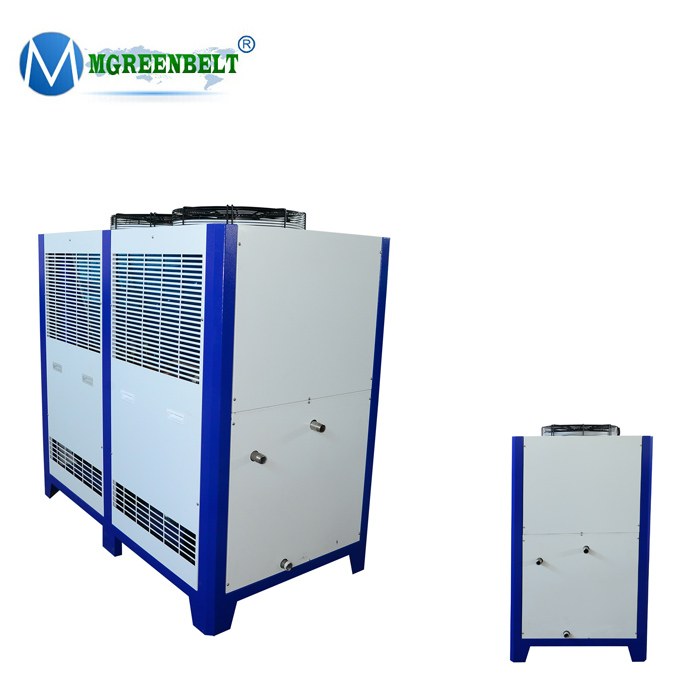

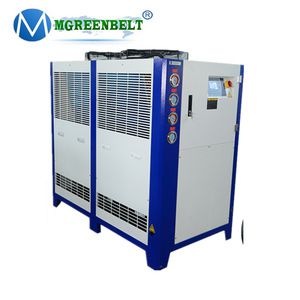

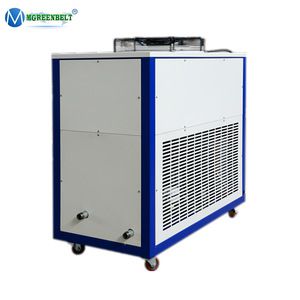

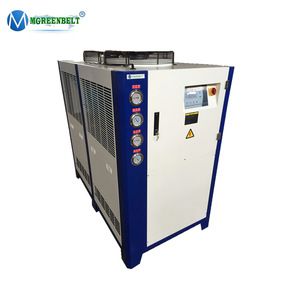

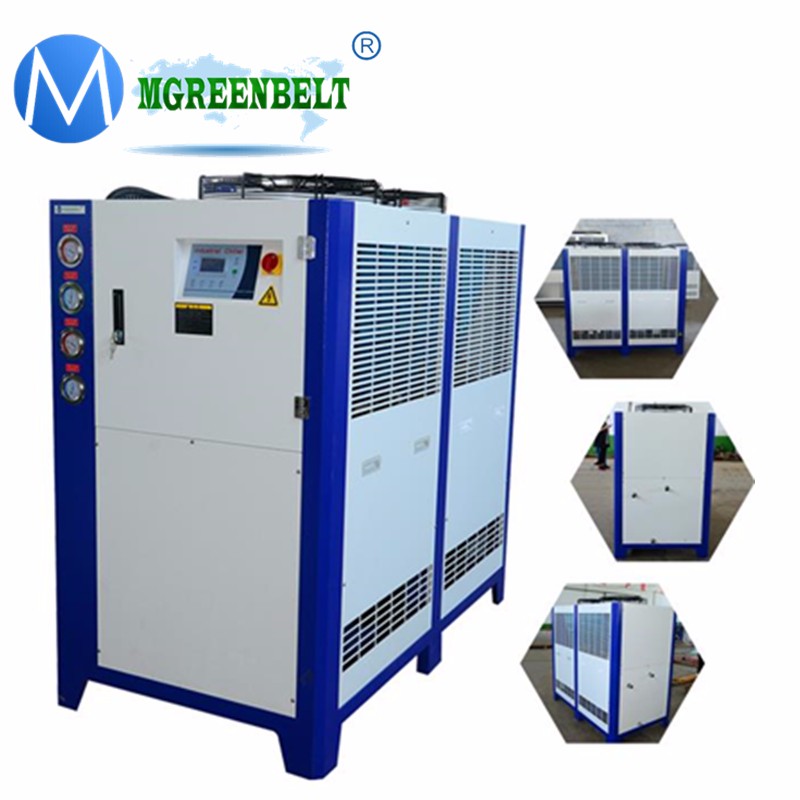

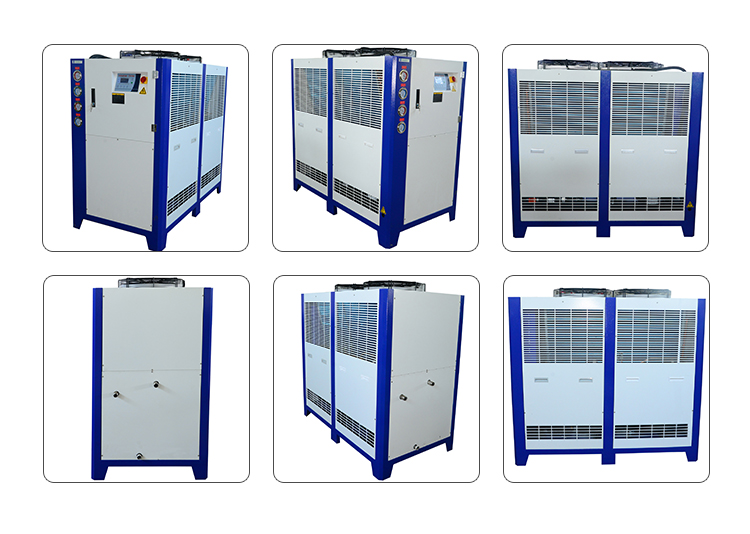

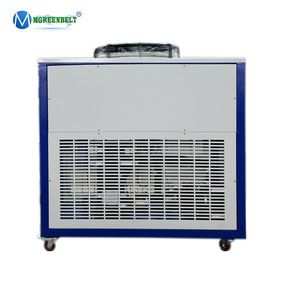

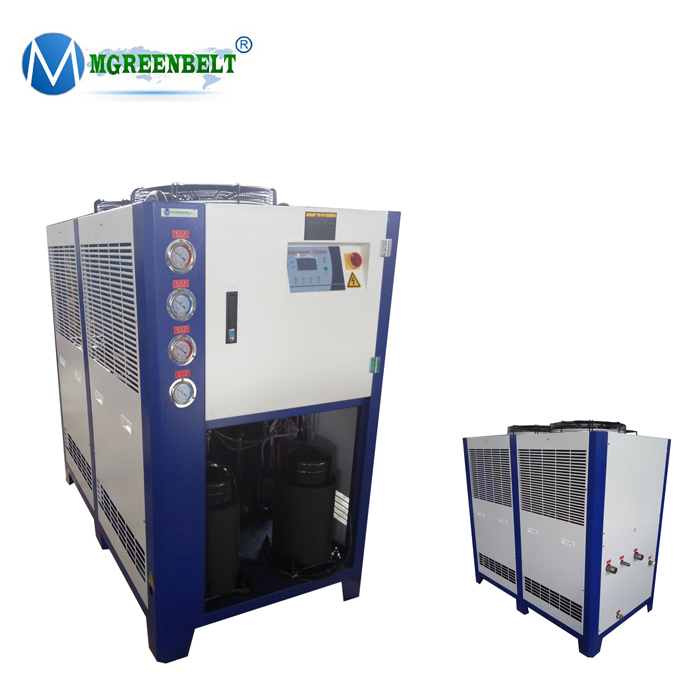

CE Certified China Supplier Package Type Pump Included Air Cooled Industrial Water Chiller
This chiller is mainly used for cooling injection molding machine, plastic mould and extruder,water in vacuum calibrating case and so on.Widly used in the field of plastic producing.
MG water chiller Option items:
1.Water Chiller Power Supply:3PH-200V/220V/380V/415V-50HZ/60HZ
2.Water Chiller Refrigerant R22/R134/407c
3.Water ChillerSet temperature range: for plastic injection we suggest your choose the +7~35 deg C, for brewery industry we suggest you choose -5 deg C outlet, if food or beverage I think 0 deg C is more, or you can tell me your working need, we suggest you the proposal.
4.Cooling capacity: 1HP-240HP (0.7tons-206tons)
5.Compressor type: Hermetic Scroll type
6.Compressor brand: Panasonic, COPELAND, DANFOSS, HANBELL.DAIKIN, HITACHI

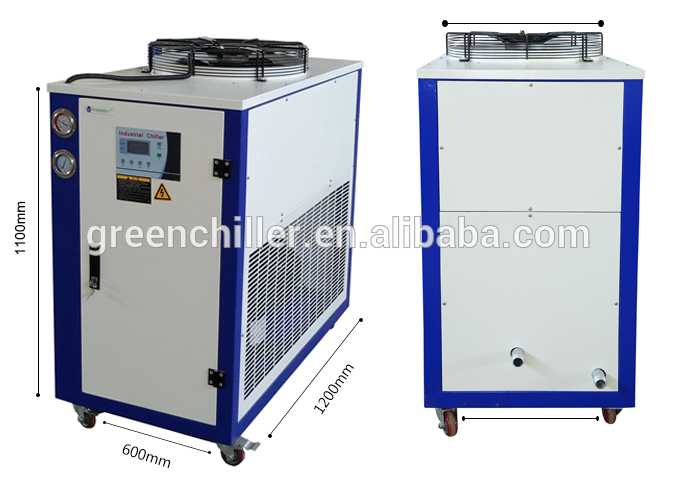

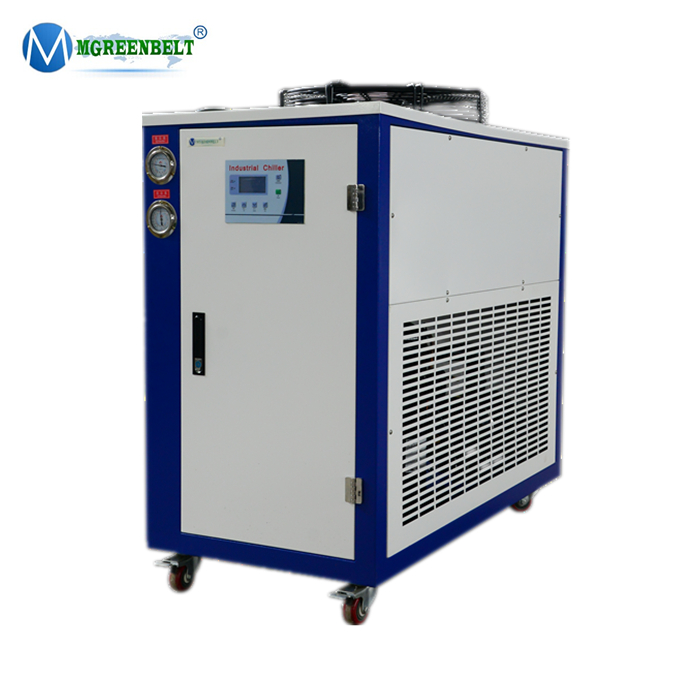

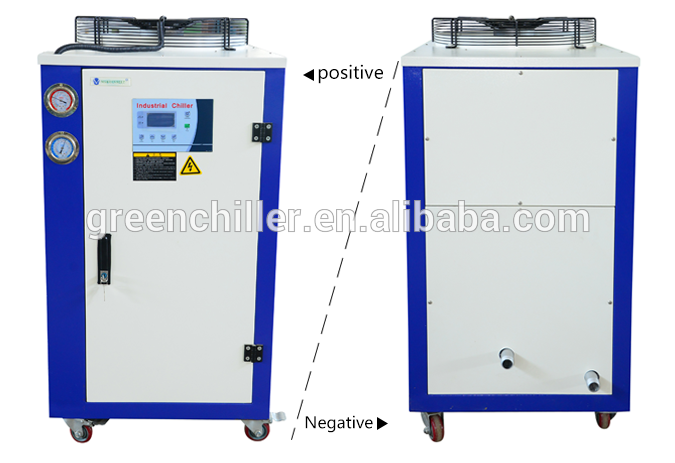

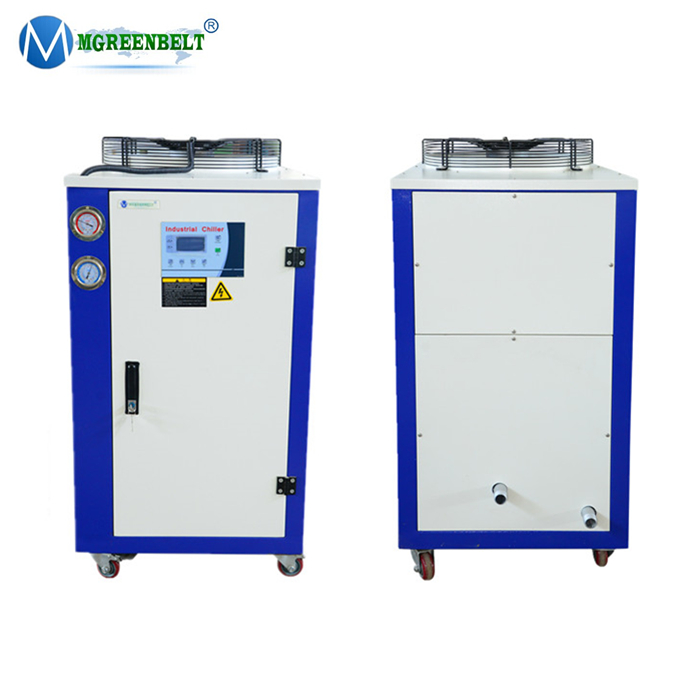

5HP Mini water chiller machinery parameter:
| Scroll Type Air Cooled Water Chiller | |||||
| Model | MG-5C | MG-8C | MG-10C | MG-12C | |
| Cooling capacity | Kcal/h | 11266 | 17458 | 24510 | 26660 |
| kw | 13.1 | 20.3 | 28.5 | 31.0 | |
| Input power | kw | 5.61 | 8.52 | 10.83 | 12.53 |
| Power supply | 3PH-380V-50Hz | ||||
| Refrigerant | Type | R22/R407c | |||
| Control Type | Thermostatic expansion valve | ||||
| Compressor | Type | Hermetic scroll type | |||
| Power(kw) | 4.54 | 3.6*2 | 4.54*2 | 5.4*2 | |
| Evaporator | Type | ||||
| Flow rate(m³/h) | 2.25 | 3.48 | 4.89 | 5.31 | |
| Tank volume(L) | 70 | 120 | 200 | 200 | |
| Dia.of inlet/outlet(mm) | DN20 | DN32 | DN32 | DN32 | |
| Condenser | Type | Finned copper tube with low noise axial fan | |||
| Fan power(kw) | 0.52 | 0.24*2 | 0.46*2 | 0.46*2 | |
| Water pump | Type | Centrigual water pump | |||
| Motor power(kw) | 0.75 | 0.75 | 0.75 | 0.75 | |
| Head(m) | 20 | 20 | 20 | 20 | |
| Protection System | |||||

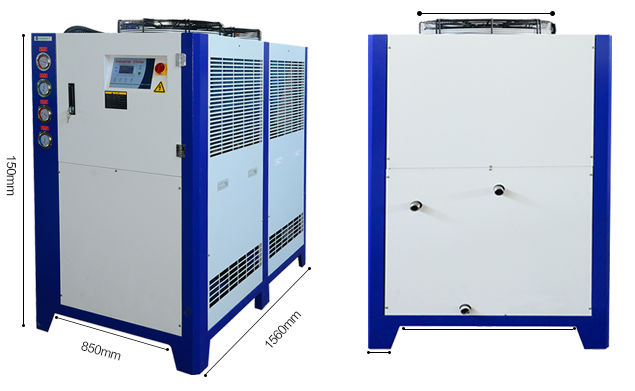

| Machine Size | L(mm) | 1300 | 1400 | 1560 | 1560 |
| W(mm) | 650 | 800 | 850 | 850 | |
| H(mm) | 1100 | 1400 | 1500 | 1500 | |
| N.G | kg | 200 | 310 | 450 | 500 |

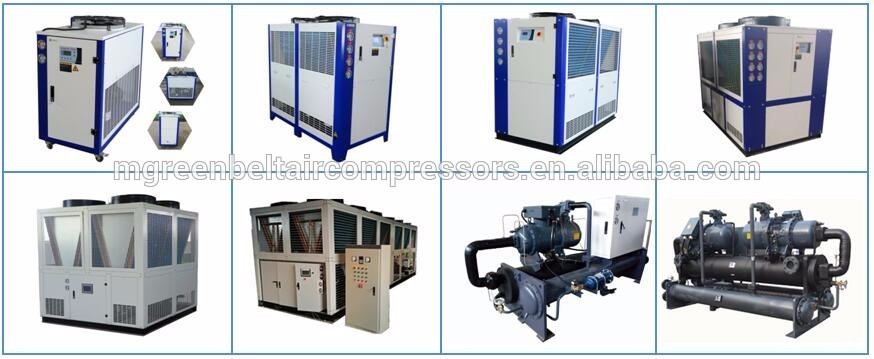

Different model except 5hp water chiller
After-sale service:
1. MGreenbelt provide 12 months warranty for the machine. Warranty starts from receipt of the machine or parts.
2. All extra parts for the machine can be purchased with agent price from MGreenbelt.
3. MGreenbelt 24 hours working phone call: +8615264111996, Email/ Skype/ MSN/ Trade manager online to support.
4. Life-long Technical Support and After-sale Service free of charge.
5.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
6. Free and Professional Training at our Factory under the relaxed condition.
7. Door-to-Door Service if necessary.
FAQ Of Water Chiller:
(1). Payment Terms:
T/T - 30% deposit before production,70% balance before delivery, or other terms
(2). Delivery Detail:
About 15 workdays after payments.
(3).Package Terms:
International Standard Wooden Case for Export
10.Pls kindly offer the following information:
(1).Cooling capacity
(2).Inlet /outlet water temperature
(3).Chiller water flow rate
(4).Retrigreant
(5).Voltage/Frquency
Please contac with us if you have any more concerns:
Sales director: Grace Zhang
Email: grace(at)mgreenbelt.com
Tel: +86-17686681009
Whatsapp/weichat/Viber/Line: +8618615626360
Looking forward the whole distributor form all over the world!
