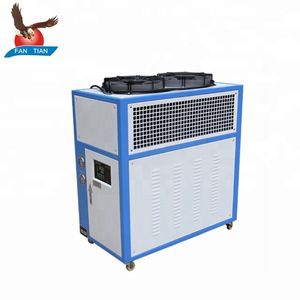

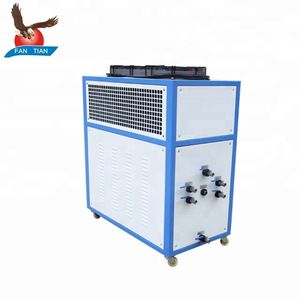

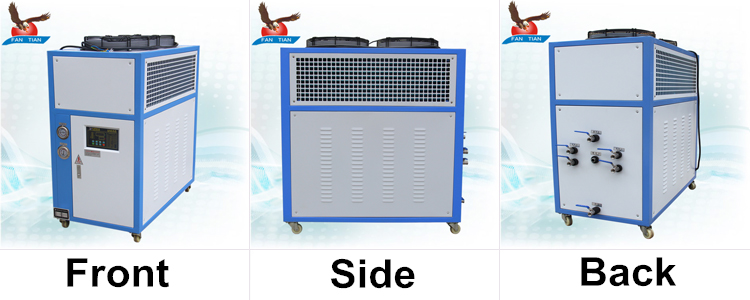

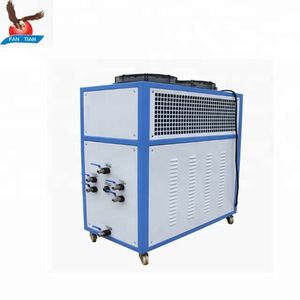

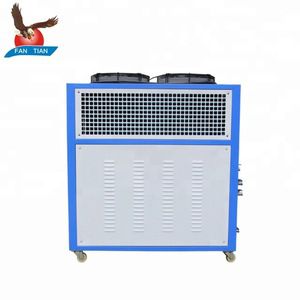

Industrial Air Cooled Water Chiller
Dongguan Hongsai
Features of Industrial Air Cooled Water Chiller
1,Newest imported compressors and high-efficient condenser,evaporator, strong cooling ability, silent and energy-saving, micro-computer comprehensive control, easy operation(optional).
2,Adopting newest stainless-steel open style water tank, convenient to clean and maintain.
3,Current overloaded protection, Low & High pressure protection and electronic time delaying protection device and other abnormal condition indication system.
4,Screen liquid crystal display of chill water outlet and inlet with temperature setting (Options available)
5,Elegant appearance through industrial design.
| Industrial Air Cooled Water Chiller | |||
| Cooling Capacity | kw/h | 50Hz | 8.4 |
| 60Hz | 10 | ||
| Kcal/h | 50Hz | 7234 | |
| 60Hz | 8612 | ||
| Temperature Range | 3℃ to Room Temperature(below 0℃ can be customized) | ||
| Power Supply | 3N-380/415V-50/60Hz | ||
| Total Power | kw | 2.85 | |

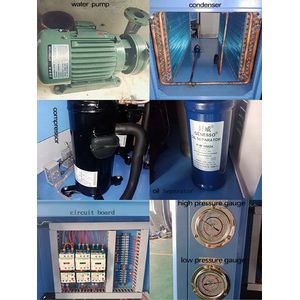

| Compressor | Type | Hermetic Scroll Type Compressor | |
| Power (kw) | 2.2 | ||
| Blower | Air Flow Rate (m³/h) | 300 | |
| Power (kw) | 0.28 | ||
| Condenser | Type | Efficient Brass Sets Corrugated Aluminum Fin | |
| Evaporator | Water Flow Rate (m³/h) | 50Hz | 1.44 |
| 60Hz | 1.68 | ||
| Pipe Diameter | G 3/4" | ||
| Circulating Pump | Power (kw) | 0.37 | |
| Pump Lift (m) | 22 | ||
| Mahine Size | L*W*H (mm) | 1050*560*1070 | |
| Weight | kg | 130 |

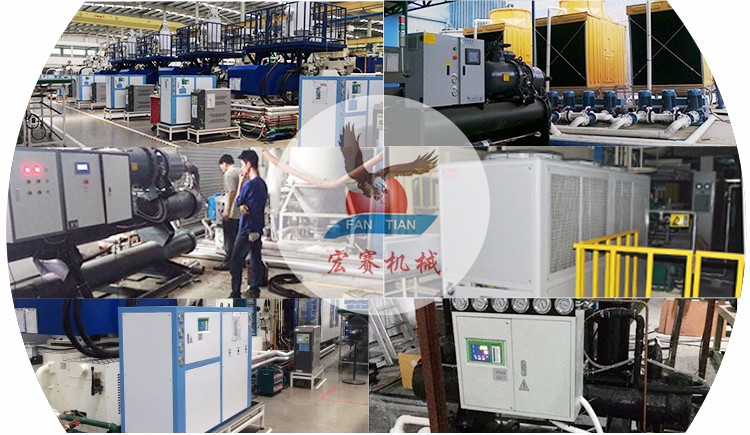

Industrial water chiller can be used in cooling processes like mold in plastics industry, plating solutions in electroplating industry, electronic industry, chemical industry, pharmaceutical industry, food industry, fresh-keeping industry and cooling system in air-conditioners.
Besides, they can also be used in laser, chemical industry, electroplating oxidation, precise machinery, printing ink, printing, medical equipment, injection molding, blister, food, refrigeration, boiler roller interlining, electronic circuit board industry; or wave soldering and reflow soldering, space of purification treatment, hardware, ultrasonic cleaning, heating or cooling bath, medical storage, welding,bottle blowing, casting, surface treatment, paper making, aluminum, grass crafts, jewelry processing, leather, aquaculture etc.
