BM-A Series Manufacturer Industrial Chiller Air Cooled Water Chiller

Product DescriptionDetailed Images1. Cooling capacity is calculated based on: inlet/outlet chilled water temperature is 12℃/7℃, inlet/outlet cooling water temperature is 30℃/35℃.2. Working condition: Chilled water temperature range from 5 ℃

Technical Feature

New

Air cooled and water cooled

Jiangsu, China (Mainland)

BEION

Water chiller

4-40HP

Send Standard Inquiry

Add Inquiry List

$10~2

PRIMARY PARAMETERS

Condition

New

Type

Air cooled and water cooled

Place of Origin

Jiangsu, China (Mainland)

Brand Name

BEION

Model Number

Water chiller

Cooling Capability(kw)

4-40HP

Voltage

Customized,3phase

Dimension(L*W*H)

Accordingly

Weight

Accordingly

Certification

CE, ROHS, UL, ISO SGS

Warranty

12 Months

After-sales Service Provided

Engineers available to service machinery overseas

Refrigerantion capacity

10000~100000kcal/h

Refrigerant type

R22 or else

Temperature range

5-45u2103

Working voltage

Customizable

Chill water flow

65-480L/min

DETAIL DESCRIPTION

Product Description

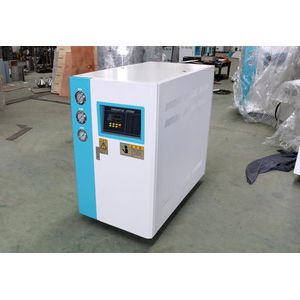

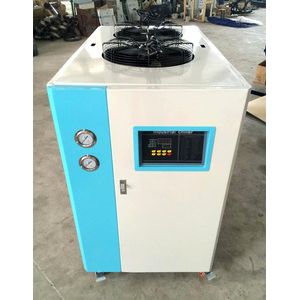

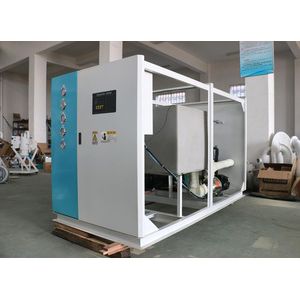

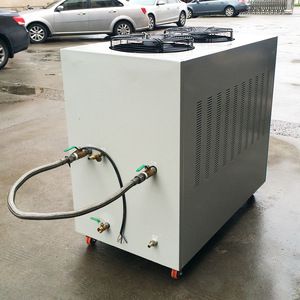

Detailed Images

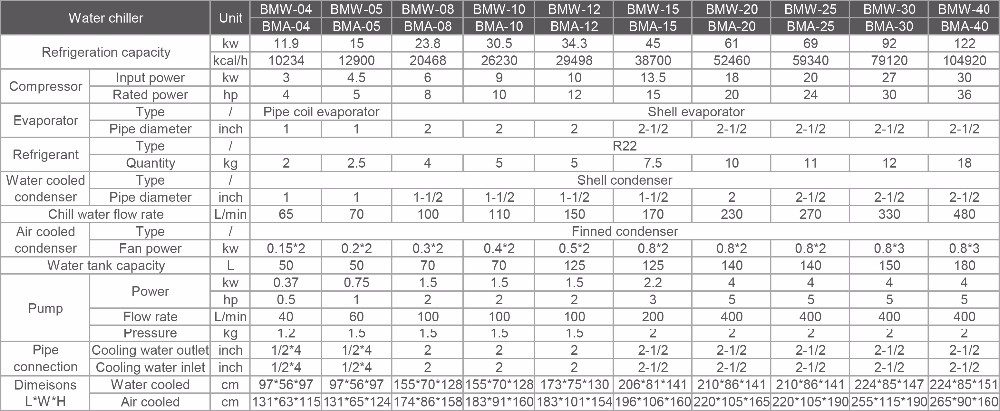

1. Cooling capacity is calculated based on: inlet/outlet chilled water temperature is 12℃/7℃, inlet/outlet cooling water temperature is 30℃/35℃.
2. Working condition: Chilled water temperature range from 5 ℃ to 35℃, inlet/outlet chilled water difference: 3℃ ~ 11℃.
Cooling water temperature range from 18℃ to 37℃, inlet/outlet cooling water temperature difference: 3.5℃ ~ 10℃.
