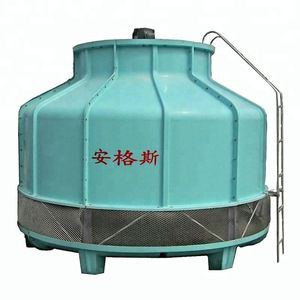

The enclosure chassis of cooling tower is made of quality high strength glass fiber,good corrosion protection.
Techinical Parameter of Cooling Tower
| Model | ST | 20 | 25 | 30 | ||
| Data | Nominal Flow | 15.62 | 19.51 | 23.4 | ||
| Air Volume | CMM | 160 | 200 | 230 | ||
| Motor | KW | 0.56 | 0.75 | 0.75 | ||
| Noise Level(16M) | DBA | 50 | 52 | 54 | ||
| Dry Weight | KG | 67 | 98 | 116 | ||
| Wet Weight | KG | 300 | 500 | 530 | ||
| Piping | Water Inlet | WI | 50 | 80 | 80 | |
| Water Outlet | WI | 50 | 80 | 80 | ||
| Overflow | OF | 25 | 25 | 25 | ||
| Drain | DR | 25 | 25 | 25 | ||
| Height | Tower | TH | 1930 | 2150 | 1895 | |
| Motor | MH | 170 | 180 | 180 | ||
| Casing | CH | 1140 | 1385 | 1130 | ||
| Air Inlet | AH | 170 | 245 | 245 | ||
| Water Basin | WH | 450 | 340 | 340 | ||
| Water Inlet | IH | 280 | 175 | 175 | ||
| Water Outlet | OH | 190 | 115 | 115 | ||
| DIA. | Exhaust Fan | ED | 770 | 770 | 770 | |
| Water Basin | WD | 1165 | 1385 | 1650 | ||
| Anchor Bolt | BD | 9*3 | 9*3 | 9*3 | ||
| Remarks:1.parameter of design:in temp-T1=37°C,wet temp-WBT=27°C difference in temperature of water Ts=5°C air pressure-P=99400Pa. | ||||||
| 3.Information subjected to change without prior notice. |
