| | Colling | Axial fan | Spray pump | Inlet/outlet pipe | Weight | Dimension | |||
| capacity | air volume | power | flow | power | host | operation | L*W*H | ||
| Kcal/h | m³/h | km | m³/h | kw | DN | kg | kg | mm | |
| LSW-15 | 100600 | 19200 | 0.75*2 | 12 | 0.55 | 65 | 720 | 1900 | 1800*1500*2500 |
| LSW-20 | 134100 | 25500 | 0.75*2 | 15 | 0.75 | 80 | 830 | 2560 | 2000*1800*2500 |
| LSW-30 | 201060 | 38400 | 1.5*2 | 25 | 1.1 | 80 | 950 | 2200 | 2000*1800*2650 |
| LSW-40 | 268050 | 51100 | 1.5*2 | 40 | 1.1 | 100 | 1230 | 2920 | 2500*1800*2730 |
| LSW-50 | 335030 | 64000 | 1.5*2 | 45 | 1.5 | 100 | 1400 | 3240 | 2500*2000*2990 |
| LSW-65 | 435700 | 83200 | 2.2*2 | 50 | 1.5 | 100 | 1660 | 4080 | 2650*2300*3000 |
| LSW-80 | 536400 | 102000 | 3.*2 | 80 | 3 | 125 | 2330 | 5430 | 3300*2300*3100 |
| LSW-100 | 670500 | 128000 | 2.2*3 | 103 | 4 | 125 | 2850 | 7230 | 4100*2750*3200 |
| LSW-125 | 837800 | 160000 | 4*2 | 103 | 4 | 150 | 3320 | 7850 | 4500*2700*3210 |

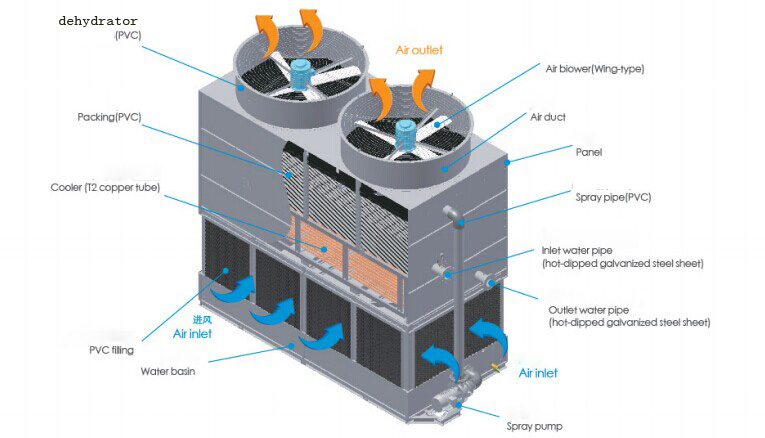

Advamtages of cooling tower 2017 new design high efficiency closed circuit closed cooling tower in China industrial water closed cooling
1.Stable in performance, and endurable in use.
2. High flow rate, low lift,low power consumption, no noise.
3. High quality aluminum alloy motor shell with high anti-rust ability.
4. SUPERDYMA impored with original packaging Strong anti-rust ability,could be stainless for 25 years.
5.Designed unit, with automatical digital display, easy to operate and maintain.
2. Business philosophy is "brand management", the company has established a domestic and foreign sales network and service system.
3. Leading products include IGBT medium frequency heating equipment, IGBT super audio heating equipment, CNC quenching machine tool ,etc.
4. Exported to Pakistan, Russia, Thailand, Algeria, Vietnam and other countries.
5. CE certificate.
1.Reply your inquiry within 24 working hours.
2. Customize is acceptable.
3. Package,language and logo can be designed as your requirements.
4. Long-term technical service.
5. Competitive price, compare with the same industry.
1.Why choose us?
We have low price and high quality.
2. How is your products quality?
As a manufacturer, we have our own R&D team. And our machine has been well recognized around our clients in China, as well as by those from abroad.
3.what is your MOQ?
We would like to do business with every clients. No matter how many sets they order, we would try our best to meet his or her demands.
