CAM-V series ultrafine grinder

CAM-V series inner sorting grinder is a kind of ultrafine powder producing equipment with ultrafine sorting foundation, is the same type machine with ACM, the machine is mainly for grinding the material under Moh's hardness 3.5 level, can get powder 5-150

Technical Feature

  • The inner sorter is replacing the screen plate for adjusting fineness
  • The fineness can be adjusted by changing the sorting speed without stopping
  • Low temperature
  • Bearing, transmission are imported, with long using life
  • Can be designed according to the
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5000~50000

PRIMARY PARAMETERS

Brand name
Paerman
Application
Grinding
Process input material
-
Process output material
-
Place of origin
China
Equipment material
-
Power (kW)
Depends
Weight (kg)
Depends
Outer dimension (mm)
Depends
Warranty
One year
Delivery
30 days
Main spare parts
-

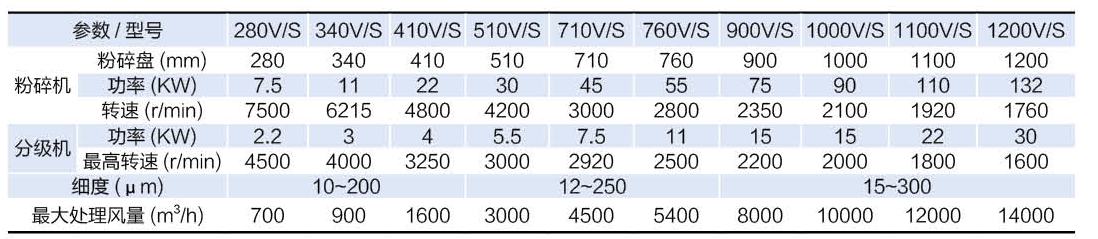

MODEL SPECIFICATIONS

Model 280V/S 340V/S 410V/S 510V/S 710V/S 760V/S 900V/S 1000V/S 1100V/S 1200V/S
Grinder plate(mm) 280 340 410 510 710 760 900 1000 1100 1200
Grinder power(kw) 7.5 11 22 30 45 55 75 90 110 132
Grinder speed(r/min) 7500 6215 4800 4200 3000 2800 2350 2100 1920 1760
Sorter power(kw) 2.2 3 4 5.5 7.5 11 15 15 22 30
Sorter speed(r/m) 4500 4000 3250 3000 2920 2500 2200 2000 1800 1600
Fineness(um) 10-200 10-200 10-200 12-250 12-250 12-250 15-300 15-300 15-300 15-300
Max. process wind flow(m3/h) 700 900 1600 3000 4500 5400 8000 10000 12000 14000

DETAIL DESCRIPTION


CAM-V series ultrafine grinder


CAM-V series inner sorting grinder is a kind of ultrafine powder producing equipment with ultrafine sorting foundation, is the same type machine with ACM, the machine is mainly for grinding the material under Moh's hardness 3.5 level, can get powder 5-150um, the large capacity of cold air can be used for grinding the heat sensitive materials.


Character

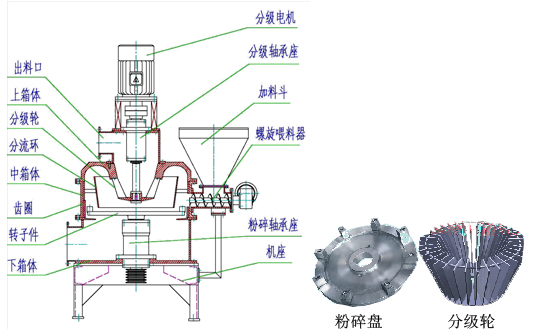

  1. The inner sorter is replacing the screen plate for adjusting fineness.

  2. The fineness can be adjusted by changing the sorting speed without stopping.

  3. The strong air flow when grinding has strong cooling effect, make the temperature of grinding lower, especially suitable for resensitive and fiber type material, the fineness is balance.

  4. Bearing, transmission are imported, with long using life.

  5. Can be designed according to the material, to make the generally machine to special machine, to improve the grinding efficiency.

  6. Suitable for Moh's hardness under 3.5 level, special material need change the material and structure of the machine.
