Cooling temperature range: 85~30C
Product Description

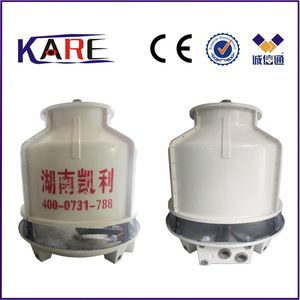

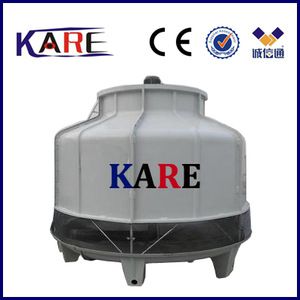

FRP cooling tower: anti-corrosion, light-weight, small size, attractive and durable. Convenience to transport, install and maintain. Especially applicable to air conditioning, refrigeration, air compressor station, heating furnace, and condensation process and other cooling water circulation system.
Technical Parameters
| Model No. of KARE | KL-8 | KL-10 | KL-15 | KL-20 | KL-25 | KL-30 | KL-40 | KL-50 | |||
| Water flow | m3/h | 6 | 8 | 12 | 15.6 | 19.6 | 23.4 | 31.2 | 39.2 | ||
| Dimension | Tower height | mm | 2050 | 2200 | 2085 | 2260 | 2460 | 2530 | 2680 | 2535 | |
| Max outer dia. | mm | 945 | 945 | 1195 | 1195 | 1400 | 1650 | 1650 | 1830 | ||
| Fan | Diameter | mm | 584 | 584 | 584 | 800 | 800 | 900 | 900 | 900 | |
| Air volume | m3/h | 3500 | 4700 | 5900 | 7000 | 9400 | 12000 | 15000 | 18000 | ||
| Motor power | kw | 0.18 | 0.18 | 0.25 | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | ||
| Rated current | Standard | I(A) | 0.75 | 0.75 | 0.9 | 1.25 | 1.75 | 2.3 | 2.3 | 3.2 | |
| Low noise | I(A) | 0.9 | 0.9 | 0.98 | 1.55 | 2.1 | 2.7 | 2.7 | 3.6 | ||
| Weight | Standard | Dry | kg | 53 | 56 | 84 | 110 | 140 | 160 | 165 | 191 |
| Wet | kg | 133 | 139 | 219 | 265 | 300 | 364 | 369 | 433 | ||
| Low noise | Dry | kg | 60 | 72 | 94 | 123 | 156 | 174 | 179 | 206 | |
| Wet | kg | 145 | 151 | 239 | 288 | 324 | 388 | 393 | 468 |

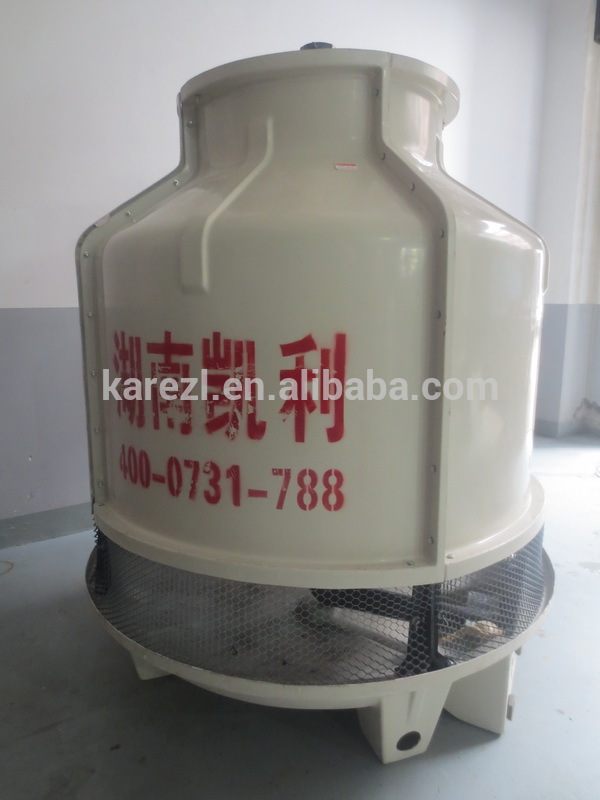

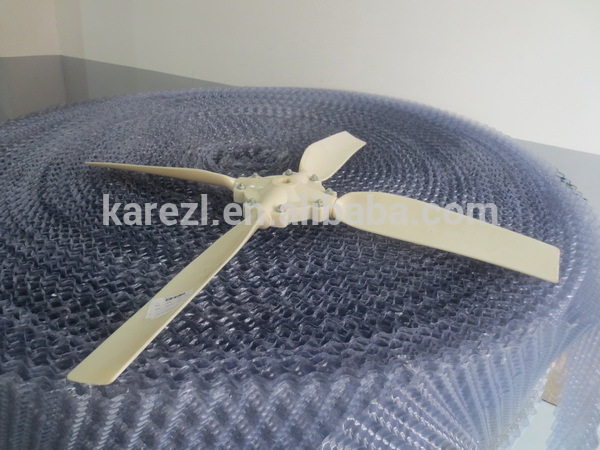

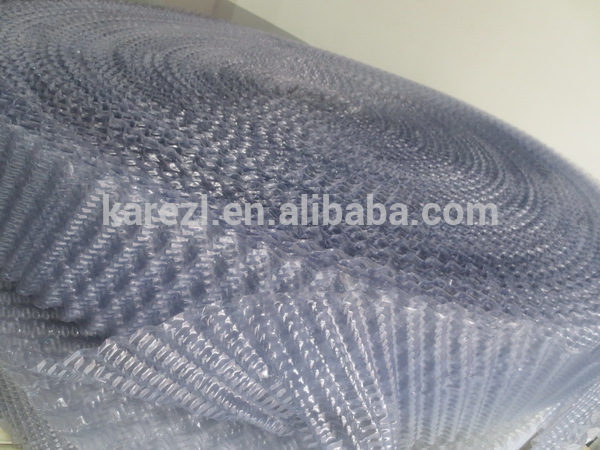

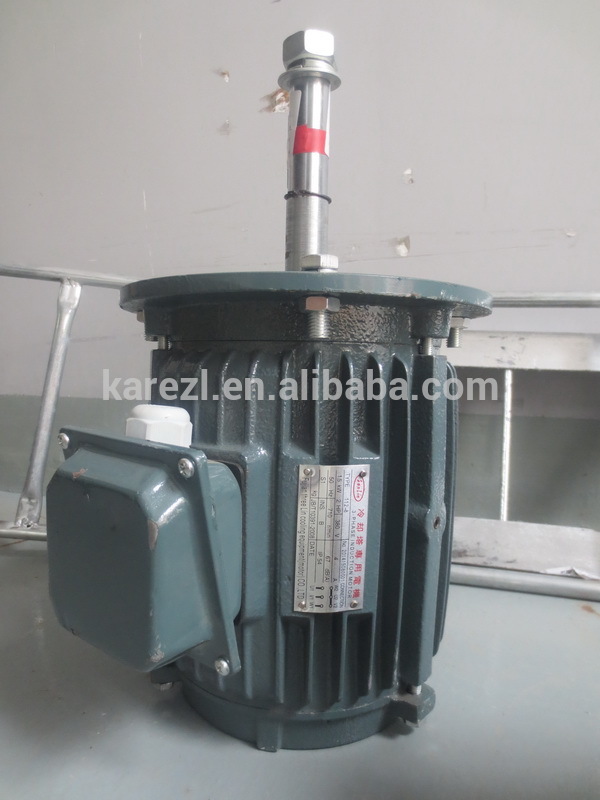

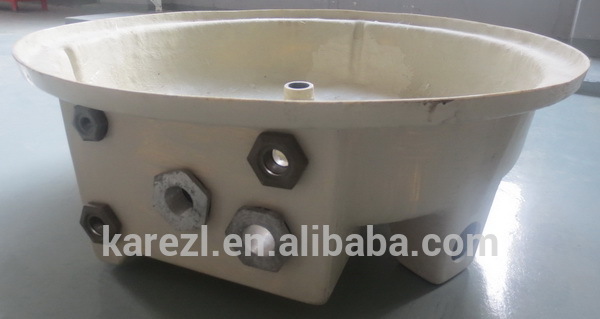

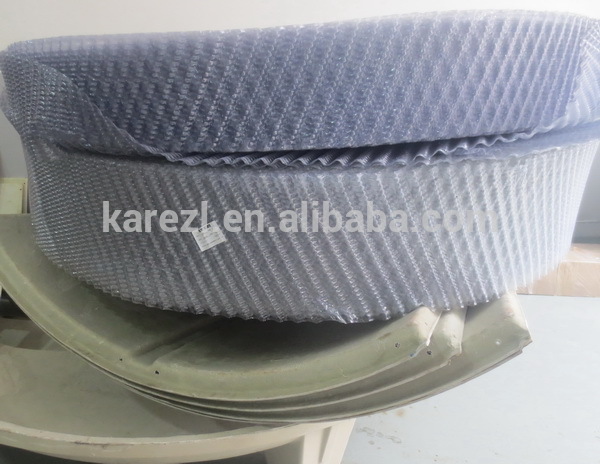

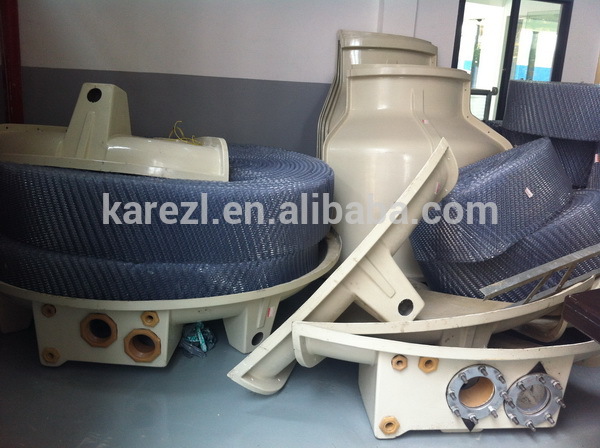

Details Display
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price

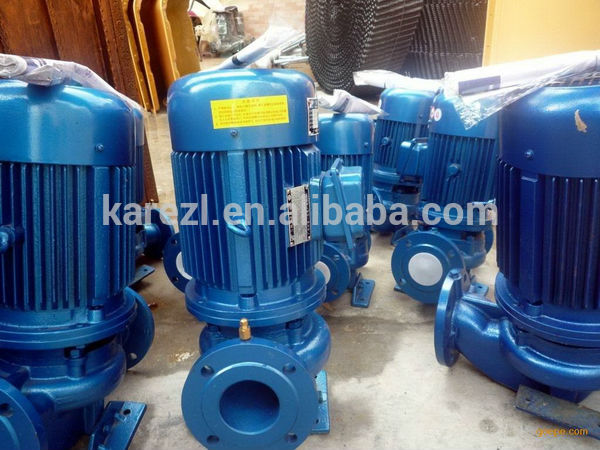

Water Pump
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price

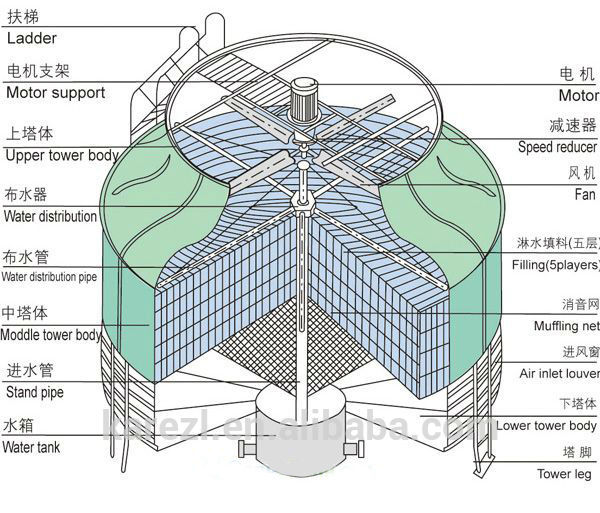

Structure block diagrams
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
Packaging Detail
Outside:Standard export wooden cases
Inner:Stretch film
Delivery Detail
Terms: About 15 workdays after payments
Delivery type: by sea
Payment terms
L/C, T/T, 30% deposit, balance before delivery
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
Customized service
· Special voltages: 220V~240V,380V~415V, 50Hz or 60Hz, 1 or 3Phase are available
· OEM/ODM, Available as per your drawing or special requirements
Guarantee & Aftersales service
· Provide install video if necessary.
· Provide foundation drawing.
· English user manual
· Quality guarantee is 12 months
· 24 hours hotline and email technical support
· Oversea technical guidance
- Established:1996
- Employees: 11 - 50 People
- No. of R&D Staff : 5 - 10 People
- No. of QC Staff: 5 - 10 People

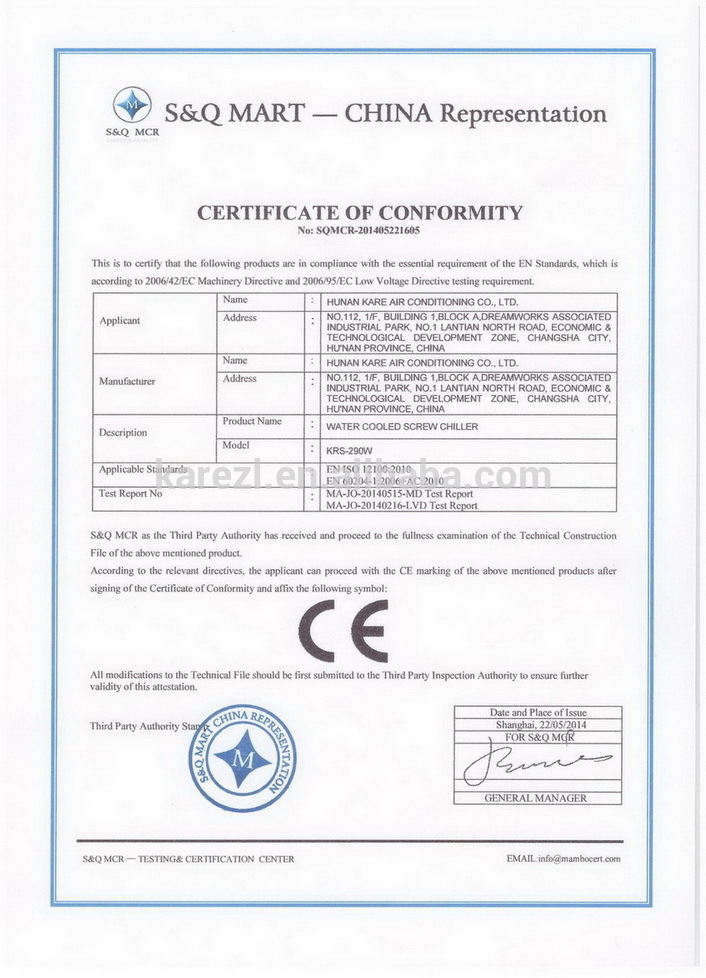

- Management Certification: CE, ISO 9001:2008
- Main Markets: North America South America Eastern Asia Western Europe
- Factory Size (Sq.meters): 1,000-3,000 square meters
CE/ISO FRP round water tower, 50Ton cooling tower, Open type tower price
More Cooling Chiller Series wide cooling temp. range for reference:
Industrial Air Cooled Chiller (5~35C)
Industrial Water Cooled Chiller (5~35C)
Screw Water Chiller (5~35C)
Low Temperature Screw type Chiller (-5~-10C)
Low Temperaute Glyclo Screw Chiller (0~-45C)
Cascade Low temperature Screw Chiller (-40~-135C)
Industrial Cooling Tower (80~35C)
