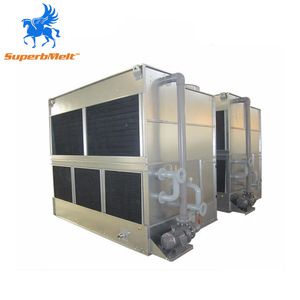

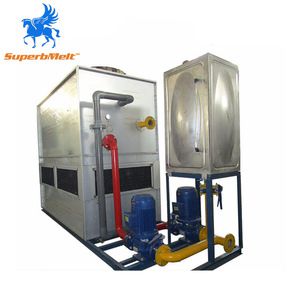

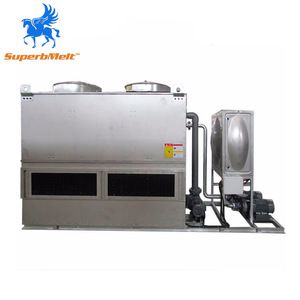

Water Cooling Tower Mainly used in casting /forging/smithing /heat treatment and machinery cooling

1. Fully enclosed circulating cooling, eliminate the pipeline jams caused by debris.
2. Use soft water circulating cooling; no overheat damage of power supply, silicon control, capacitor, IGBTmodule, induction coil caused by incrustation.
3. No need of water pool and cooling tower, occupies small area, and moves easily.
4. High cooling efficiency and low operate cost.
5. Low water consumption, meet requirement of environment protection

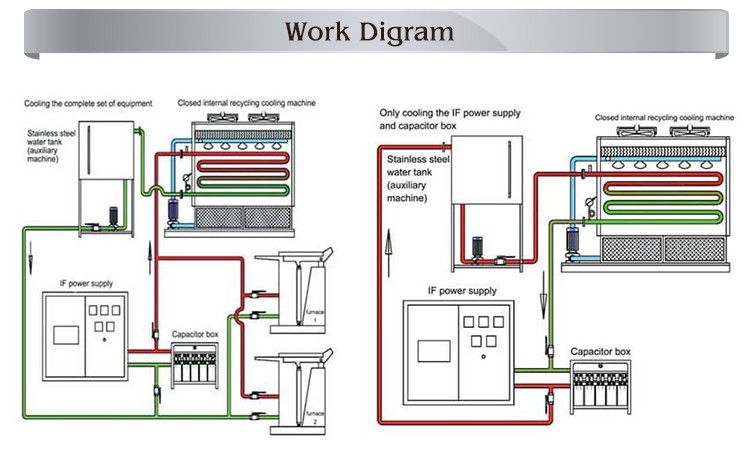

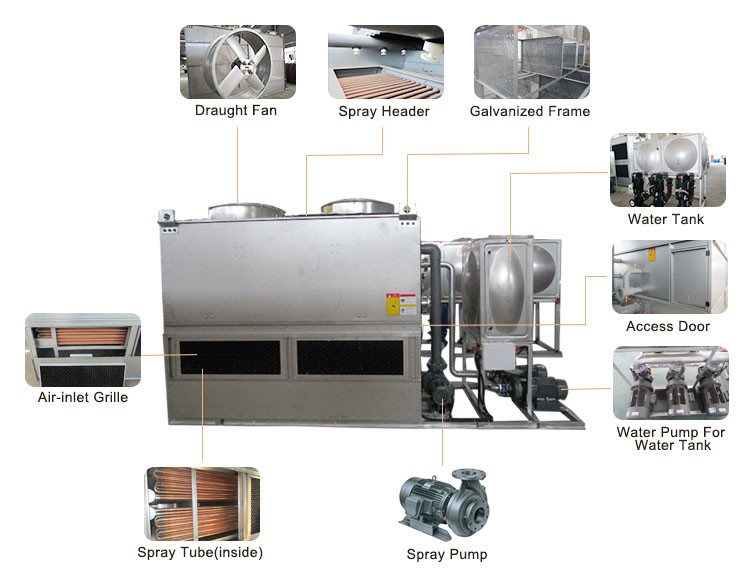

Pure water in closed type cooling machine for copper coil within cycle, the working fluid heat flow through the coil by coil scattered into the water, at the same time units around the outside the normal temperature air from the air inlet grille into the chassis, and the water flow in the opposite direction, upward flow through the coil,a small portion of water evaporation and heat, saturated hot humid air from the top of the cooling tower fan discharge to the atmosphere, the remaining water into the bottom water disk, the water pump is recycled to the water distribution system and spraying to coil, in order to reduce the temperature of the fluid inside the pipe all kinds of. Hot air of water box not evaporation of the water is water retaining plate interception and through the PVC heat exchange layer, PVC heat exchange layer in which the water is flowing in the air cooling, temperature is decreased. Fall into the water by the water pump bottom plate, is recycled to the water distribution system, back to pour into the coil, so for circulating cooling. This equipment widely used in induction furnace cooling, cold rolling mill, continuous casting cooling, etc.
