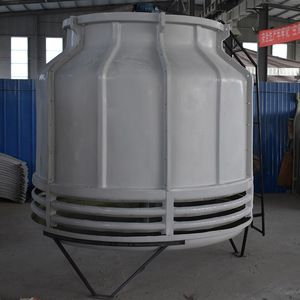

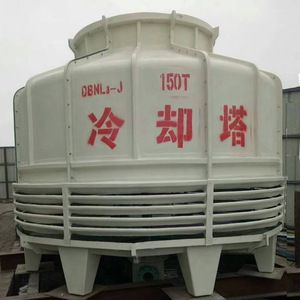

Closed Loop Water Cooling Towers
Data | Model | ST | 20 | 25 | 30 |
Air Volume | CMM | 160 | 200 | 230 | |
Motor | KW | 0.56 | 0.75 | 0.75 | |
Noise Level(16M) | DBA | 50 | 52 | 54 | |
Dry Weight | KG | 67 | 98 | 116 | |
Wet Weight | KG | 300 | 500 | 530 | |
Piping | Water Inlet | WI | 50 | 80 | 80 |
Water Outlet | WI | 50 | 80 | 80 | |
Overflow | OF | 25 | 25 | 25 | |
Drain | DR | 25 | 25 | 25 | |
Height | Tower | TH | 1930 | 2150 | 1895 |
Motor | MH | 170 | 180 | 180 | |
Casing | CH | 1140 | 1385 | 1130 | |
Air Inlet | AH | 170 | 245 | 245 | |
Water Basin | WH | 450 | 340 | 340 | |
Water Inlet | IH | 280 | 175 | 175 | |
Water Outlet | OH | 190 | 115 | 115 | |
DIA | Exhaust Fan | ED | 770 | 770 | 770 |
Water Basin | WD | 1165 | 1385 | 1650 | |
Anchor Bolt | BD | 9*3 | 9*3 | 9*3 | |
Remarks:1.parameter of design:in temp-T1=37°C,wet temp-WBT=27°C difference in temperature of water Ts=5°C air pressure-P=99400Pa. | |||||
Support customized |

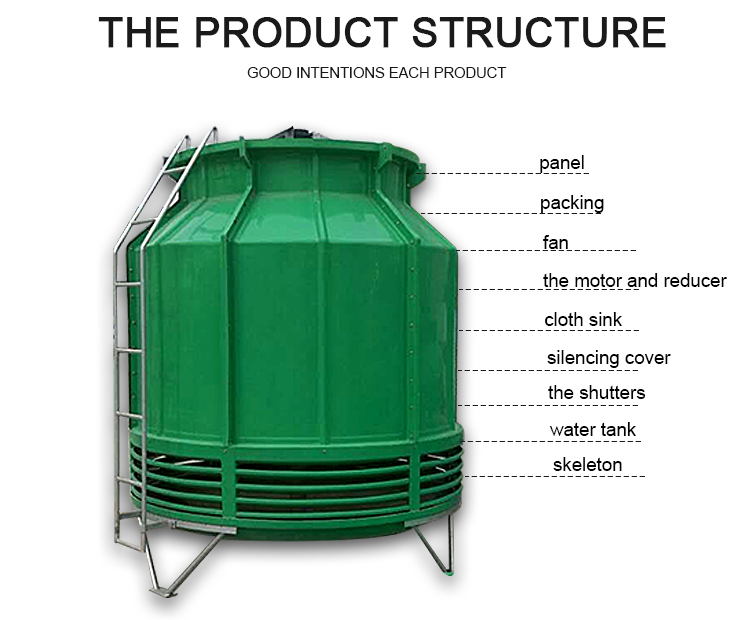

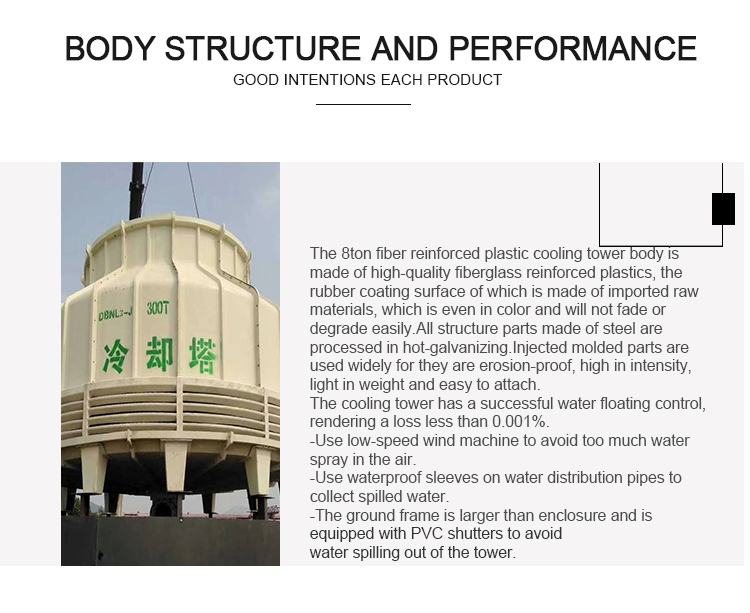

| (1) panel: glass fiber reinforced plastic material, the surface is bright and clean and beautiful, corrosion resistance, prevent ageing. (2) packing: for modification of polyvinyl chloride (PVC) two-way point wave, thermal performance is good, the air resistance small, rigid, heat resistant 75 °C, cold, flame retardant. (3) fan: blade material of alloy aluminum plate. Fan aerodynamic reasonable, big air volume, high efficiency, low noise, corrosion resistance, etc. (4) the motor and reducer: for external equipment. (5) cloth sink: glass fiber reinforced plastic material, water distribution even, low noise type have cover plate can be my light, and sundry into, reduce splashing. (6) silencing cover: glass fiber reinforced plastic material, stuck in the cavity type and flame retardant PVC film sound materials. (7) the shutters: glass fiber reinforced plastic material, can waterproof spatter, and can make into the tower airflow even. (8) water tank: glass fiber reinforced plastic material, set up water effect, with automatic added water facilities, can be directly absorbent closed-circuit circulation. (9) skeleton: for ruffled steel assembly structure, rigid, light weight, transport, installation is convenient and galvanized anti-corrosion. |
With the development of the global economy integration and the deep transfer of FRP (fiberglass-reinforced plywood) industry to Chinese market, China is changing from the big FRP country to the power one, meanwhile, people’s multiplex demands of products with good quality and competitive prices are accelerating the development of Chinese FRP industry. Hebei Zhongbang FRP Co. , Ltd. is one of the largest manufacturers of production, which plays a significant role in Zaoqiang FRP industry. In 2016, the total assets of the corporation reach up to RMB 36 million. The corporation has more than 500 agents and accounts for more than 200 jobs, including management, research and development, quality control, sales and after-sales service. In total, the annual sales is 250 million, and export share is up to 80 million. The corporation has well manufacturing, production, marketing, management and R&D technology systems. With excellent product quality and perfect service system, the corporation achieves LSO9001 international quality system authentication, LSO18000 occupational health and safety management system authentication, which is well received by customers from home and abroad and leaders at all levels. Over years, the corporation has won many prizes, such as Enterprise of Advanced Technology, Hebei High-integrity Enterprise and Hebei FRP Demonstration Base.
Q:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in plastic machines and auxiliary equipment for over 20 years.With headquarter in Thailand,we have factories in Guangdong province and distributors in Zhejiang province.
Q:What's warranty and after-sale service of machine?
A:Twelve months Warranty for main machinery part like motor and electric;
Llife-long maintenance service(Email and calling service in working hours;24 hours door to door in domestic)
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q:Don't know which type you need?
A:Please send us your requirement or contact us directly!
Q:Don't know how the machine working?
A:Contact us to see the video and get further information!
