Product Features
AOSUA FRP round cooling tower: anti-corrosion, light-weight, small size, attractive and durable.Convenience to transport, install and maintain. Especially applicable to air conditioning, refrigeration, air compressor station, heating furnace, and condensation process and other cooling water circulation system.

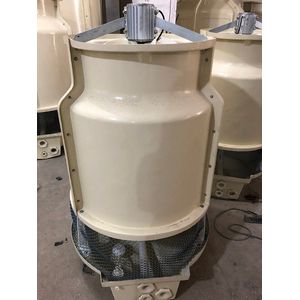

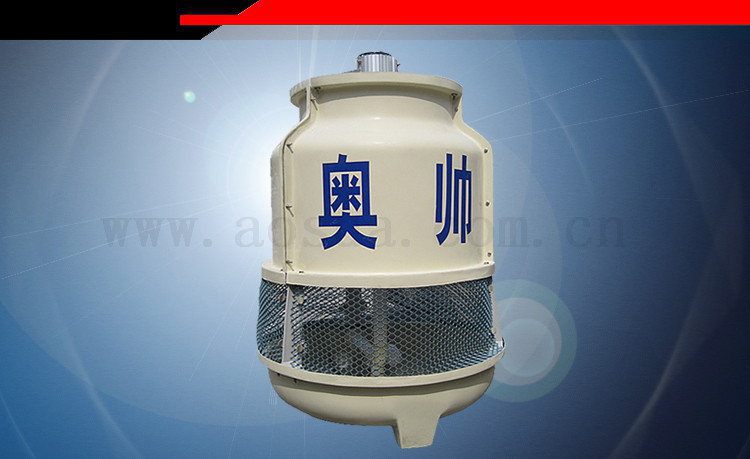

Round FRP Industrial Water Cooling Tower
- Established:2009
- Employees: 11 - 50 People
- No. of R&D Staff : 11 - 20 People
- No. of QC Staff: 5 - 10 People
- Management Certification: ISO 9001:2008
- Main Markets: North America South America Eastern Asia Western Europe
- Factory Size (Sq.meters): 3,000-5,000 square meters
1.Provide install video if necessary.
2.Quality guarantee is 12 months.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
4.Oversea technical guidance.
5.Provide foundation drawing.
1)Q:Are you a factory or a trading company?
A:Cooling tower manufacturer with 50 works.
2)Q:What's your MOQ of this term?
A:1 SET.
3)Q:Where is your Loading port?
A:Ningbo and Shanghai port,China
4)Q:What's your company's available production capacity?
A:200 SETS per month.

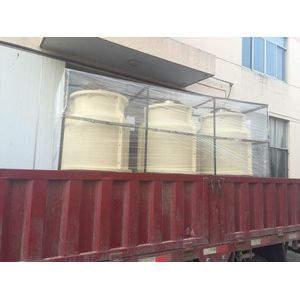

5)Q:How about the packing of this model?

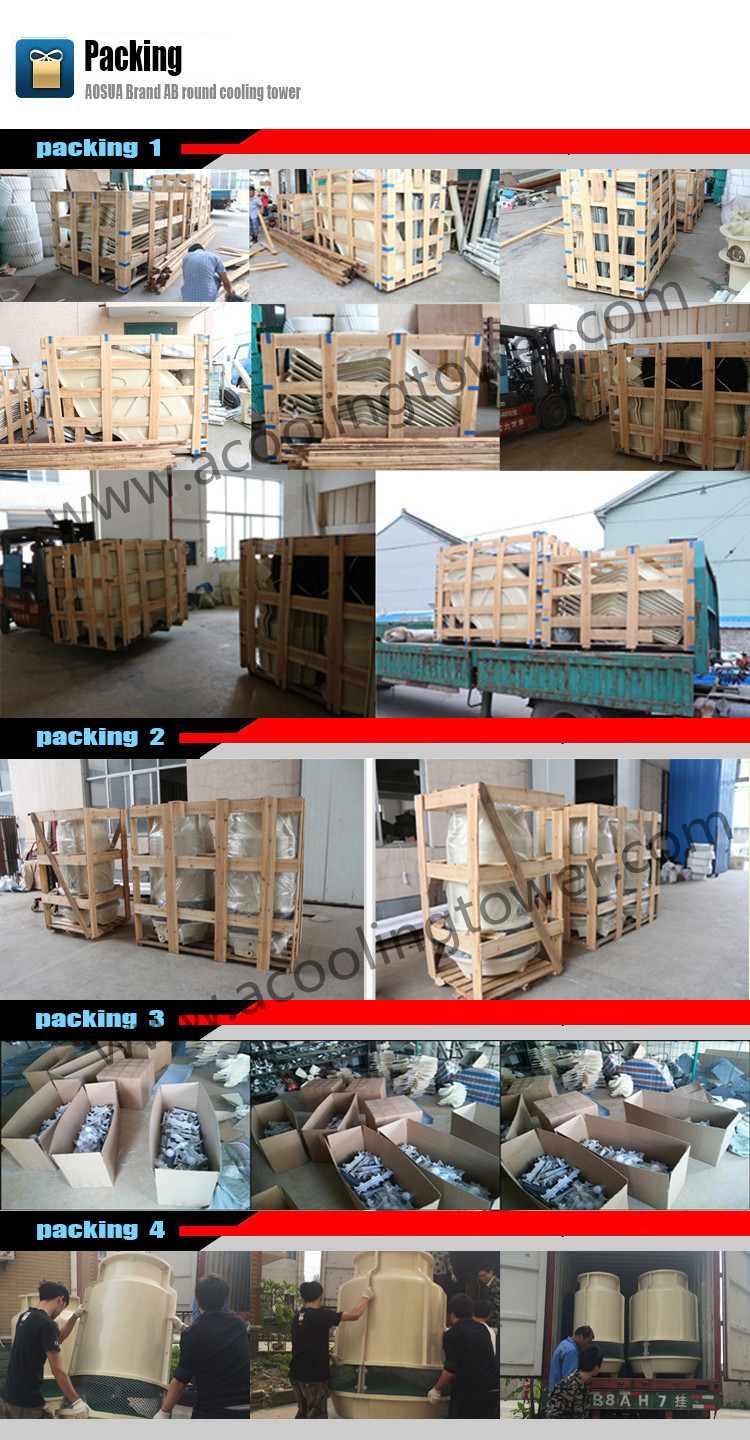

A: Wooden packing, Plywood board packing, 20 feet container, 40 feet container

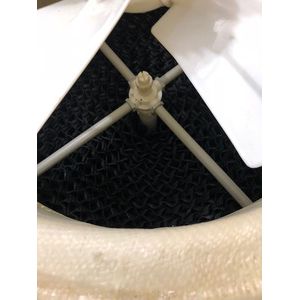

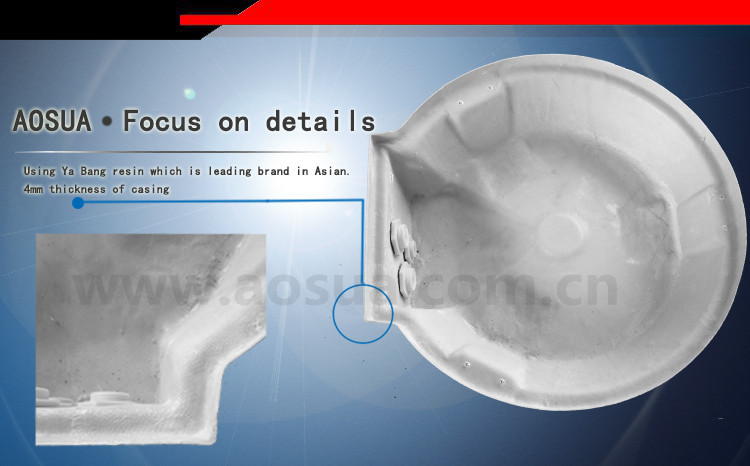

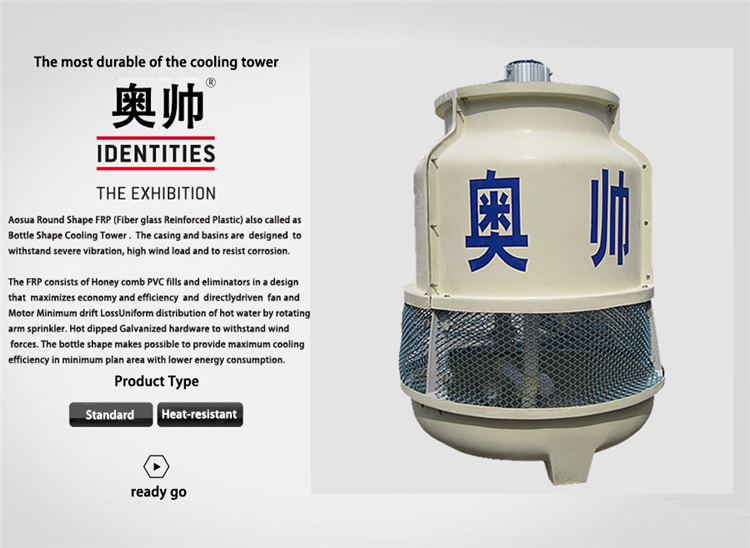

Aosua round counter flow cooling tower is mainly composed by motor,fan,sprinkler head,filler,casing,basing and air intake louver.

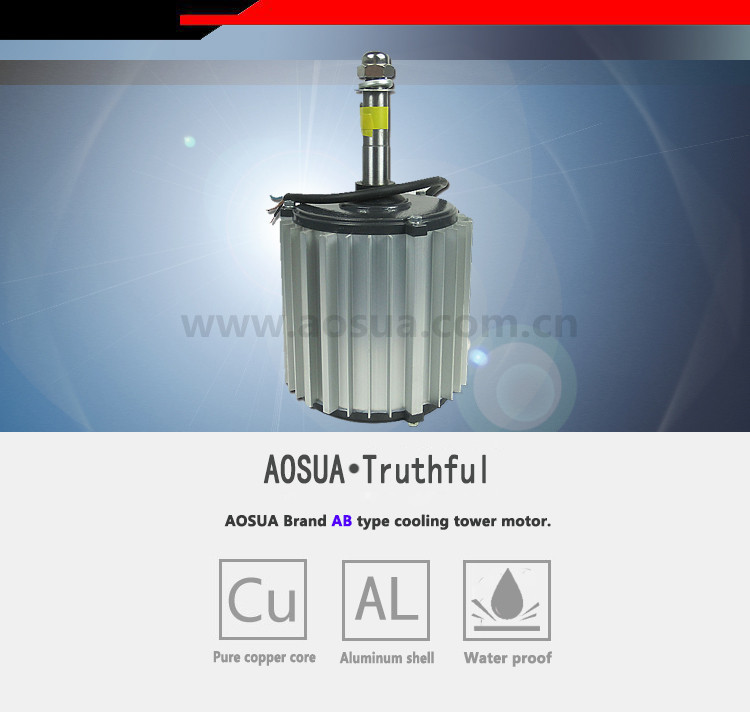

Aosua Round counter flow cooling tower has been technique corrected in the original basis.Not only match up high quality motor but also improve product’s material selection and technology.It make Aosua round counter flow cooling tower have more perfect users experience.
There are two types of round counter flow cooling tower heat resistant(GAB) and standard type(AB).
GAB is suitable when water inlet temperature over 55 C degree.AB is suitable when water inlet temperature under 55 C degree.
| Model | Flow m3/h | Fan Diameter mm | Theoretical Wind m3/h | Motor Power (KW) | Dimension (mm) | Weight (kg) | ||
| Hight | Max outer diameter | |||||||
| Shipping | Operating | |||||||
| AB-6 | 6 | 584 | 3400 | 0.18 | 1410 | 930 | 53 | 133 |
| AB-8 | 8 | 584 | 4500 | 0.18 | 1560 | 930 | 56 | 139 |
| AB-10 | 10 | 584 | 5700 | 0.18 | 1670 | 1020 | 75 | 200 |
| AB-12 | 12 | 760 | 6800 | 0.37 | 1700 | 1100 | 84 | 219 |
| AB-16 | 16 | 760 | 9100 | 0.37 | 1780 | 1250 | 110 | 365 |
| AB-20 | 20 | 760 | 11300 | 0.37 | 1780 | 1400 | 140 | 300 |
| AB-25 | 25 | 760 | 15000 | 0.55 | 1960 | 1400 | 160 | 364 |
| AB-30 | 30 | 844 | 17000 | 1.1 | 1980 | 1620 | 165 | 369 |
| AB-40 | 40 | 844 | 21000 | 1.1 | 2010 | 1840 | 165 | 369 |
| AB-50 | 50 | 844 | 23000 | 1.1 | 2210 | 1840 | 191 | 433 |
| AB-60 | 60 | 1000 | 28000 | 1.5 | 2400 | 2000 | 368 | 730 |
| AB-70 | 70 | 1190 | 33000 | 1.5 | 2530 | 2230 | 423 | 753 |
| AB-80 | 80 | 1470 | 45000 | 2.2 | 2680 | 2500 | 607 | 1023 |
| AB-100 | 100 | 1470 | 50000 | 2.2 | 2820 | 2900 | 695 | 1130 |
| AB-125 | 125 | 1800 | 57000 | 4 | 3130 | 3300 | 908 | 1588 |
| AB-150 | 150 | 1800 | 70000 | 4 | 3350 | 3300 | 1015 | 2035 |
| AB-175 | 175 | 1800 | 85000 | 4 | 3670 | 3600 | 1310 | 2540 |
| AB-200 | 200 | 1800 | 99000 | 4 | 3900 | 4000 | 1613 | 3117 |
| AB-225 | 225 | 2400 | 113000 | 5.5 | 4165 | 4500 | 1796 | 3465 |
| AB-250 | 250 | 2400 | 142000 | 5.5 | 4290 | 4500 | 2121 | 3876 |
| AB-300 | 300 | 3000 | 171000 | 7.5 | 4435 | 4900 | 2235 | 3990 |
| AB-350 | 350 | 3000 | 210000 | 11 | 4735 | 5300 | 2420 | 6101 |
| AB-400 | 400 | 3400 | 228000 | 11 | 4820 | 6100 | 3153 | 8135 |
| AB-450 | 450 | 3400 | 285000 | 15 | 4820 | 6100 | 3347 | 9332 |
| AB-500 | 500 | 3700 | 342000 | 15 | 5145 | 6800 | 3860 | 10970 |
| AB-600 | 600 | 3700 | 400000 | 18.5 | 5145 | 6800 | 4084 | 11679 |
| AB-700 | 700 | 4200 | 456000 | 22 | 5732 | 8000 | 5460 | 13254 |
| AB-800 | 800 | 4200 | 570000 | 22 | 6050 | 8000 | 6074 | 14574 |
| AB-1000 | 1000 | 5000 | 712000 | 30 | 6390 | 8880 | 7315 | 15110 |
