400T Cross Flow Square Water Cooling Tower Features:
1. Frame adopt the national standard Tang Gang, high hardness, thick material, load-bearing capacity, surface hot galvanized treatmen.
2. Body casing material, surface layer of plastic used imported wax layer + 33 # gel coat layer, hard and durable, glass steel layer with 889 # resin + boulder fiber, toughness, high hardness, acid
3. All the tower with stainless steel screws, durable and not rust.This is customized part.
4. Exhaust system using high-quality copper core motor and aluminum alloy blade, wear-resistant, high temperature
5. oblique pattern design PVC film to reduce the flow rate, increase the heat transfer area, greatly improve the cooling effect
6. Other: stainless steel float copper valve, nylon cable knot, high temperature corrosion resistance
Item | Content | Value | Remarks |
Basic specs | Cooling Tower Type | Cross square type tower |
|
Model | AYD-400T | Low Noise | |
Circulating Water Flow | 400 m3/h |
| |
Inlet Temp/Outlet Temp | 37℃/32℃ |
| |
DB Temp | 31.5℃ |
| |
WB Temp | 27℃ |
| |
Cooling Capacity | 2,000,000 kcal/h |
| |
Noise Value | 62.5dB(A) |
| |
Power Supply | 380V/3P/50Hz |
| |
Water Requirement | PH=6-8 |
| |
Design specs | Air Water Scale | 0.68 kg/kg |
|
Tower Head | 40kPa |
| |
Flying Water Loss | ≤0.001% |
| |
Evaporation Loss | 0.83% |
| |
Net/Running Weight | 2830 kg/6680 kg |
| |
Motor fan specs | Fan Type | Axial-Flow |
|
Air Volume | 240,000m3/h |
| |
Total Static Pressure | 90Pa |
| |
RPM | 240r/min |
| |
Fan Dia(Φ) | 3,200 mm |
| |
Quantity of Fan | 4pcs/set | One set | |
Motor Type | All Closed Water-proof |
| |
Driving Mode | Belt |
| |
Motor Power | 11 kW |
| |
Start Way | Y |
| |

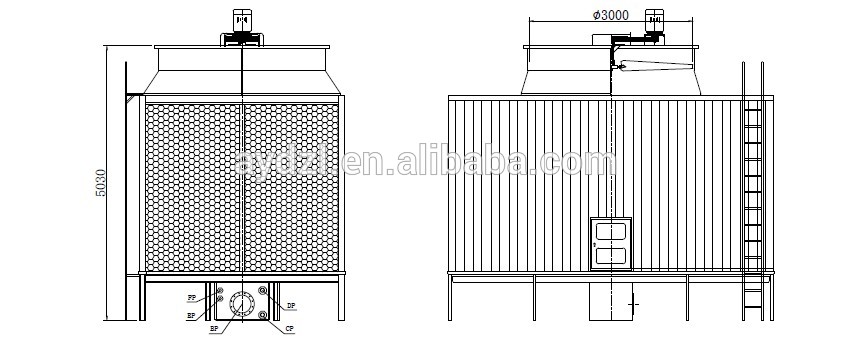

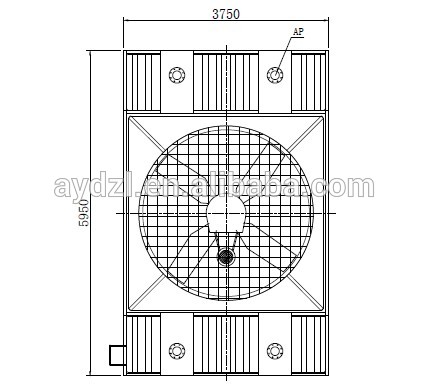

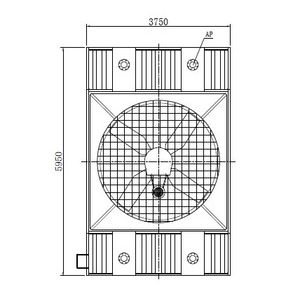

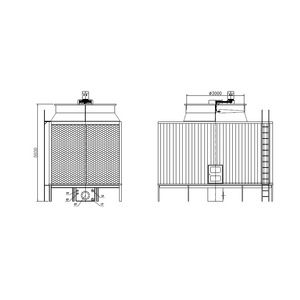

Main Dimension | L*W*H | 3750*5950*5030 mm |
|
Inlet Pipe Size(DN) | 150mm | four sets | |
Outlet Pipe Size(DN) | 300mm | One set | |
Overflow/Drain Pipe(DN) | 80mm/80mm | One set separately | |
auto/manual supply(DN) | 50mm/50mm | One set separately | |
Material | Orifice | Glass Fiber Reinforced Plastics | Synthesis of high quality glass fiber felt and resin |
Sprinkler System | |||
Boarding | |||
Basin, Vat | |||
Belt | Composite Material | Japan Mitsuboshi | |
Fan | Aluminum Alloy | Big Chord Arc | |
Motor | All Closed Water Proof | Level of Protection IP55 Insulation Grade F | |
Film | P.V.C. | ZR | |
Iron Frame, Motor Frame | hot-dipped galvanized steel | GB/T-13912-2002 |
