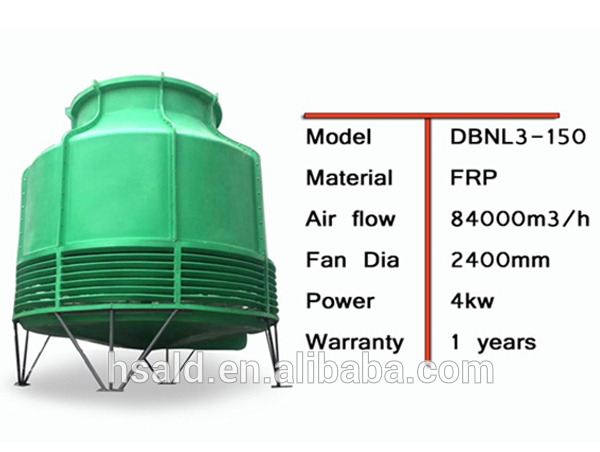

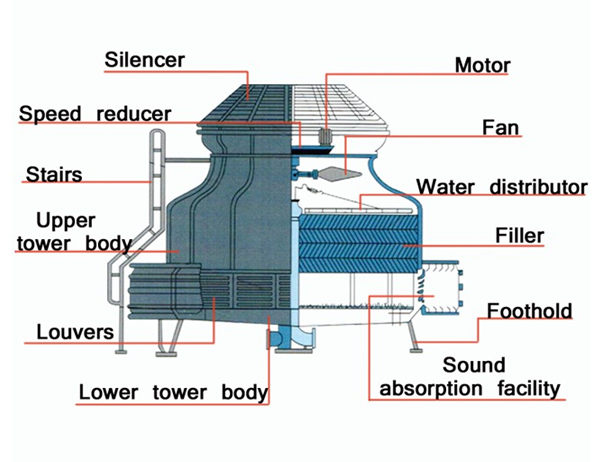

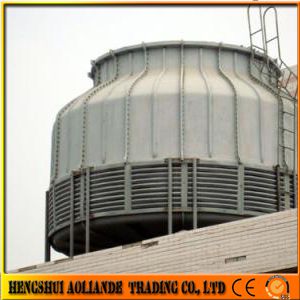

1. The body of the tower is made of FRP (fiber reinforced plastics), and its surface is bonded by gel coat resin, it has aging-resistant, corrosion resistant and beautiful & smooth surface etc characteristics.
2. The fan can be made of aluminum alloy or FRP, it has large wind volume, low noise, high efficiency, stable running, long service life etc characteristics.
3. The motor is the special motor which can be used outdoor, it has energy saving, high efficiency etc properties, the speed reducer is the special used for the cooling tower.
4. The filler is new type and high efficiency, it has water distribution is uniform, small wind resistance and high temperature resistant etc characteristics.
5. The steel support adopts advanced galvanization process, it has excellent corrosion resistant property.

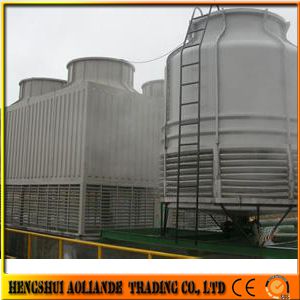

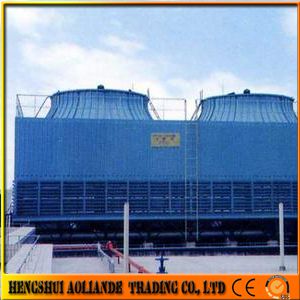

6. Because the cooling tower can be installed by assembly, the volume of water treatment can be increased manyfold, but the land which be used for the cooling tower is small.

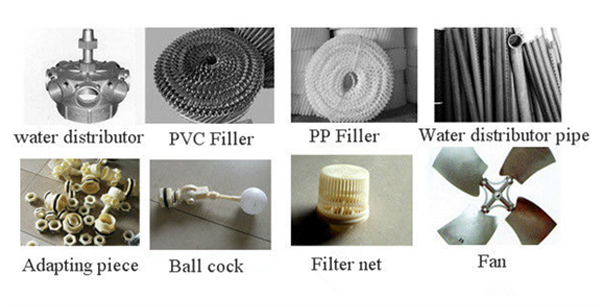

The water treatment volume of single cell is 50m3/h-7000m3/h, except help customers to buld new cooling towers, we also provide maintenance service, include replace old PVC fill, ABS spraying head, FRP panels etc.
| Model No. | Water | Enclosure | Enclosure | Fan | Power | Transportation | Operation | Noise |
| flow | Diameter | Height | Propeller | Input | Weight | Weight | (dB) | |
| rate (CMH) | (mm) | (mm) | Dia. | (kw) | (kg) | (kg) | ||
| (mm) | ||||||||
| RC-10T | 7.2 | 1060 | 1400 | 600 | 0.18 | 50 | 95 | 62 |
| RC-15T | 11.7 | 1060 | 1500 | 600 | 0.18 | 54 | 290 | 62.5 |
| RC-20T | 14.4 | 1160 | 1760 | 600 | 0.37 | 67 | 300 | 63 |
| RC-25T | 18.5 | 1430 | 1950 | 770 | 0.55 | 98 | 500 | 63 |
| RC-30T | 23.4 | 1620 | 1800 | 770 | 0.55 | 116 | 530 | 63 |
| RC-40T | 31.2 | 1620 | 2050 | 770 | 0.55 | 130 | 550 | 63 |
| RC-50T | 39.2 | 1810 | 2040 | 930 | 0.75 | 200 | 975 | 63.5 |
| RC-60T | 46.8 | 2100 | 2150 | 1150 | 1.5 | 250 | 1250 | 63.5 |
| RC-80T | 62.6 | 2100 | 2410 | 1150 | 1.5 | 280 | 1280 | 64 |
| RC-100T | 78.1 | 2700 | 2540 | 1450 | 2.2 | 450 | 1500 | 64.5 |
| RC-125T | 97.5 | 2700 | 2600 | 1450 | 2.2 | 540 | 1740 | 64.5 |
| RC-150T | 117 | 3000 | 2670 | 1450 | 2.2 | 580 | 1780 | 66 |
| RC-175T | 136.8 | 3300 | 1780 | 1750 | 4 | 760 | 1860 | 66 |
| RC-200T | 156.2 | 3300 | 2780 | 1750 | 4 | 780 | 1880 | 66 |
| RC-225T | 175.5 | 4100 | 3850 | 2100 | 5.5 | 1050 | 2770 | 66.5 |
| RC-250T | 195.1 | 4100 | 3850 | 2100 | 5.5 | 1080 | 2800 | 67 |
| RC-300T | 234 | 4700 | 4030 | 2400 | 7.5 | 1760 | 3790 | 67.5 |
| RC-350T | 273.2 | 4700 | 4030 | 2400 | 7.5 | 1800 | 3930 | 68 |
| RC-400T | 312.1 | 5600 | 4100 | 2700 | 11 | 2840 | 5740 | 68 |
| RC-500T | 392.4 | 5600 | 4100 | 2700 | 15 | 2900 | 5800 | 68.5 |
| RC-600T | 468 | 6600 | 4470 | 3400 | 15 | 3950 | 9350 | 68.5 |
| RC-700T | 547.2 | 6600 | 4470 | 3400 | 18.5 | 4050 | 9450 | 69 |
| RC-800T | 626.4 | 7600 | 4720 | 3700 | 22 | 4700 | 11900 | 70 |
| RC-1000T | 781.2 | 7600 | 4720 | 3700 | 22 | 4900 | 12100 | 70.5 |
1. Whether you have the modle number and the product size we want?
Answer: Don't worry.We can make the modle number and the product size you want.
2.Whether the quantity of the order effect our discount ?
Answer: It's sure that your order quantity will effect your discount.Because the more
you ordered, we will save more cost,so we could give you the more privilege.
3.If you have any other questions,please contact us coveniently,we will answer your
questions as well as quickly.
1. Answering emails or solving questions timely.
2. Delivery and update information on time.
3. We believe that good quality and service are the basic of long term business.
Look forward to cooperating with you !
We will do our best to deal with the problems our customers encountered, in order to ensure our customers' satisfaction and also improve our better reputation.
