Anhui Kaifeng Plastic Machinery Co., Ltd. is a professional manufacturing, manufacturing, sales, and service as one of the plastic auxiliary equipment and industrial temperature control of the field of outstanding manufacturing enterprises.
We have 10 years experience of the designer team, To provide the best service to our customer.
Our products have passed the ISO9001 and CE system certification.

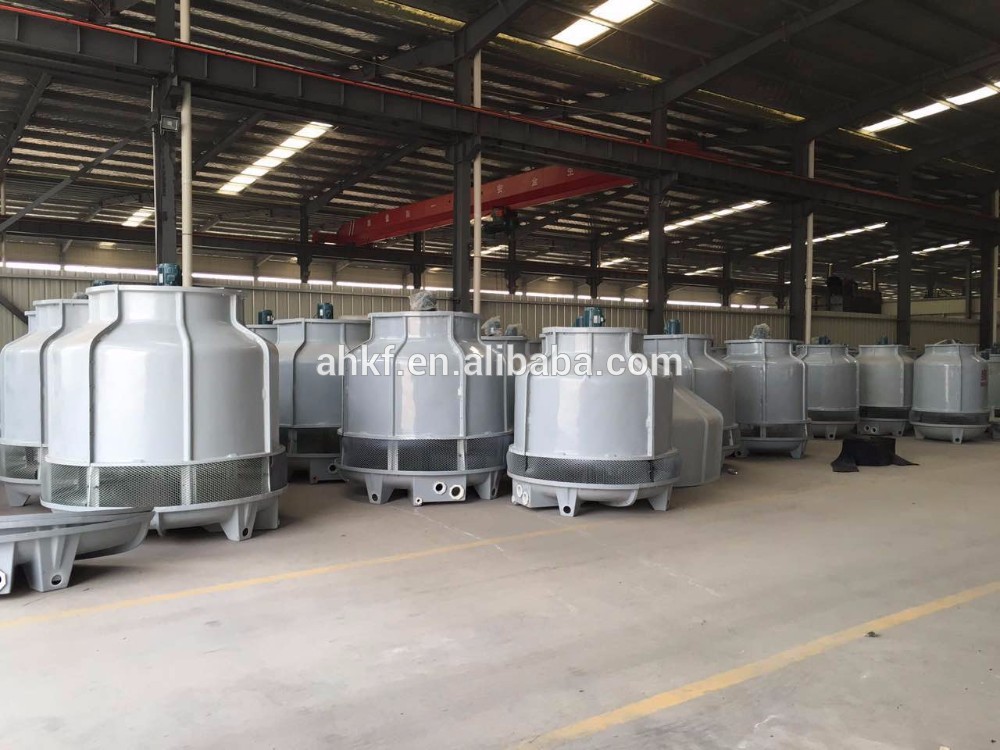

The main production of industrial chillers, plastic crusher, mold temperature control machine, Hopper dryer, Hopper loader, mixer and cooling towers.

Products in Europe, the Americas, Africa, Southeast Asia, more than 20 countries and gain acceptance.

WORKING PRINCIPLE

1, Working fluid (water, oil o other liquid) flowing inside of the coils, which is enwrapped by spray water on the outside. The heat of water is transferred by the coil and become the saturated vapor when meeting the water and air.
2, the heat is exhausted out of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously. The spray water is cooled down via PVC radiation fin in the process of circulation, and flow is the same direction with the fresh wind. The coil mainly takes sensible heat travel style.
3, the most benefit of this style is can avoid scale formation on the outside of the coil. And this will apply especially to dealing with high-temperature fluid (e.g. 60°C) or the fluid need big temperature difference (e.g. 60°C to 32°C).

Body structure and performance

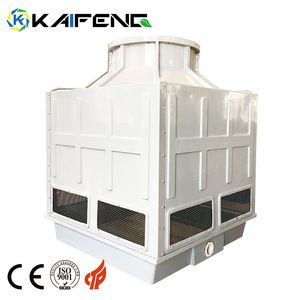

The 8ton fiber reinforced plastic cooling tower body is made of high-quality fiberglass reinforced plastics, the rubber coating surface of which is made of imported raw materials, which is even in color and will not fade or degrade easily.All structure parts made of steel are processed in hot-galvanizing.Injected molded parts are used widely for they are erosion-proof, high in intensity, light in weight and easy to attach.
The cooling tower has a successful water floating control, rendering a loss less than 0.001%.
-Use low-speed wind machine to avoid too much water spray in the air;
-Use waterproof sleeves on water distribution pipes to collect spilled water;
-The ground frame is larger than enclosure and is equipped with PVC shutters to avoid water spilling out of the tower.

Advantages

Low-noise control principle
Lowering noise from the sound source.The special power machine is filled closed automatic cooling type low-noise cooling tower.Such kind of machine is good at water-proof performance, low in noise.

1.Low-speed fan to avoid excessive mist into the air.

2.FRP body contains stable materials resisting ultraviolet radiation with a long service life.
3.Filled with round counterflow model film.
4.Rotating pipe distributing model.
5.The structure contains rust-removing and high-strength galvanized steel which can bear corrosion and can be easily assembled.
6.Different types(standard,low-noise,high-temperature and industrial type) to meet your needs.

Main Features

1, Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2, Most used for air conditioning cooling, freezing, plastic chemical industry;
3, Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.

· How about the quality of your product?

· Our products manufactured strictly according to national and international standard.

· We have CE, ISO certification.

· We take a test on every product before delivery.

· How about the price of this product?

· We can give the lowest price than market one.
· We do quotation as soon as possible for any customer.
· Discount can be given according to quantity.

· What is the MOQ?

· 1 set.

· If you can be customized?

· We can make products according to customer's requirements.

· What is the voltage?

· 380V 50hz 3 phase or any other voltage according to client's requirement.
