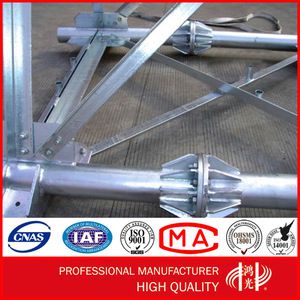

Hot Dip Galvanized Electrical Transformer Steel Structure For Electric Power Substation

PRIMARY PARAMETERS

Place of Origin

Jiangsu, China (Mainland)

Brand Name

JSHG

Model Number

HG-SS-550KV

Product Name

Electric Power Substation

Voltage Grade

500KV

Material

Hot roll steel Q235, Q345, Q420, Q460, Gr.50, Gr.65, SS400, etc.

Shape

Round/polygonal/Conical/Tubular

Appearance Treatment

Hot-dip galvanized/painting

Connection structure

overlap/flange connection

Welding

According to AWS D 1.1, CO2 welding or submerged arc auto methods

Application

Power Transformer Substation

Certificate

ISO9001-2008

DETAIL DESCRIPTION

Company Information

JIANGSU HONGGUANG STEEL POLE CO., LTD.

With over 15 Years of Experience/ Capable to Handle Volume Orders

Exporting to Southeast Asia, Africa, Europe, Austrlia, the Middle East, South America, etc.
Founded in 1998, Jiangsu Hongguang Steel Pole Co. Ltd (JSHG) specializes in manufacturing various steel structures. We manufacture a variety of products like Transmission Poles and Substation Structures for the power transmission industry; high masts and street lighting poles for illumination, which are widely used in expressways, airports, ports and docks, depots, parking lots and stadiums; tower poles for funicular railways; Telcommunication poles for the telecommunication industry; Traffic Poles & Camera Poles & Sign Structures for transportation Industry and Advertising Industry.

Product Description

Key Specifications

Products	Electric Power Substation
Type	Tublar Steel structures, Angle Steel Structures, etc.
Voltage Grade	10~500KV (10KV, 13.8KV,33KV, 35KV, 66KV, 110KV,132KV, 220KV, 230KV, 330KV, 500KV or Others )
Shape	Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material	Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Wall thickness	2~30mm
Once Forming	16m Once forming without joint
Welding	Welding complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods No fissure, scar, overlap, layer or other defects Internal and external welding makes the pole more beautiful in shape If customers need any other requirements of welding, we also can make adjustment ad your request
Joint	Joint with insert mode, flange mode.
Base plate	Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanization	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
Painting	According to clients' request
Life Period	More than 25 years, it is according to installing environment
Certificates	ISO9001-2008 , AAA credit rating, etc

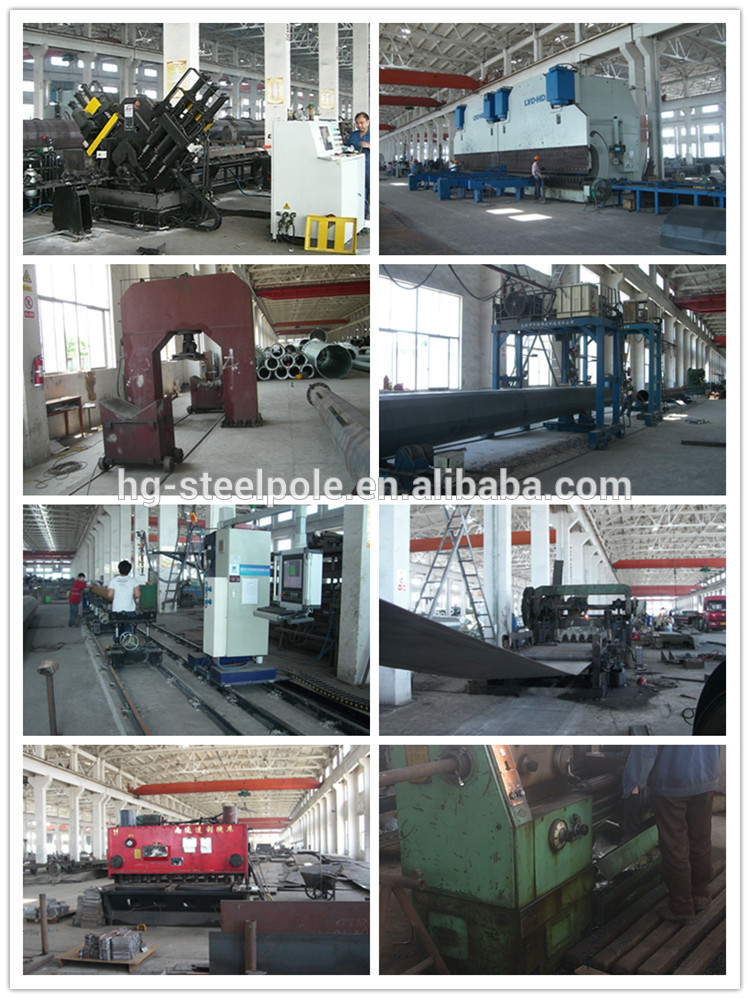

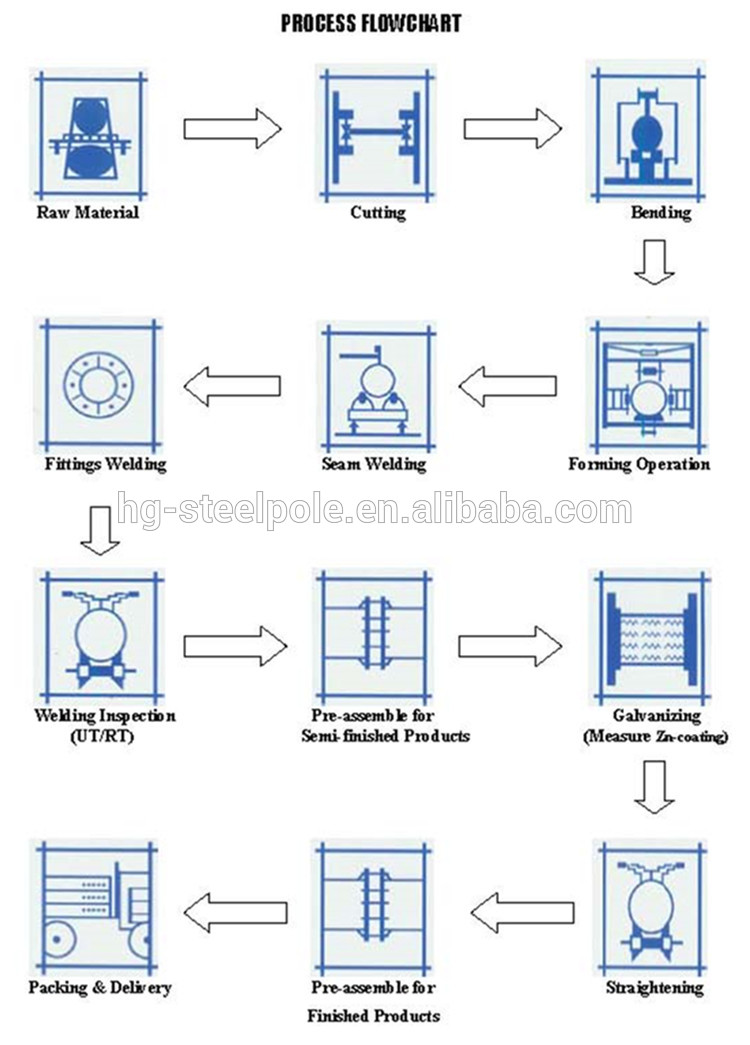

Key Production Equipments

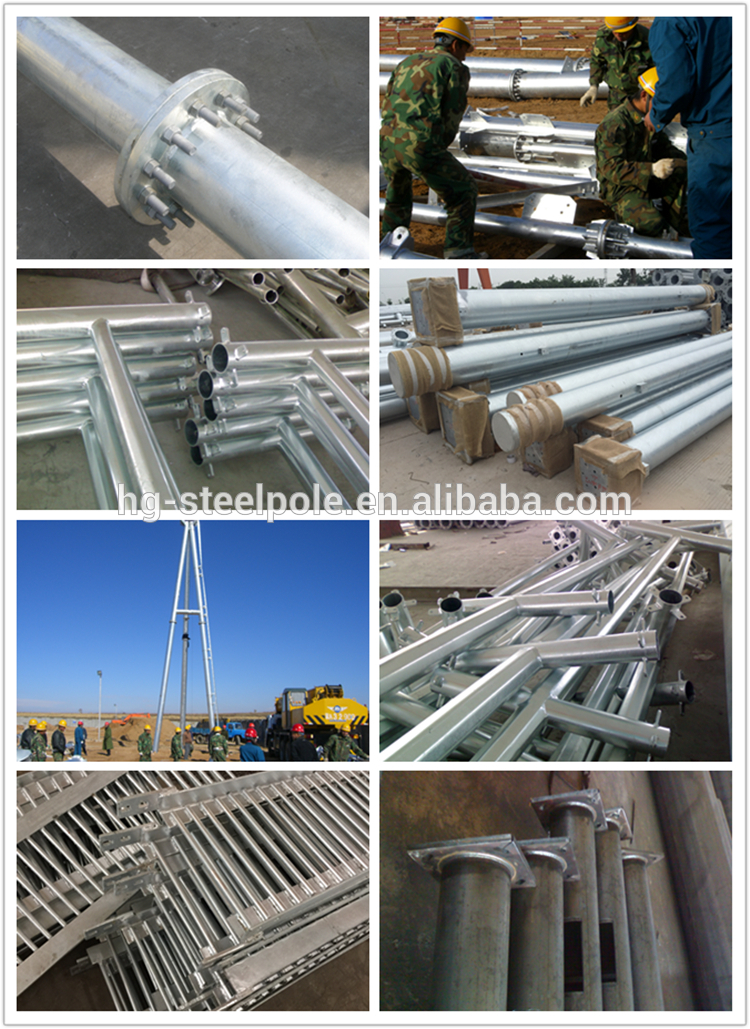

Product Details

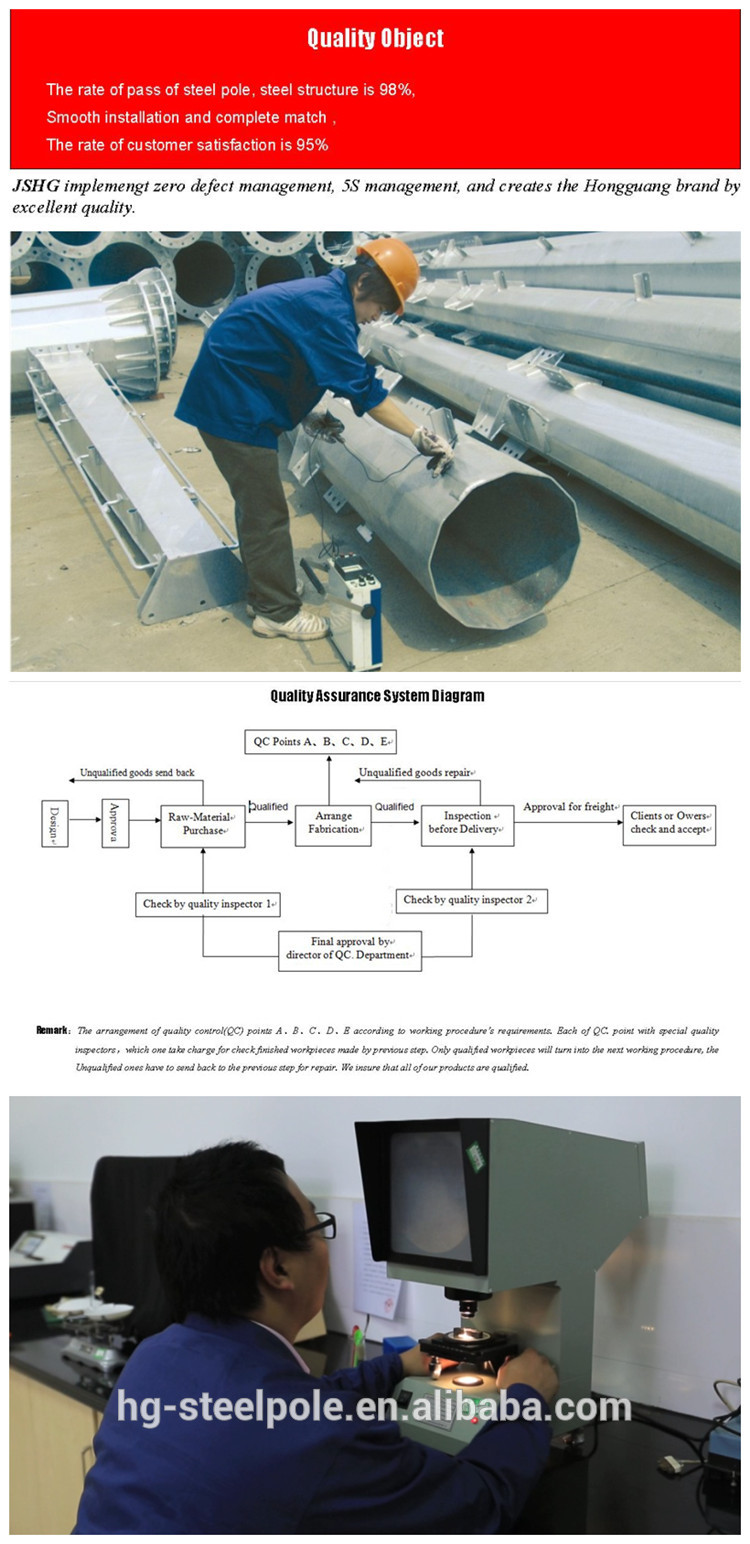

Quality Control Management

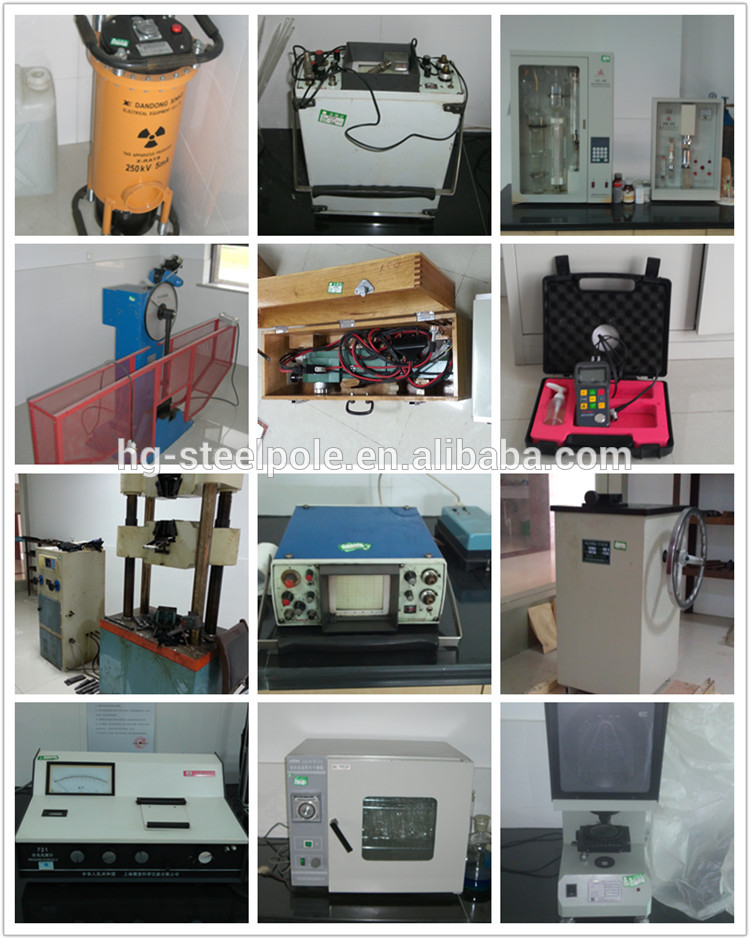

Key Test Equipments

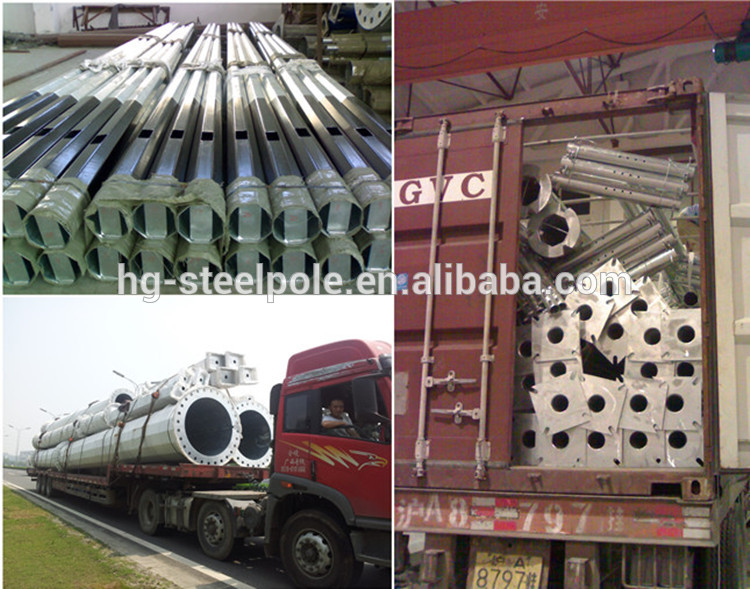

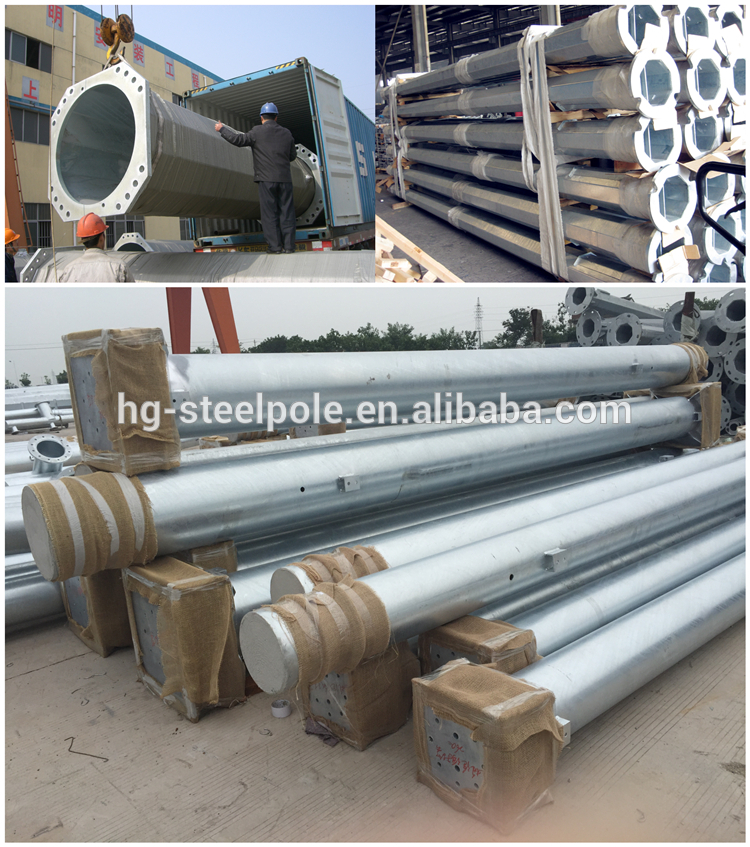

Packaging & Shipping

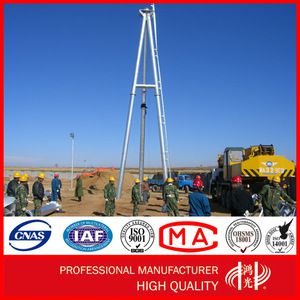

Installation Site

Terms and Conditions

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, crossarm and anchor bolt.
Shipping seaport: Shanghai Seaport.
Please provide drawings if you have so that we can calculate the accurate price for you.
We also provide design according to your requests, if you don't have drawings.

2. MOQ: One 40FT Container.

3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.

5. Package: Normally wraped by plastical bags or burlap cloth at the top and bottom,or according to clients requirement.

Our Services

Reply within 24 Working Hours
Factory Direct Sale
More than 15 Years Design & Manufature Experience
Capable to Handle Volume Orders
High-Quality and Low-Price Products
Provide Professional Design by Our Experienced R&D Engineers
Rich Exporting Experience
ODM, OEM Acceptable
Technical Support by E-mail
Calling service

Jiangsu Hongguang Steel Pole Co., Ltd.

Address: Wanshi Industrial Zone, Yixing City, Jiangsu Pro., P.R.China, 214212

Telphone: +86 510 878 441 56

Fax: +86 510 878 435 28

Trade manager ID: cnhgsteelpole

Skype: tangjia870124

Please feel free to contact us!
