Qualified Electrical Mobile Substation
Contact us to customize your own Mobile substation please.

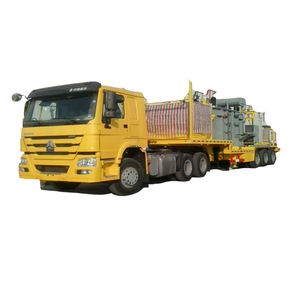

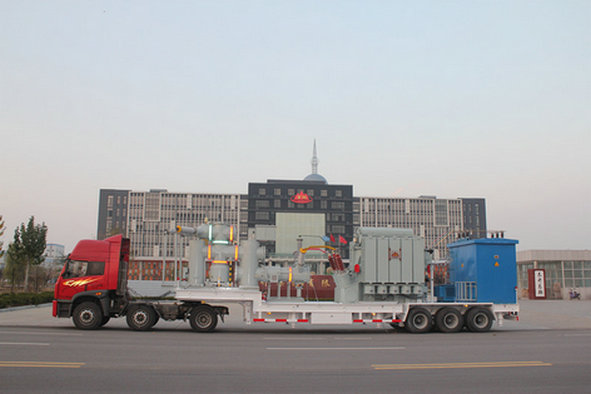

Truck-mounted mobile substation (short for Mobile Substation) is a kind of electric truck-mounted transformer equipment that integrates High voltage switch, main transformer, medium voltage electric power unit and secondary system with trucks, which can meet the need of transportation, there is transformer function of setted truck-mounted substation substation.
Mobile substation is optimized and customized to truck-mounted aimed at traditional transformer sunstation. By deep research to the equipment itself first and the module itself, we solve the problems of Over wide,over high, and over heavy, badly adpatable to the roads, and not reliable. Electric voltage level goes from 10kV-220kV, voltage change volume goes from 5000kV-50000kV, and it is is able to replace the common transformer substation in emergency, adaptable for most common tranformer stations.
Technical parameter
Item | Model | Rated Current | Short-time Withstand current |
35kV Combination appliance | ZCW10-40.5 | 1600A,2000A,2500A,3150A | 31.5kA/4S |
66kV Combination appliance | ZF10-72.5 | 1600A,2000A,2500A,3150A | 40kA/4S |
110kV Combination appliance | ZF10-126 | 2000A,2500A,3150A,4000A | 40kA/4S |
220kV Combination appliance | ZF10-252 | 2000A,2500A,3150A,4000A | 40kA/3S |
Transformer Parameter Form
Volume(kVA) | Voltage Level | Phase | Frequ-ency | Connection groups | Cooling Method | Short-circuit impedance |
5000 | 35/6.3kV | 3 | 50Hz | Yd11 | ONAN/ONAF | 6.5% |
12500 | 35/10kV | 3 | 50Hz | Dy11 | ONAN/ONAF | 6.5% |
20000 | 66/13.8kV | 3 | 50Hz | Dyn11 | ONAN/ONAF | 7% |
25000 | 110/10.5kV | 3 | 50Hz | Dyn11 | ONAN/ONAF | 10.5% |
31500 | 110/11kV | 3 | 50Hz | Ynd11 | ONAF | 10.5% |
40000 | 110/35kV | 3 | 50Hz | Ynd11 | ONAF | 10.8% |
50000 | 220/35kV | 3 | 50Hz | Dyn11 | ONAF | 14% |
Switch Cabinet
Name | Model | Rated Current | Short-time Withstand corrent |
10kV Air Cabinet | KYN28-12 | 1250A,1600A,2000A,2500A | 31.5kA/4S |
10kV SF6 Cabinet | XGN46-12 | 1250A,1600A,2000A,2500A | 40kA/4S |
35kV SF6 Cabinet | XGN46-40.6 | 1250A,1600A,2000A,2500A | 31.5kA/4S |
You can contact us to customize your own Mobile substation.

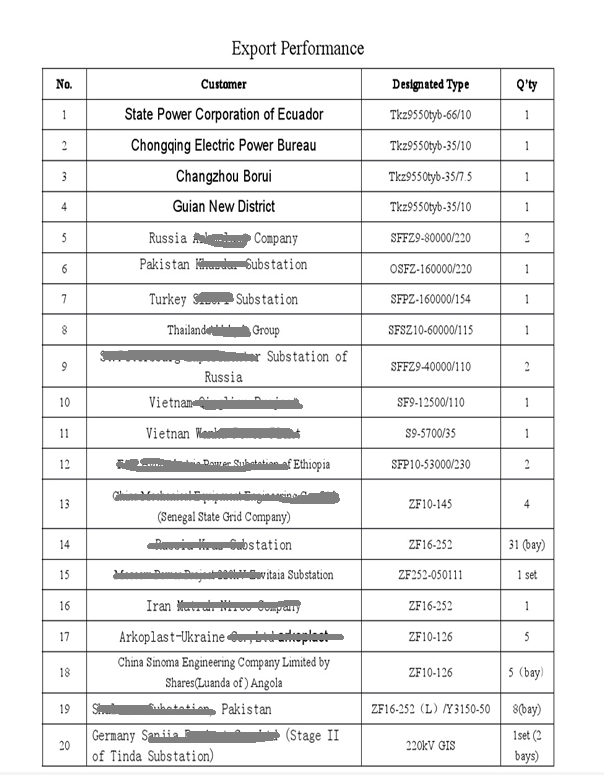

We are new in Alibaba, but not new in International market.
Company certificates
After sales services
If there were any problems, welcome to contact us anytime. We will always be there for you.
If there were something wrong with the equipment, part of the problems can be solved online, Once some parts are broken, you can inform us and we will quote for you and send you the parts as soon as possible.
