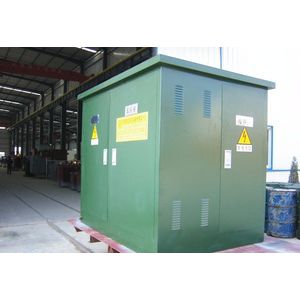

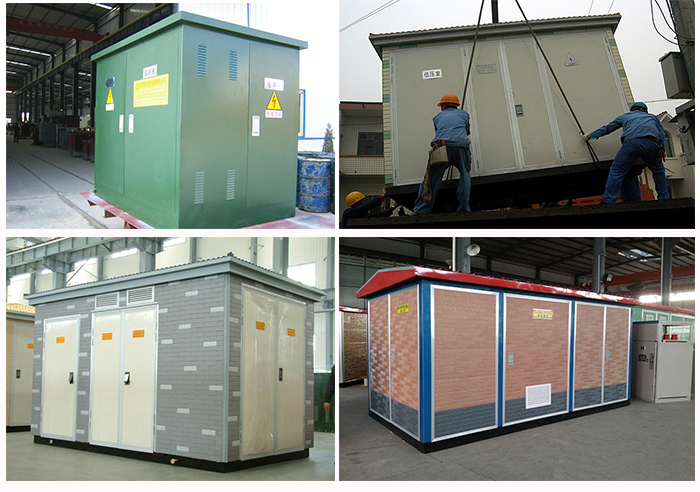

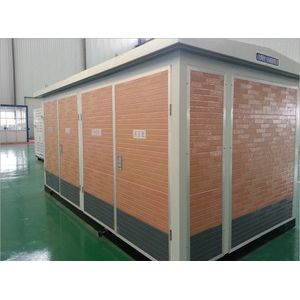

Prefabricated package substation 11kv power substation equipment

ZGS11-Z.F-/35 series combined type transformer is developed and designed to meet the increasing wind power supply requirement, and integrates boosting transformer body, high/low voltage switchgear, current limiting fuse, tap switch and the corresponding auxiliary equipment. The ideal solutions are provided for customers based on the specialty of wind power generation. It is an ideal supporting electrical equipment of the wind generating set. It has advantages including high efficiency, energy conservation, strong matching capacity, easy installation, short construction circle, low maintenance cost, high structural strength and strong weather resistance and is suitable for the operating environment including beach, prairie and desert with worse natural conditions.

Product Features:

• The transformer winding adopts high-quality oxygen-free copper conductor, and owns low no-load loss and strong overload capacity.

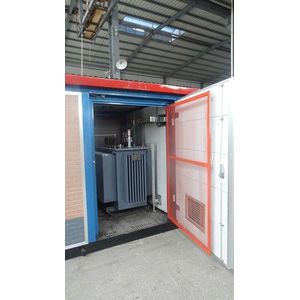

•  L-shaped structure consists of high-pressure chamber and low-pressure chamber transformer, and is divided into integrated box-type and split box-type.
• The shell is enclosed anti-theft structure, adopt concealed high-strength bolts, oil-proof nitrile rubber gasket and airtight tank cover, no dismountable bolt is exposed, high reliability
• Small volume, compact structure, the area is reduced effectively
• The box adopts special technology and structure, good sealing property, sunburn protection, anti-corrosion, adapt to the worse work environment

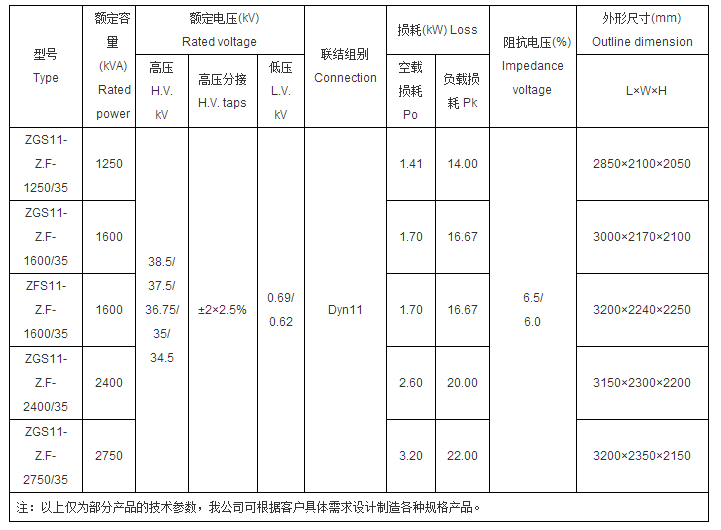

Technical data of the 35kV padmount transformer of wind power
