three phase 10kv 35kv rated voltage YB Series Pre-installed Type electric power distribution substation

The detail information 1 of   electric power distribution substation  The detail information 2 of  electric power distribution substation  The high voltage unit tech date of  electric power distribution substation  The low voltage and transform

Technical Feature

  • China (Mainland)
  • Yari
  • YR-YB009
  • 30-3150kva
  • distribution line
  • GB/T17467 IEC601330
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$25~3

PRIMARY PARAMETERS

Place of Origin
China (Mainland)
Brand Name
Yari
Model Number
YR-YB009
Rated capacity
30-3150kva
Application
distribution line
Standard
GB/T17467 IEC601330
Voltage
under 35kv
Frequency
50HZ
Phase
three
Coil Structure
Toroidal
Winding Material
copper
Series
YB

DETAIL DESCRIPTION

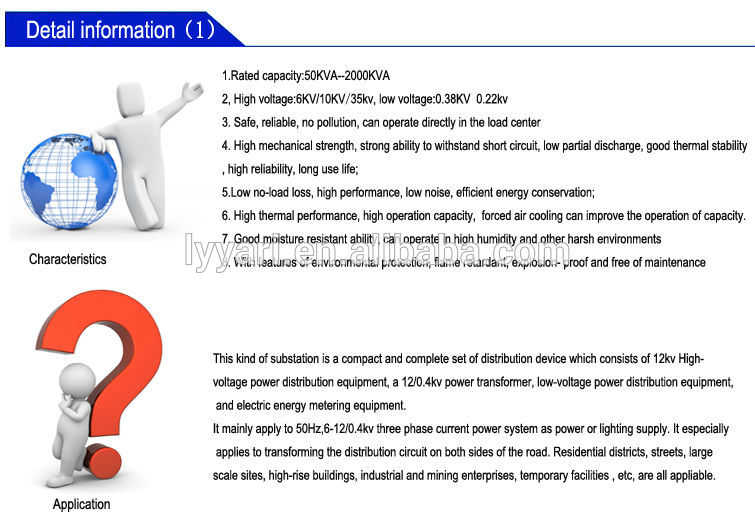

The detail information 1 of   electric power distribution substation

detail information 1.jpg



The detail information 2 of  electric power distribution substation

Detail information2.jpg

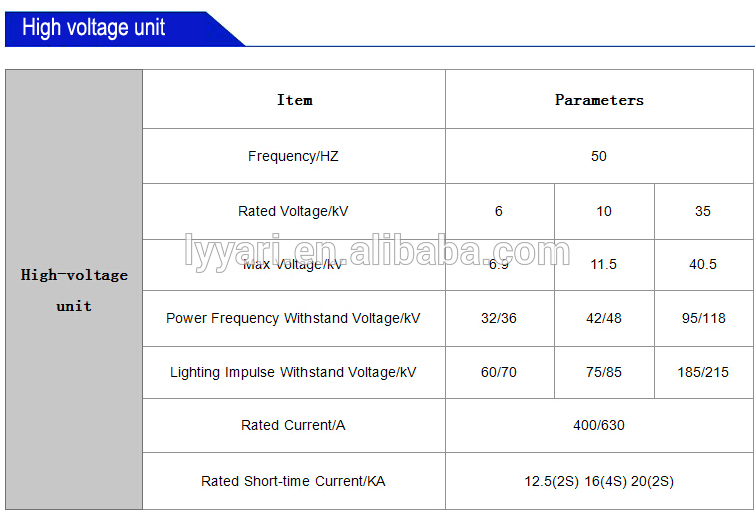

The high voltage unit tech date of  electric power distribution substation

high voltage unit.jpg

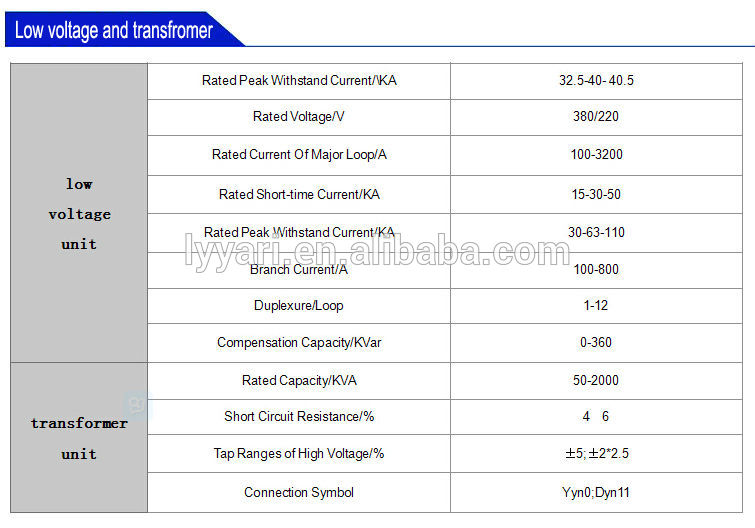

The low voltage and transformer unit of  electric power distribution substation

low voltage.jpg

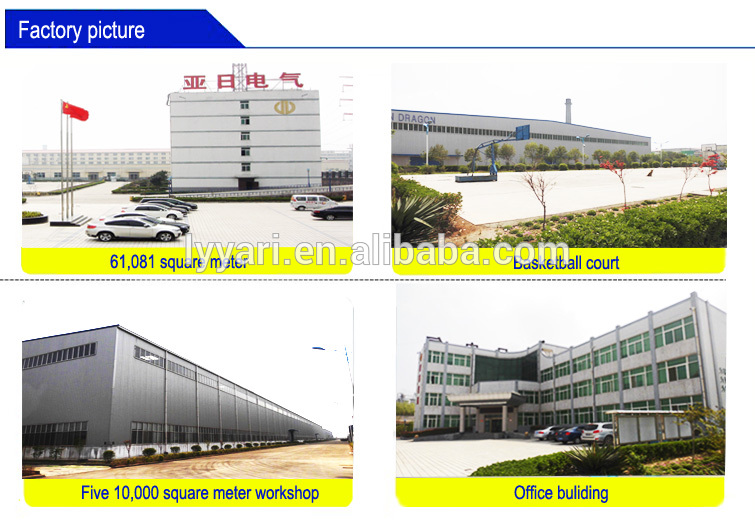

The factory of   electric power distribution substation

factory picture.jpg

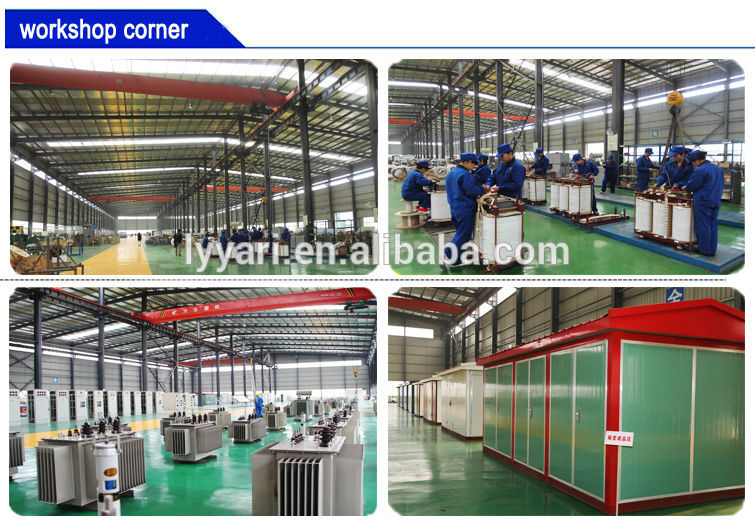

The workshop corner of  electric power distribution substation

.jpg



Pls contact us for electric power distribution substation

PLS transformer.jpg
