++++Application

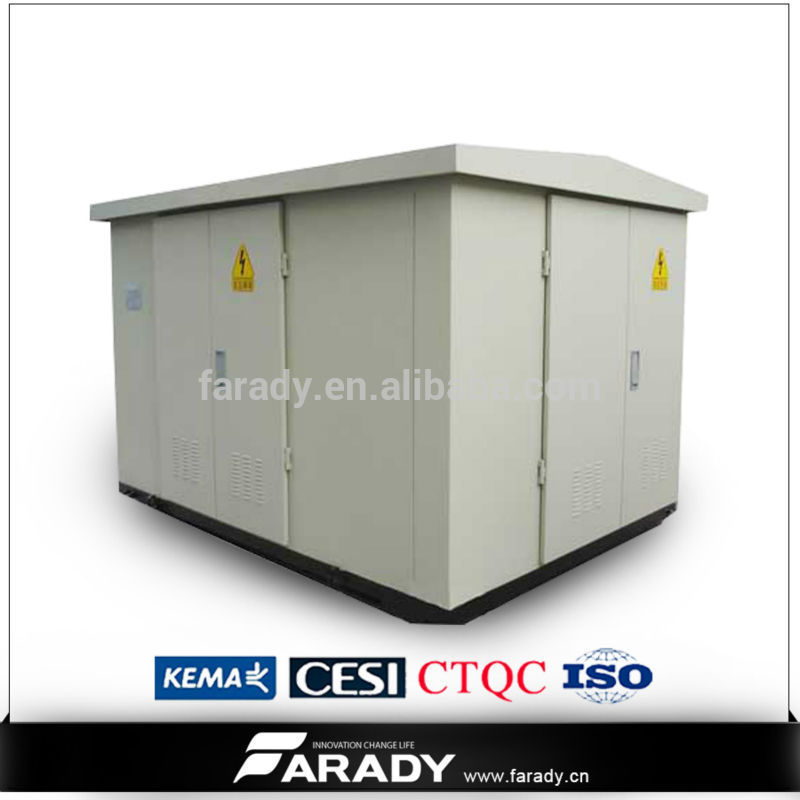

YBW series products is a kind of set of equipment which assembles the MV switch apparatus, transformer, LV distribution equipment together according to fixed connection scheme. This series substation is suitable for neighborhood unit, hotel, large-scale work site and high building that the voltage is 12kV /24kV/36kV/40.5kV, the frequency is 50Hz and the capacity is under 2500kvA.

Standards: IEC60076,ANSI/IEEE C57.12.00 ,C57.12.20 ,C57.12.90,BS171,SABS 780

++++Service condition

a) Both indoor or outdoor

b)Air temperature:

Maximum temperature: +40℃; Minimum temperature:-25℃

c) Humidity:

Monthly average humidity 95%; Daily average humidity 90% .

d) Altitude above sea level:

Maximum installation altitude: 2000m.

e) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc.

f) No frequent violent shake

Note: * Beyond those services condition should enquiry to manufacturer technical dept during order

Note: *The above parameter is only subject to our standard design, special requirement can be customized

++++ Main technical specifications

*Consult Farady Electric for availability of non-standard kVA sizes.

++++ Structure Characteristics

Two types of box type transformer substation,corridor type and non-corridor type,welded frame by excellent

Anticorrosive steel,hot-galvanizing steel base:

Box-type transformer substation has 3 rooms,HV cabinets,LV,cabinet,transformer cabinet,layout may be customized

two layer roof with air inside to prevent temperature rising efficiently.

natural air cooling,optional forced air cooling,optional automatic anti-congeal equipment.

difference type of load switch and fuse combination to protect the transformer

.terminal power supply,ring supply and double power supply welded body of LV cabinet ,screen type nameplate

We are professional manufacturer of power transformer,electrical transformer,step voltage regulator,oil immersed and cast resin dry type transformer

ISO9001&14001 approval company

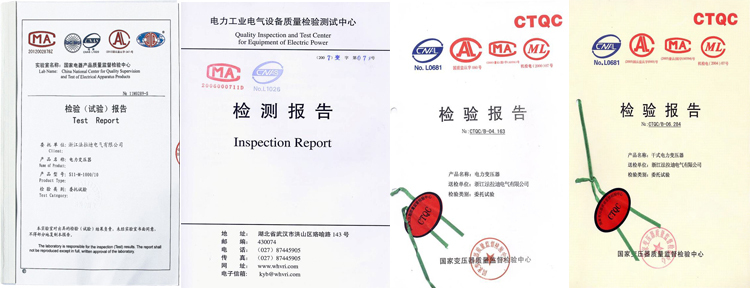

Each series transformer we manufacutured was type tested

Professional technical team ensure our product was always advanced amony your competitor

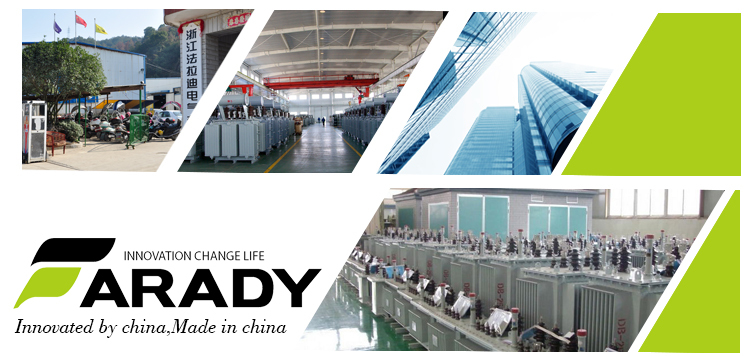

Farady is located in Liushi of Yueqing, a costal city, which is often referred as the Electric Products Capital in China. Boardered by the State road, highway, and high-speed railway, close to
SHANGHAI/NINGBO/WENZHOU sea ports, and the Yongqiang International airport in Wenzhou, we enjoy a great advantage in transportation which thus can guarantee our clients the fast shipping.
Our main products include: step voltage regulator up to 35kV, conventional and complete self-protection transformer, single phase pad mounted transformer, withstand high overload transformer, capacity-adjustable transformer, amorphous transformer, energy-saving transformer, etc green transformer. All the products of ours have passed the national laboratory type test, which also wins the STATE GRID of China as one of our contractors.

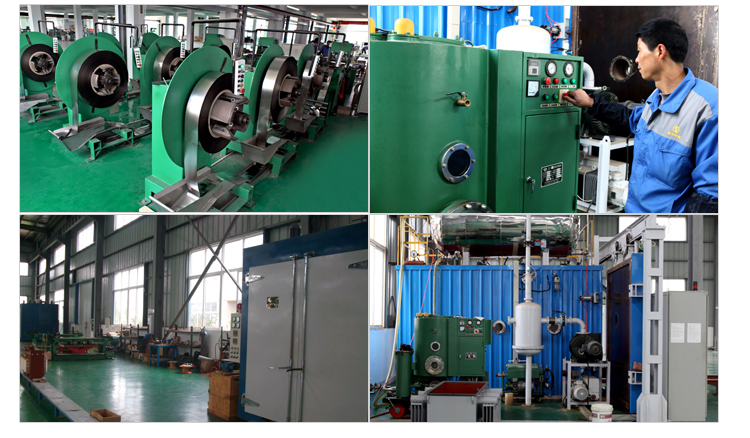

The company is equipped with the state-of-the-art technology, sophisticated facilities, ISO9001 quality management system certification and ISO14001 environment certification approval.
We also enjoy the Certification of New Hi-tech Enterprises, National Spark Program, and own more than 70 item transformer patents, with which our products are not only popular in the domestic market but also exported to Southeast Asia, South America, Africa and the middle east.
Today, boasting the value of products specialization, brand management, and business globalization, with the sprits of pragmatism, innovation, efficiency, and responsibility, Farady Company is dedicated to become the biggest name in the international business of transformers in China, and contributes its share to the transformation from the Made in China into the Invented in China.

Long time shipment & Seaworthy wooden box

Wooden package optional:

1,choose one unit/ wooden box

2,choose 2unit/ wooden box to save cost

1,Quick response in before sales period help you got order

2,Excellent service in production time let you know each step we made

3,Reliable quality solve you aftersale headache

4,Long quality waranty ensure you can buy without hesitate

1,Why I buy Farady transformer

After compare quality,delivery and price you will find out answer

2,How is your farady electrical transformer waranty

12+12month after manufacture date,you total got 2 year waranty

3,Is that possible to be one of distributor of Farady Electric in my country

Yes,once you action is fast enough

4,More question......

Feel free to contact you you will get immediately reply
