10kv Outdoor Electrical Substation

is used for 6-24KV 50HZ distribution system to act as a small capacity independent substation.

Technical Feature

  • Anhui, China (Mainland)
  • HK
  • GB17476
  • substation
  • GB17476
  • ISO9001
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~50

PRIMARY PARAMETERS

Place of Origin
Anhui, China (Mainland)
Brand Name
HK
Model Number
GB17476
Product Name
substation
Type
GB17476
Certificate
ISO9001
Color
Grey
Standard
IEC60439
Application
Industrial
Material
Steel
Rated Voltage
380V
Name
Substation
Rated current
630A

DETAIL DESCRIPTION

Product Description

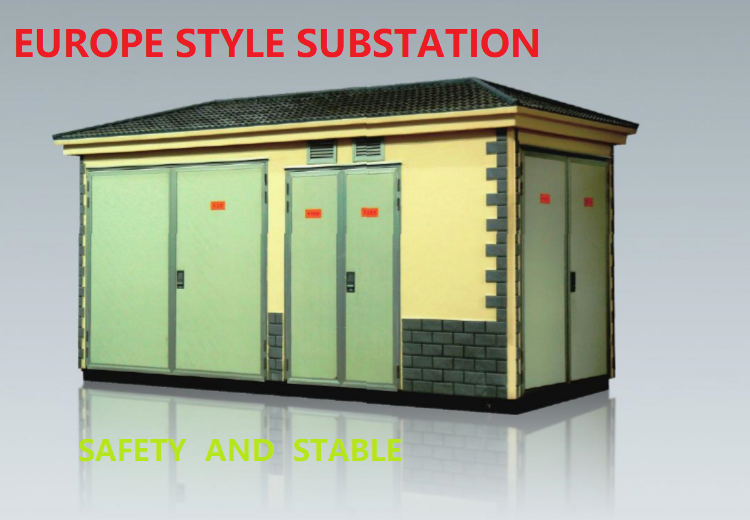

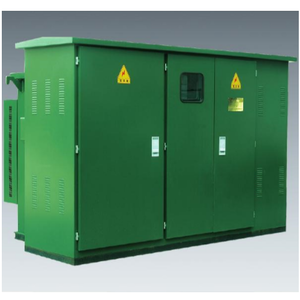

10kV  Box-Type Substation

YB-10kv  box-type substation is used for 6-24KV 50HZ distribution system to act as a small capacity independent substation. When acting as 6-24 / 0.4KV step-down station, the general capacity of it is below 1250KV, which is suitable for factories, mines, ports, stations, residential quarters and underground facilities and other places. It has advantages of small area and flexible movement, which can go deep into the load center and adjust the radius of power supply and save energy. So it is popular with users.
Product Features
The optional components of high pressure part include Schneider SM6 / SC6 / ABB's SafeRing, vacuum circuit breaker cabinets and vacuum load switchgear. High pressure part can be big or small size, even be a switching station.
Low pressure part can be divided into panel type, fixed type and drawer type.
Normal Using Conditions
Altitude is not more than 2000m.
Ambient Temperature:-30℃~+40℃
Relative humidity:<90%
Wind speed is not more than 35 m/s

Detailed Images
Certifications
Partner
Logistics
