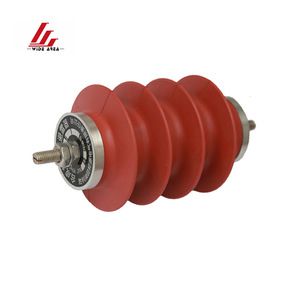

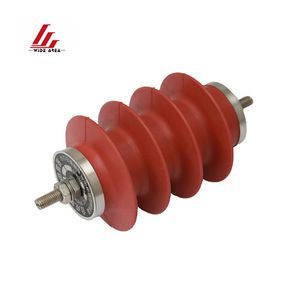

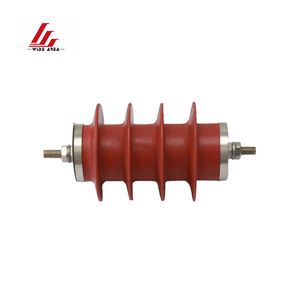

6KV Outdoor Advanced Lightning Arrester in Electric Substations

The maximum wind speed does not exceed 35m / s.

Technical Feature

  • Shandong, China (Mainland)
  • Wide area
  • HY5WZ-10/27-98
  • Red
  • 10kv
  • 6kv
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$13~15

PRIMARY PARAMETERS

Place of Origin
Shandong, China (Mainland)
Brand Name
Wide area
Model Number
HY5WZ-10/27-98
Color
Red
Rated voltage
10kv
System voltage
6kv
Material
zinc oxide
Creepage distance
287mm
Type
outdoor lightning arrester
Application
power system
Certificate
ISO9001
OEM
Offered

DETAIL DESCRIPTION

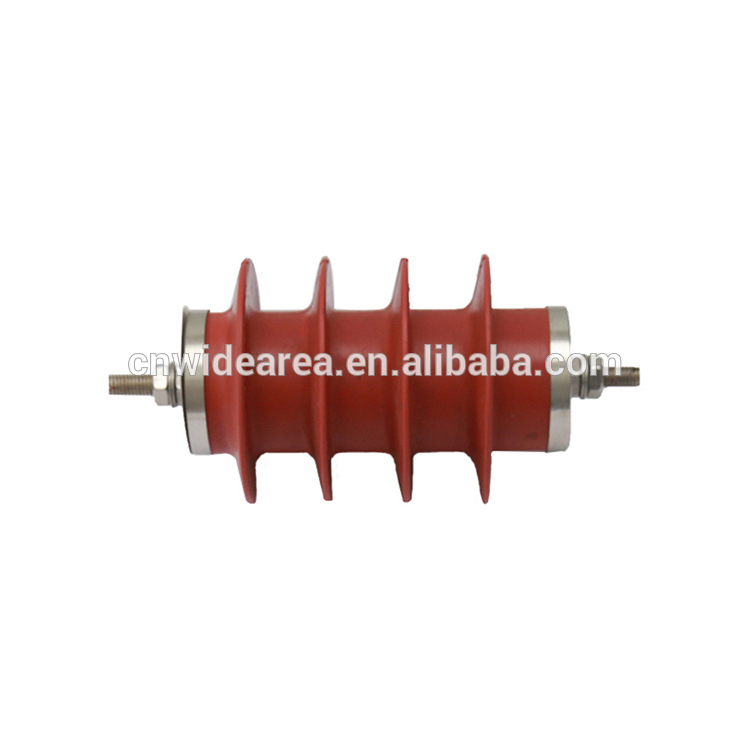

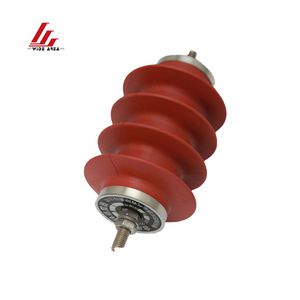

6KV Outdoor Advanced Lightning Arrester in Electric Substations

Product Description

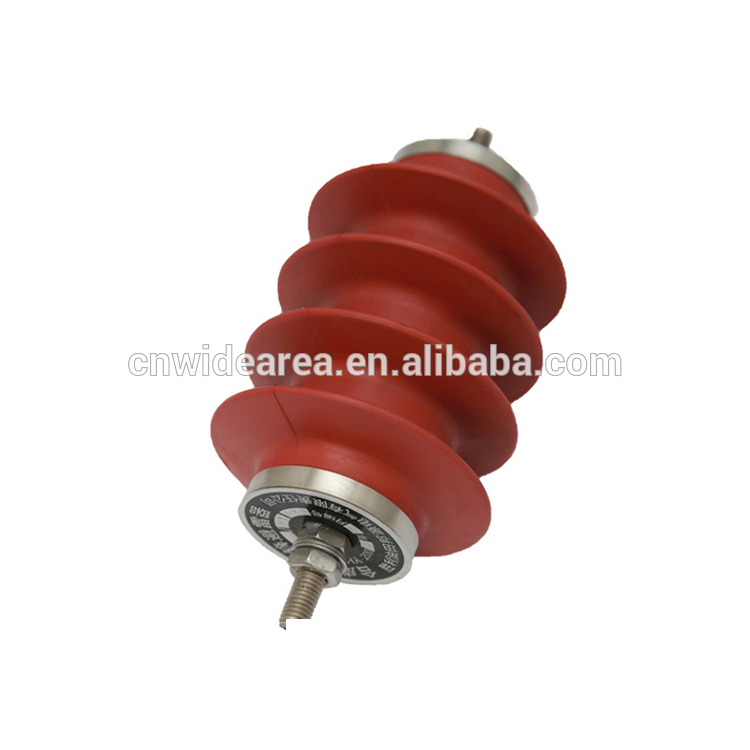

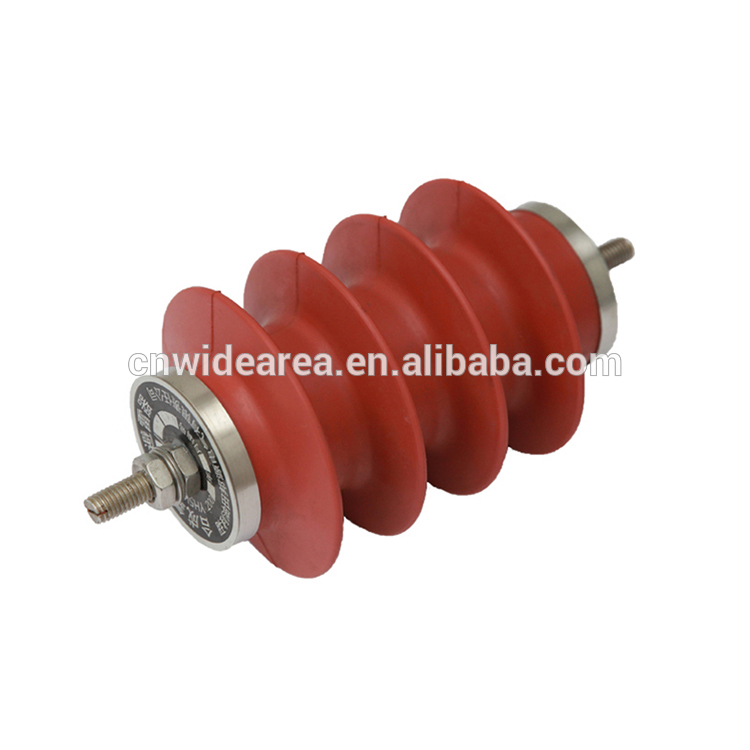

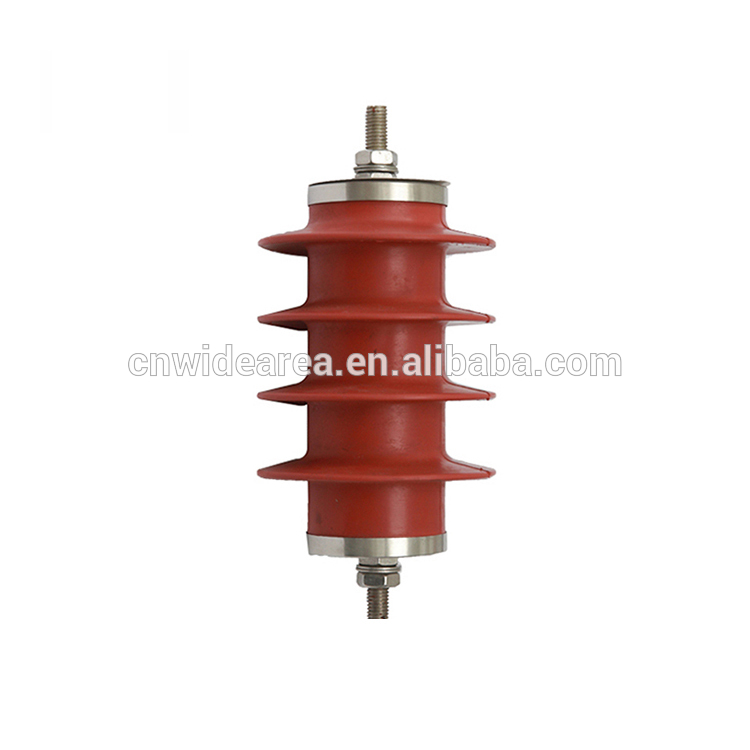

Polymeric metal oxide arrester(PMOA)HY5WZ-10/27



Applicable technical conditions:

A. Applicable to indoor and outdoor;

B. Ambient temperature -40 ℃ ~ + 40 ℃;

C. Altitude does not exceed l000m;

D. Power frequency is not less than 48Hz, no more than 62 Hz;

E. The working frequency voltage applied to the arrestor should not exceed the continuous operating voltage of the arrester (no gap type).

F. Earthquake intensity is 8 degrees and following areas;

G. The maximum wind speed does not exceed 35m / s.



Main technical parameters

Model

Nominal system voltage

Rated voltage

Continuous operation voltage

DC 1mA reference voltage



kV

2mS square wave flow capacity



A

Lightning impulse current residual

Steep wave impulse current residual



switching impulse-current residual voltage

creepage distance

kV (Valid value)

kV (Peak)

mm

HY5WZ-10/27

6

10

8

14.4

200

27

31

23

287




Related Products

.jpg

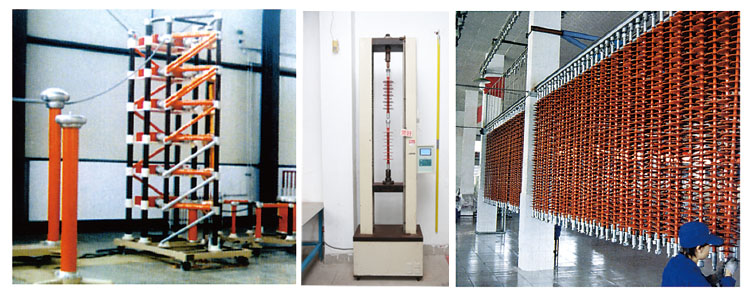

Our Inspection Equipment

 .jpg

Production process

PRODUCTION PROCESS



.jpg

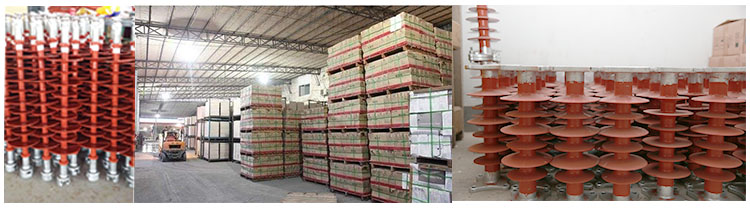

Packaging & Shipping

.jpg

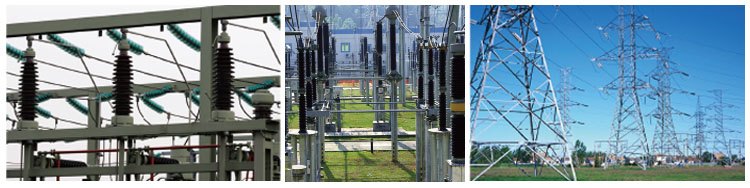

Application

.jpg

Company Information

Comapny Over View

       ShanDong Wide Area Technology CO., LTD was established in February, 1 9 9 9. Located in Dongying High-tech Industrial Development Zone of Shandong Province. The company covers an area of 67000 square meters. The registered capital is 60 million RMB.  Currently, we have 12 subsidiaries, 5 research centers and 1 office.

      The company's business covers three major areas, which including industrial automation control, information communication and software development. The company's products include integrated automation system of substation, power integrated monitoring system, video surveillance system, insulators and arresters, intelligent management system for oil well production, real time data center of industrial production, etc.
